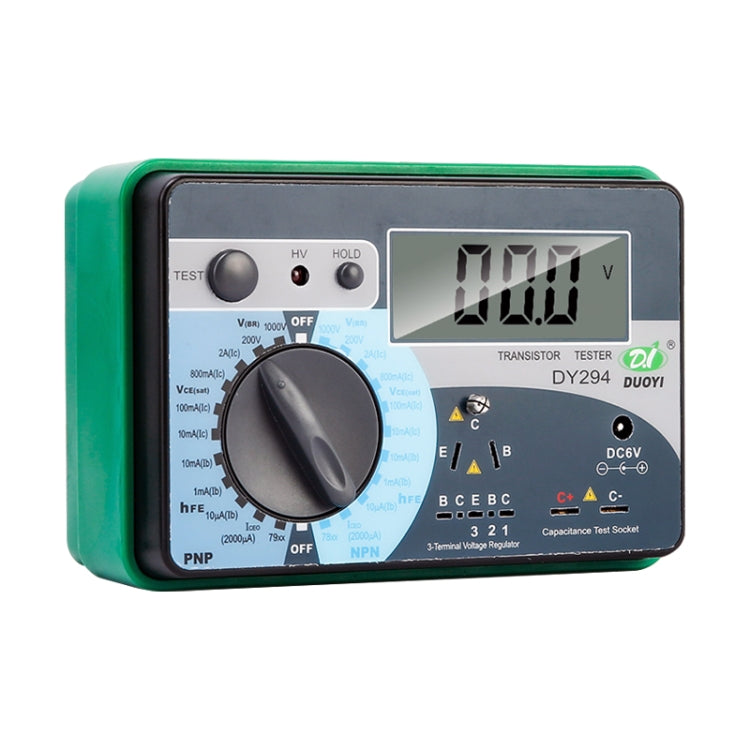

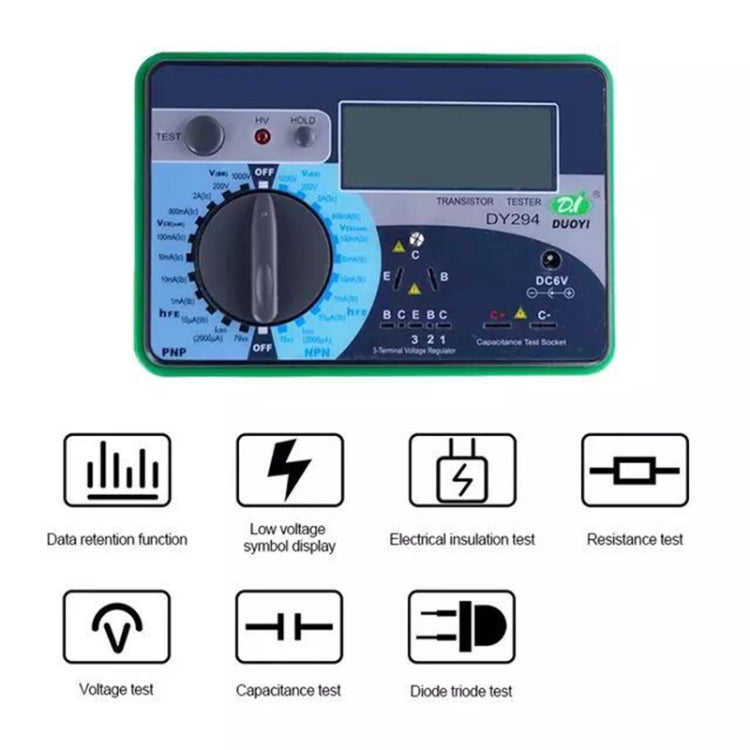

DUOYI DY294 Multifunction Digital Transistor AnalyzerTester, DY294
- Regular Price
- $36.64
- Sale Price
- $36.64
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
Ships from our overseas warehouse
Delivery in 10 to 20 business days after shipment. Tracking can take 5 to 7 days to show its first update. Shipping policy
60-Day Returns
Full product refund on unused items. Return policy.

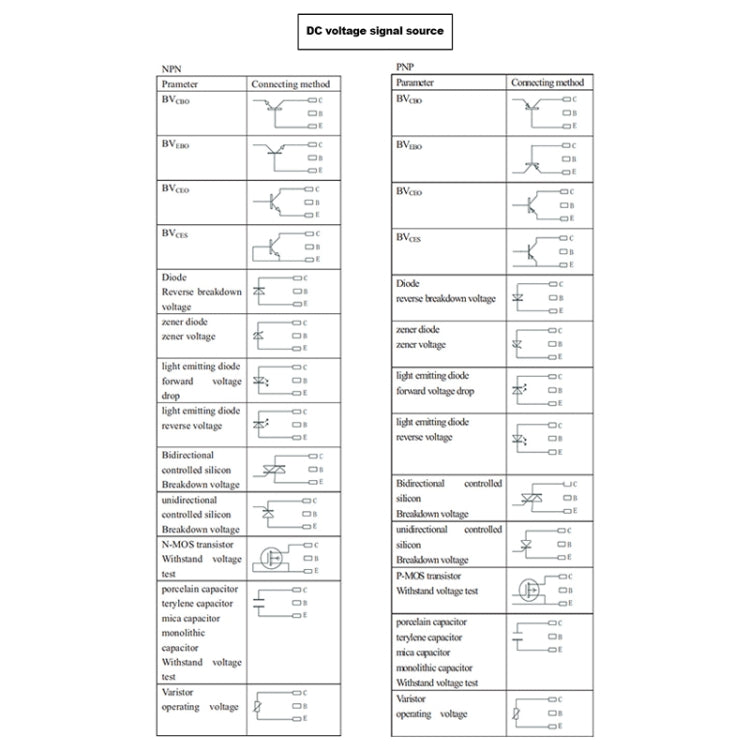

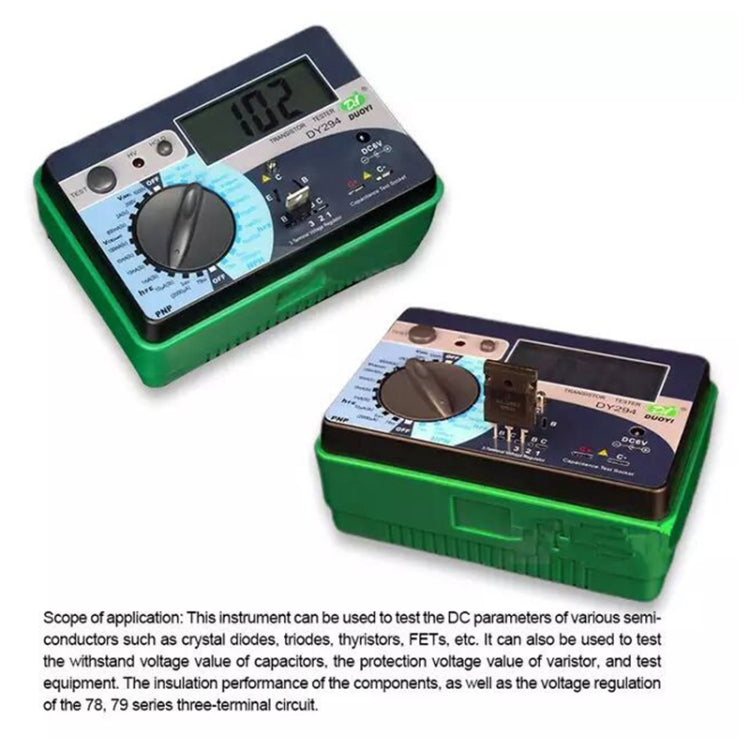

1. It is mainly used for testing the DC parameters of manifold semiconductors such as diode, transistor, controlled silicon and field effect transistor.It also can be used to test the with stand voltage of capacitor, protection voltage of varistor and isolation of electrica.

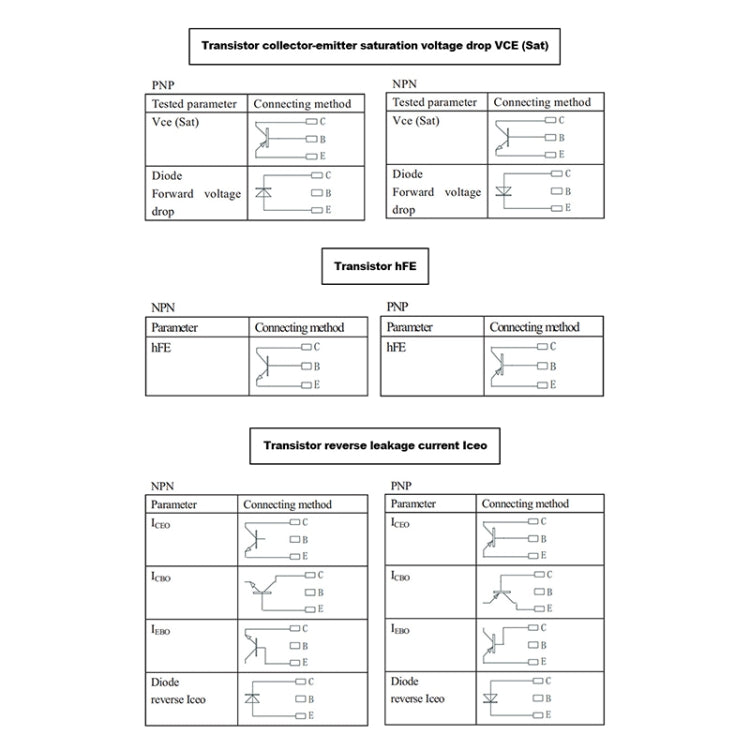

2. Measuring forward voltage, reverse voltage, forward saturation voltage drop, amplification factor, reverse leakage current of various crystal diode, audion, silicon controlled rectifier(SCR), field effect transistor(FET).
3. Measuring rated working voltage of chemical capacitor, terylene capacitor, capacitor, Leaded multilayer ceramic capacitor, high voltage lacker.
4. Measuring protection voltage of varistor.
5. Data hold, low battery warning.
2. Measuring forward voltage, reverse voltage, forward saturation voltage drop, amplification factor, reverse leakage current of various crystal diode, audion, silicon controlled rectifier(SCR), field effect transistor(FET).
3. Measuring rated working voltage of chemical capacitor, terylene capacitor, capacitor, Leaded multilayer ceramic capacitor, high voltage lacker.
4. Measuring protection voltage of varistor.
5. Data hold, low battery warning.

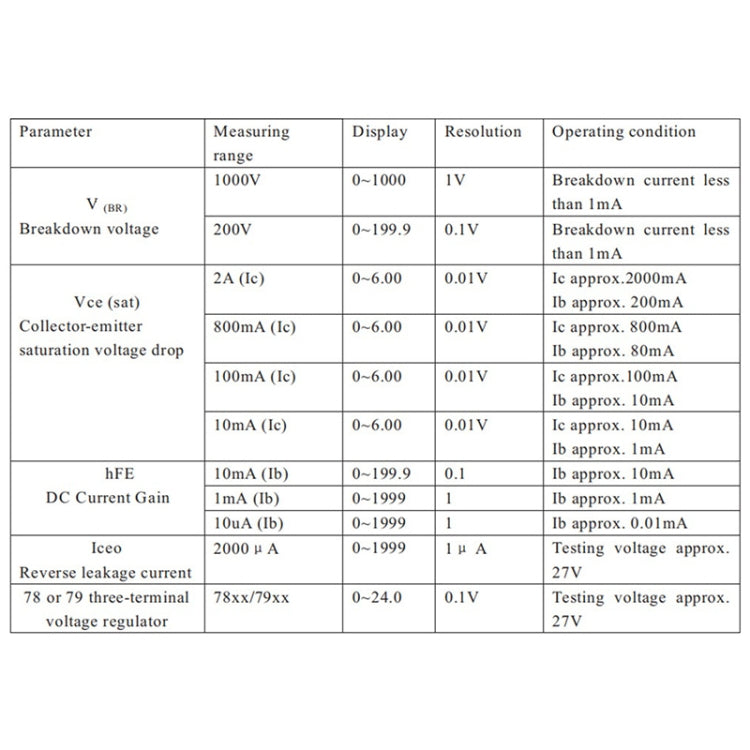

Specification:
