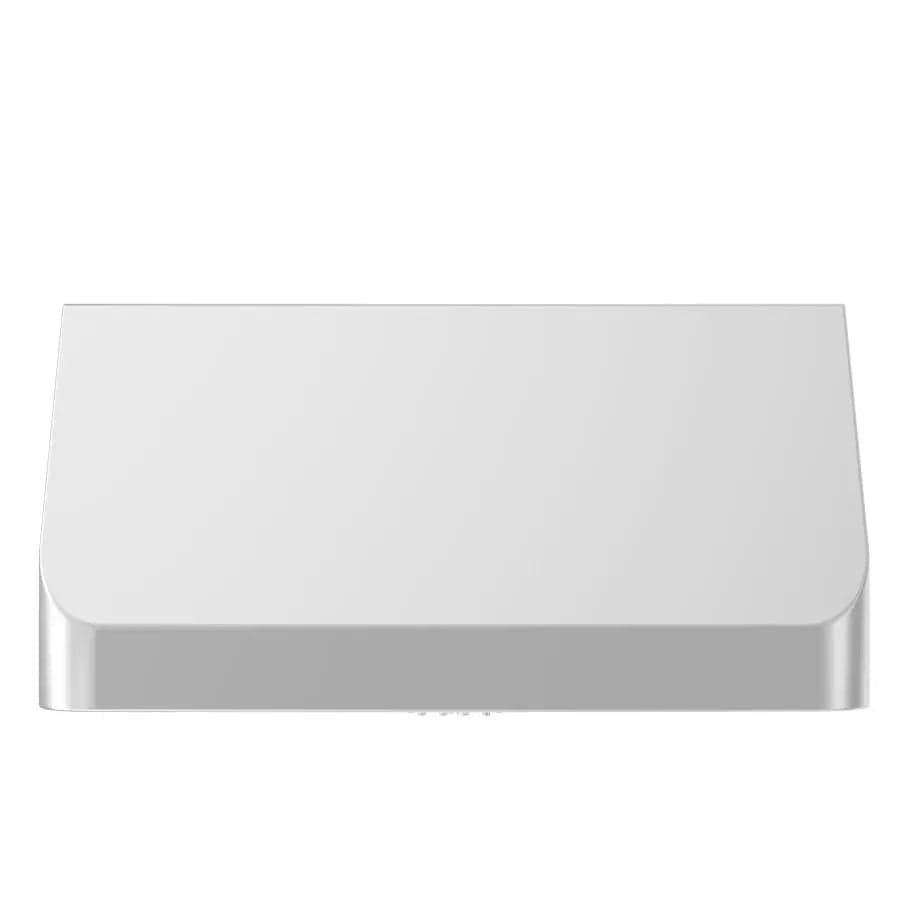

ZLINE 60" UNDER CABINET RANGE HOOD (520-60)
- Regular Price
- $2,039.99
- Sale Price
- $2,039.99
- Regular Price
- $2,399.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
This is the ZLINE 60" UNDER CABINET RANGE HOOD (520-60) (520-60). At a glance: 60" wide, up to 1300 CFM, 3-year manufacturer warranty.
60"wide
1300CFM max
3-yearwarranty
Why it stands out
- Convertible Venting – The hood can vent externally or recirculate (ductless) using charcoal filters, model RK, which are not included, to reduce odors.
- Push Button Controls – Push buttons set the fan speed and the lighting.
- The 4-speed fan control (1000/1150/1250/1300 CFM) lets you match airflow to what you are cooking.
- At its top setting of 1300 CFM, the fan moves a large volume of air out of the cooking area.
- Top Duct Connection – Ductwork attaches at the top for venting outside.

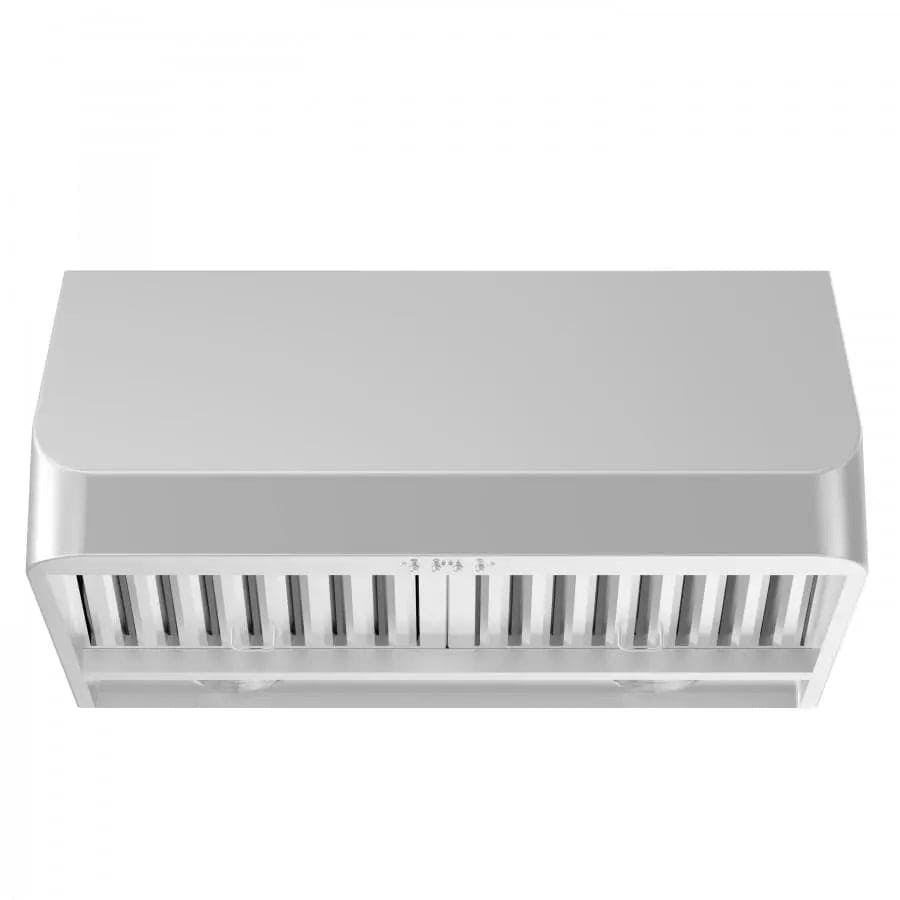

- Baffle Filters – Stainless steel baffle filters are dishwasher-safe.

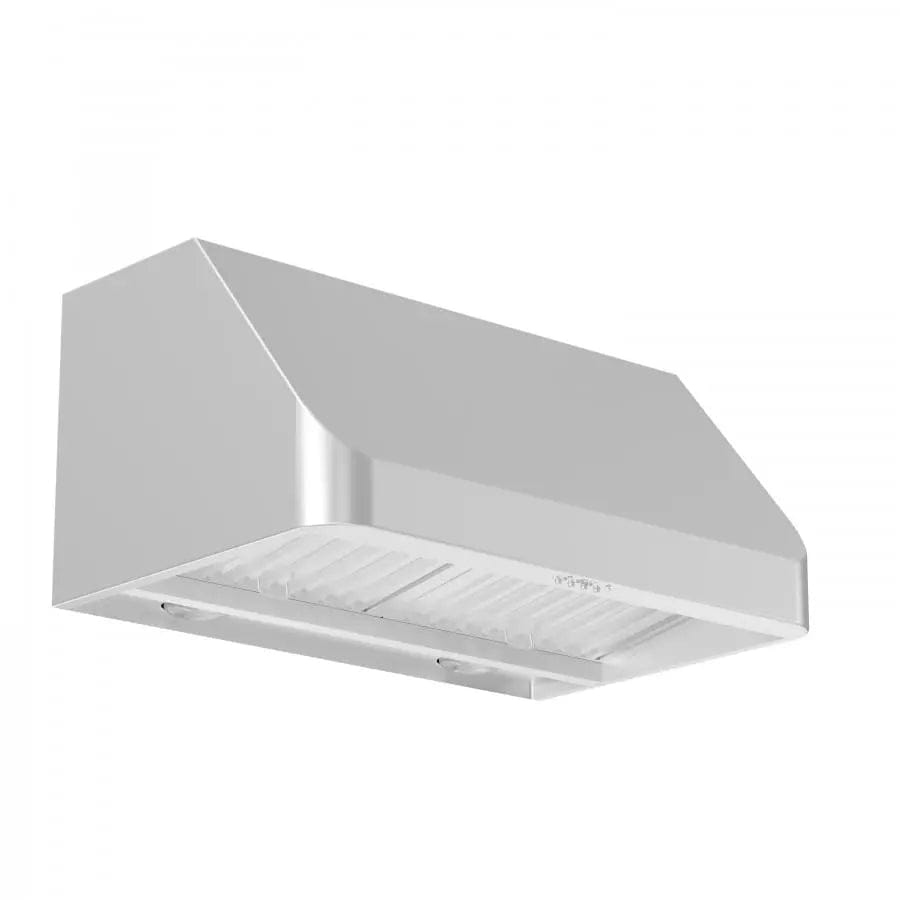

- LED Lighting – LED lights shine down on the cooktop.
More features
- Standard Duct Size – Fits standard round ductwork.
- Brushed Stainless Finish – The hood is made of brushed 430 stainless steel.
- Voltage Rating – 110V/60HZ
- Warranty Terms – 3-year parts warranty and lifetime motor warranty.
Key specifications
| Product Depth (in.) | 24 |
| Product Width (in.) | 59.75 |
| Product Height (in.) | 18.0 |
| Appliance Category | Under Cabinet Range Hood |
| Color/ Finish Family | Stainless Steel |
| Airflow (Q/L/M/H) | 1000/1150/1250/1300 |
| Motor | High Performance 1300 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Number of Speeds | 4 |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.) | 100 |
| Decibels | 48/55/63/65 |
| Duct Size | 8 |
| Voltage | 110 |
| Amps | 3.5 |
| Certifications and Listings | ETL Listed,CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Good to know
- 24", 2 Pc. Chimney - requires 520/523/527-60-2FTEXT.
- All ZLINE range hoods are ETL Listed and come equipped with everything needed to easily install and use.
- Extensions, Short Kits, Filters, and Crown Molding are non-returnable.
- Two-8" Outlets (Transition pieces to round ducting included).
- Hood is equipped with heat lamp, white heat lamp bulbs sold separately through local hardware store.
