ZLINE 60" Autograph Edition, 7.4 cu. ft. Dual Fuel Range, RAZ-WM-60-MB
- Regular Price
- $10,079.99
- Sale Price
- $10,079.99
- Regular Price
- $12,599.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.

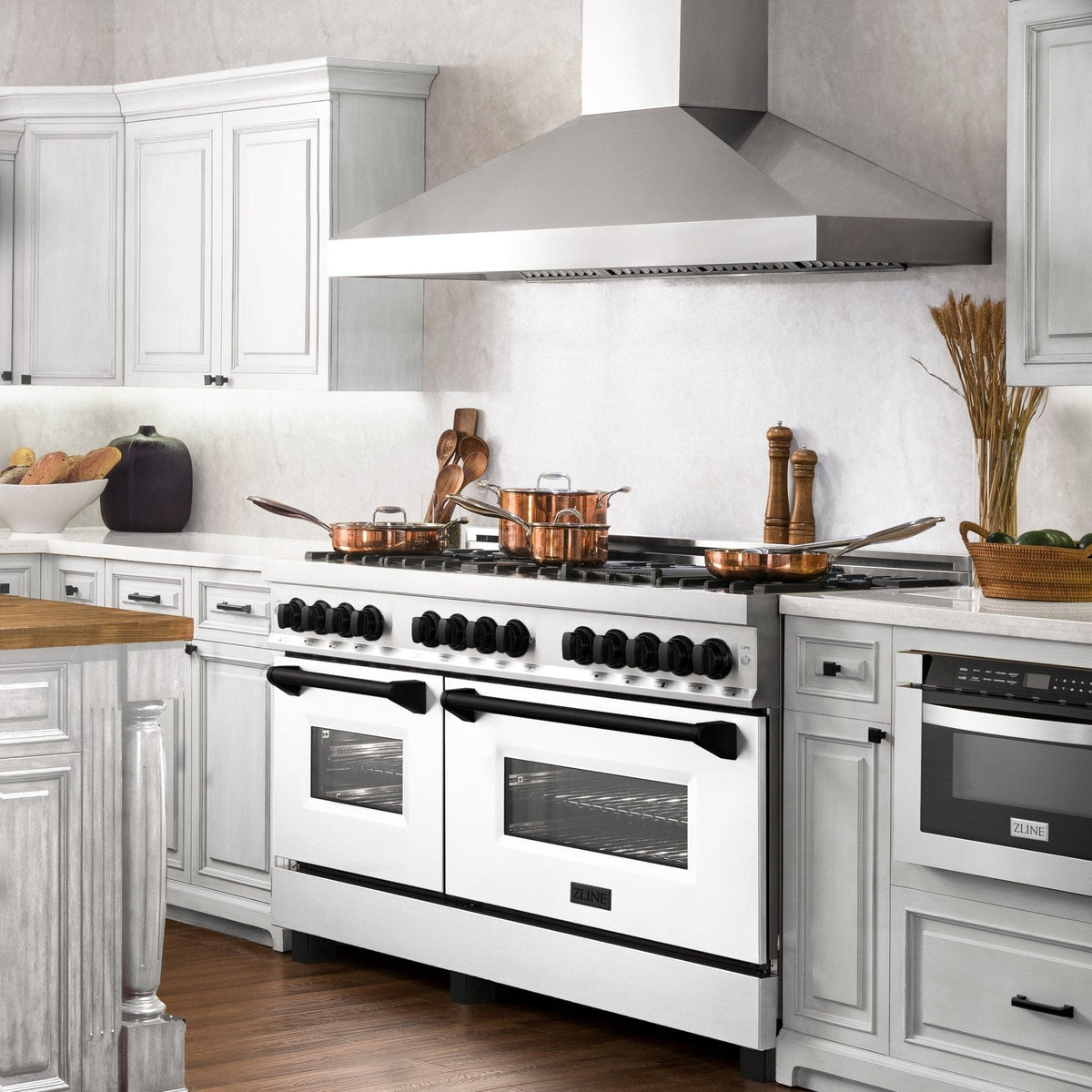

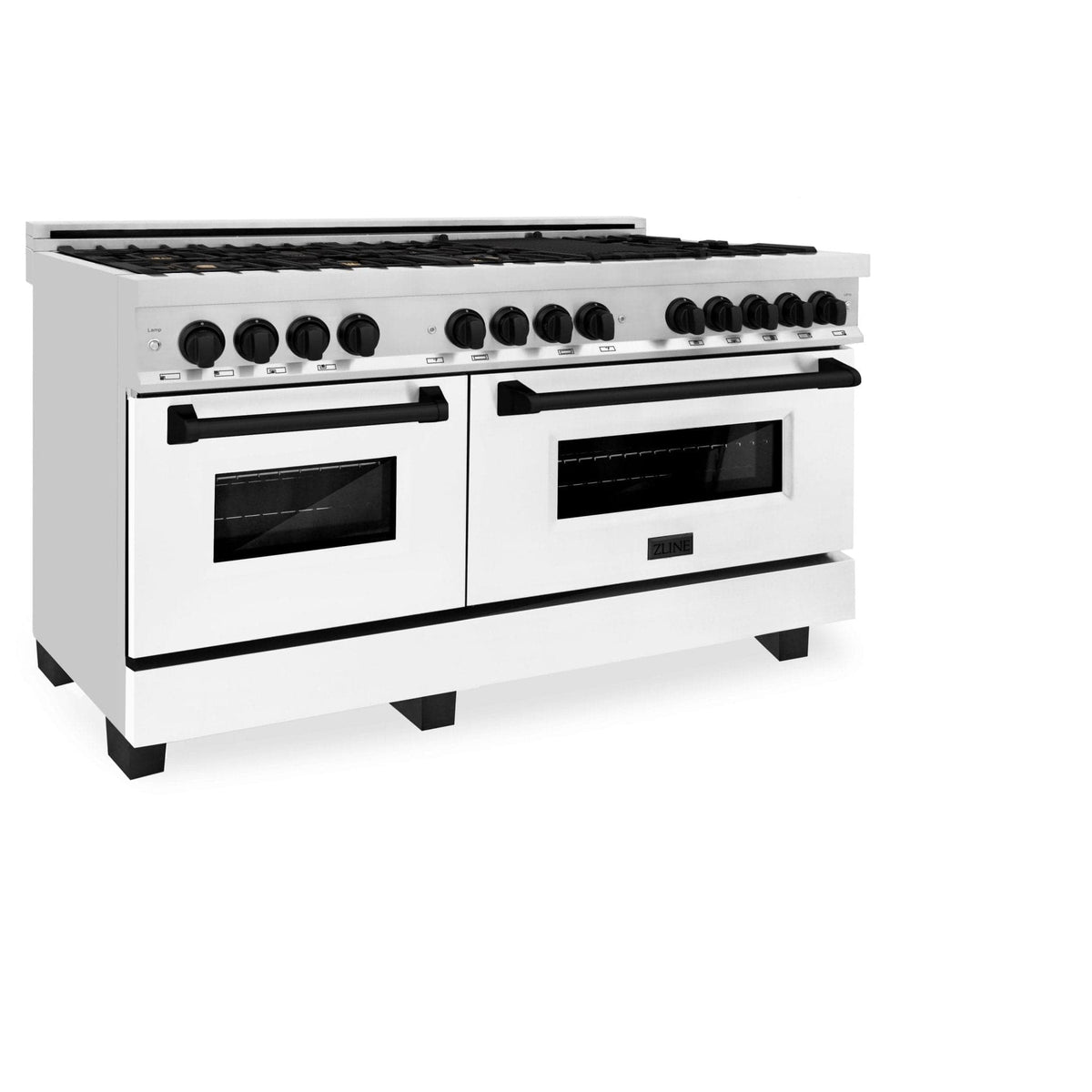

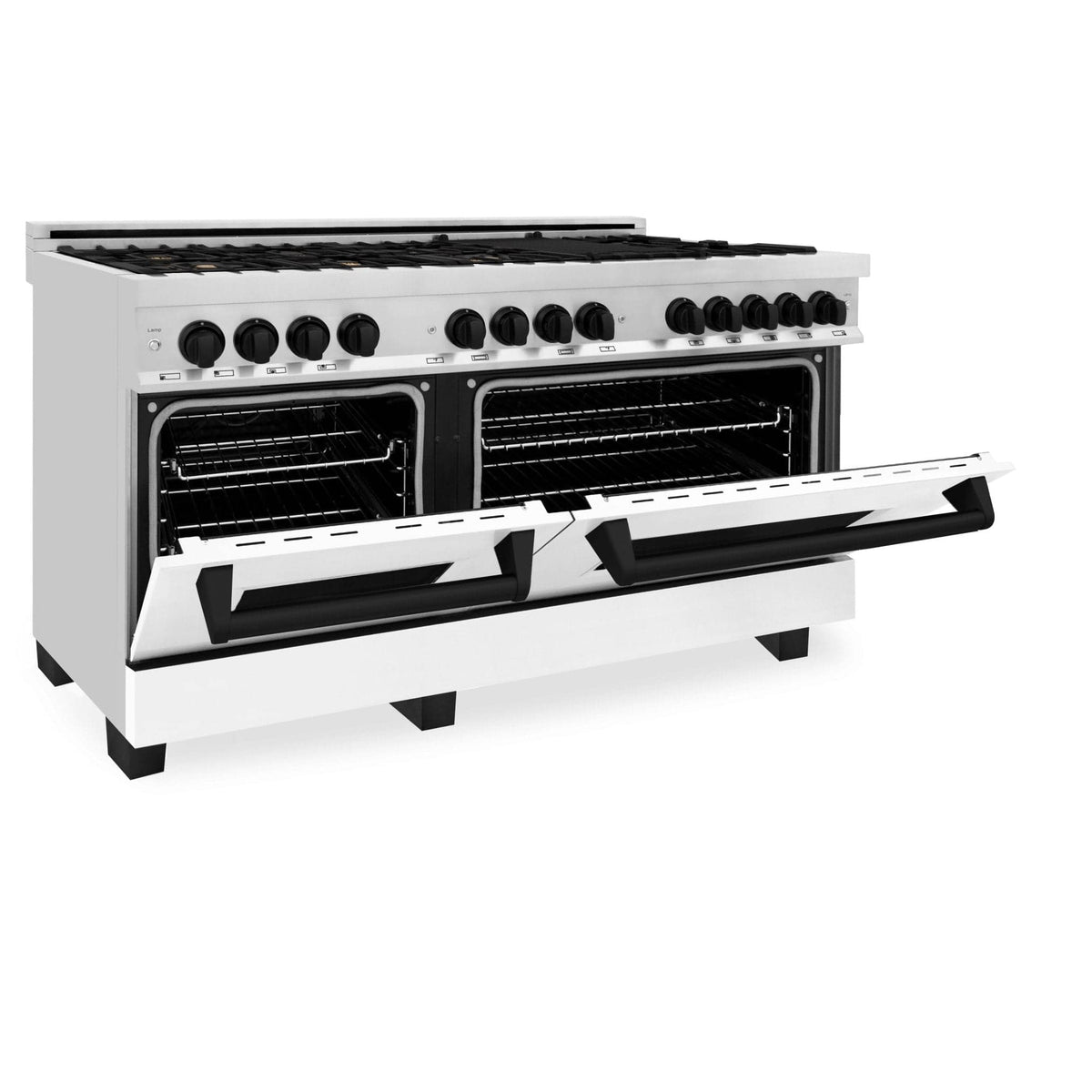

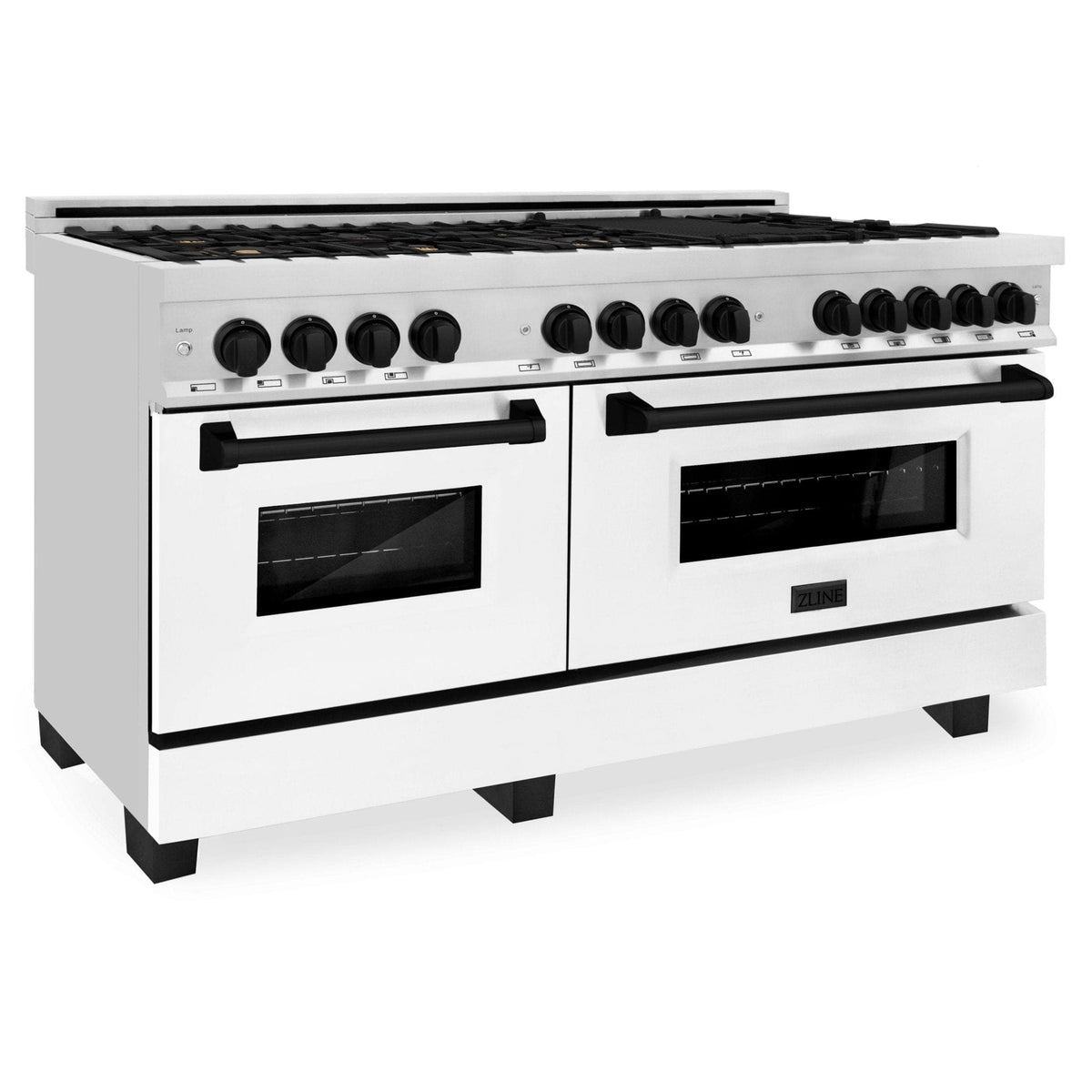

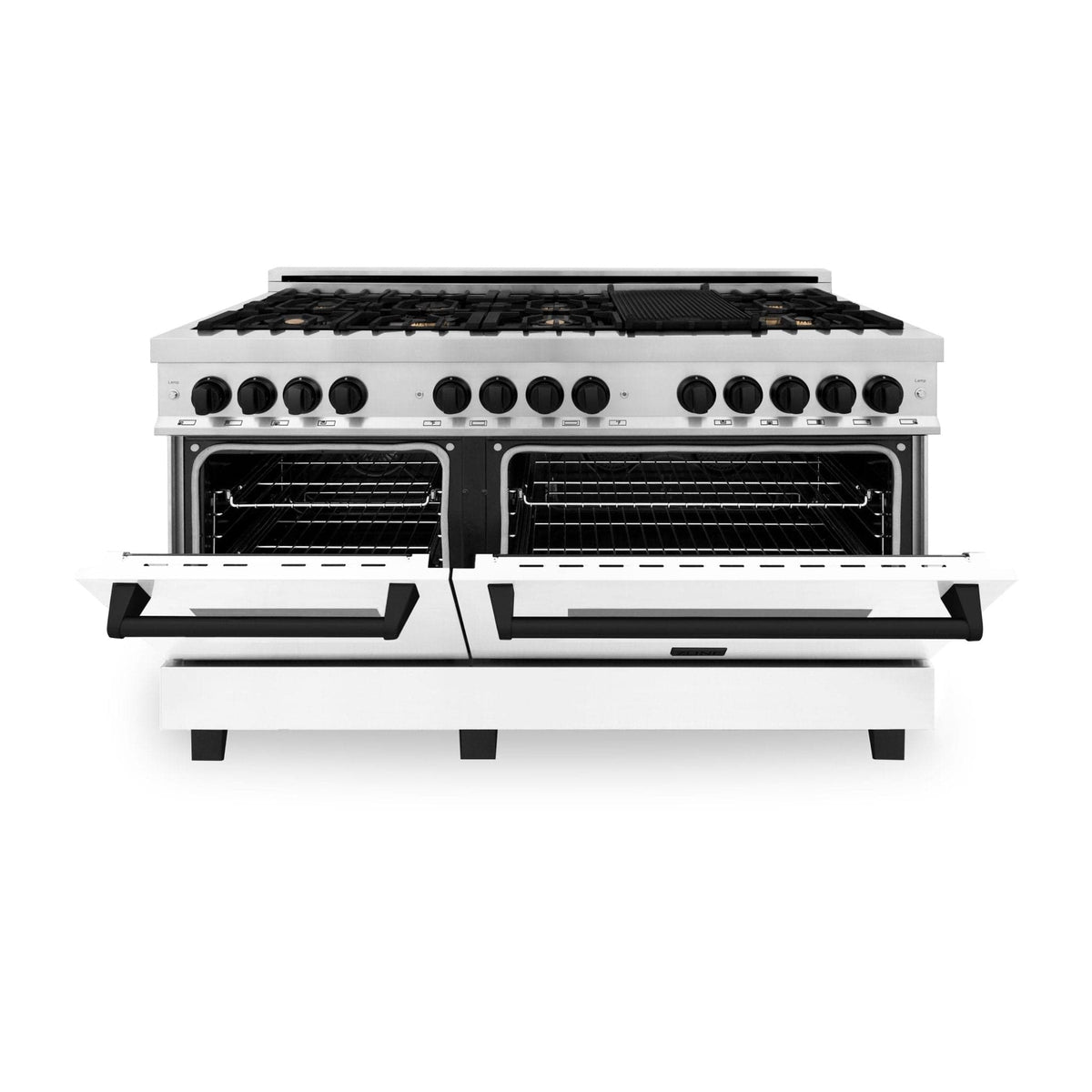

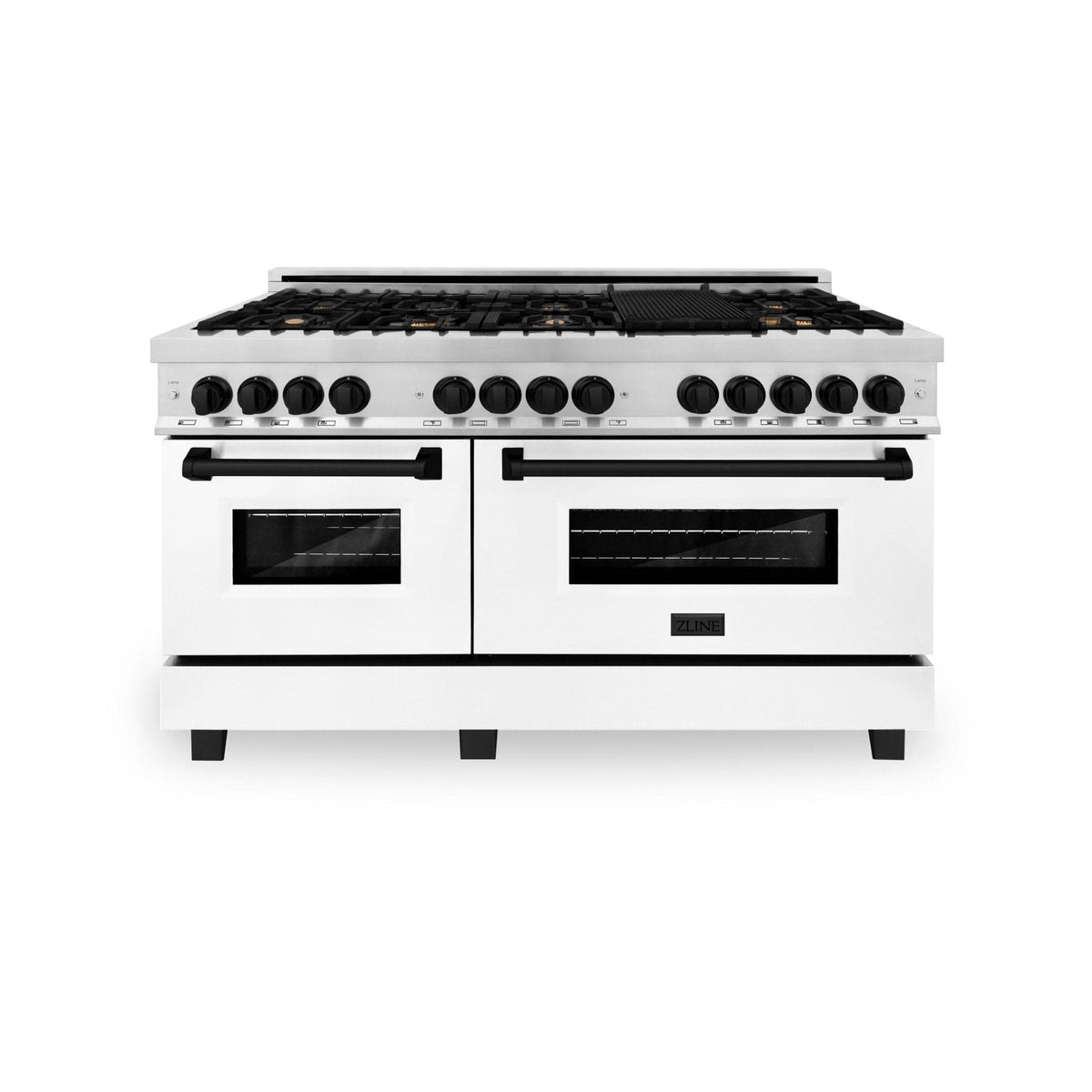

This is the ZLINE 60" Autograph Edition, 7.4 cu. ft. Dual Fuel Range (RAZ-WM-60-MB). At a glance: 60" wide, 103,000 BTU total burner output, 7.4 cu. ft. oven, 1-year manufacturer warranty. Highlights: Legacy Series; Matte Black Accents; Custom Door Finish.
60"wide
103,000total BTU
7.4cu. ft. oven
1-yearwarranty
Why it stands out
- Legacy Series – The Legacy Professional Range Series is the base of ZLINE's family-focused effort to offer attainable luxury.

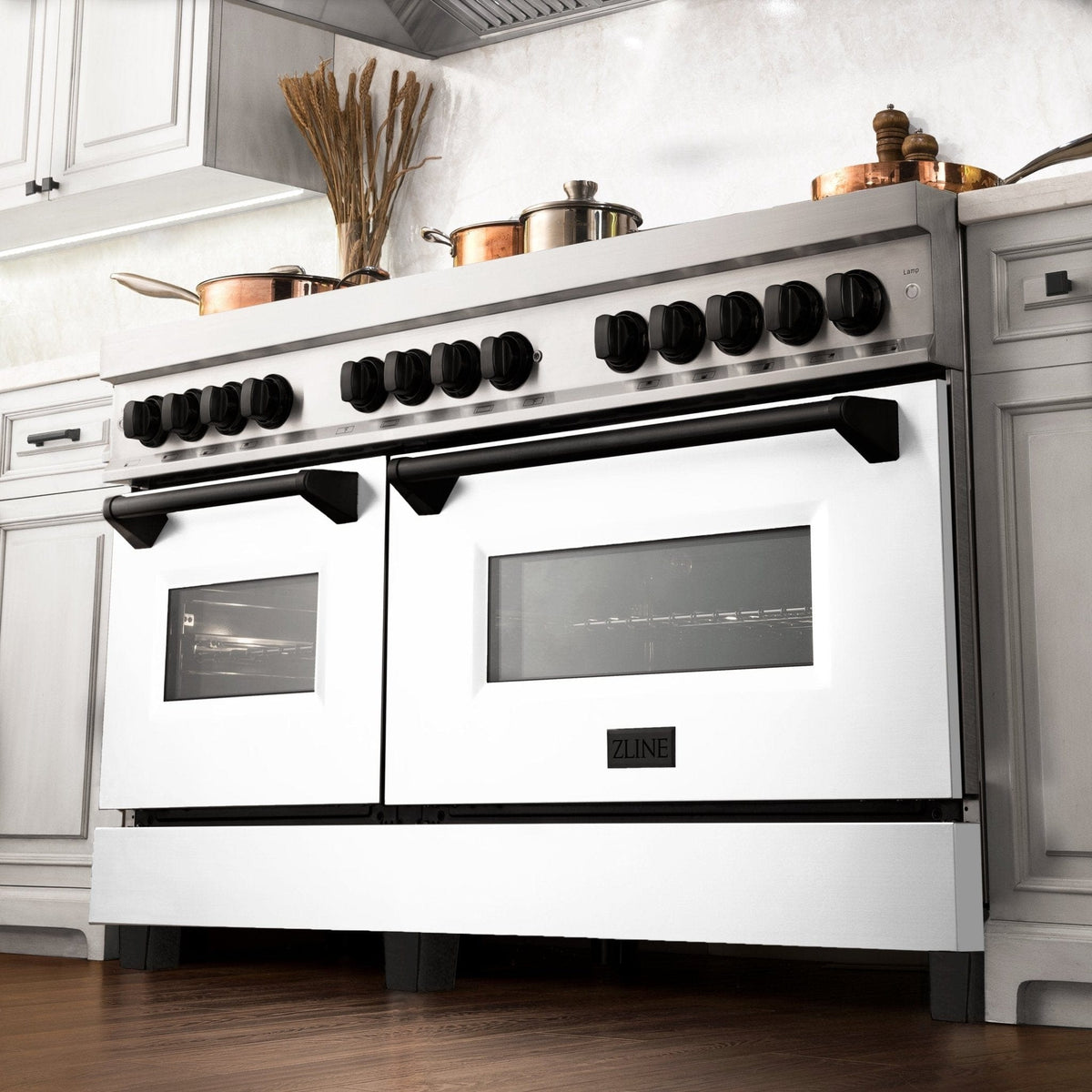

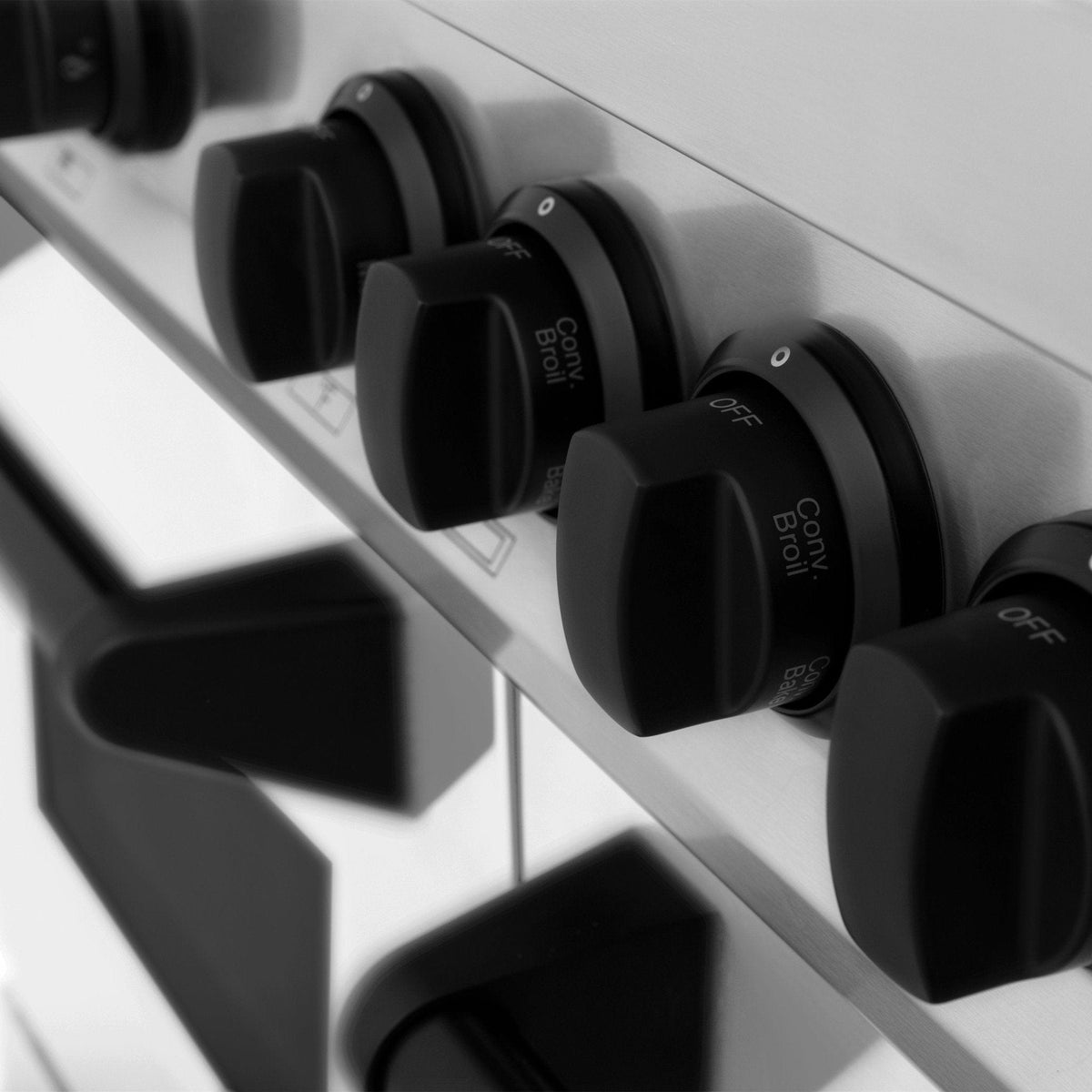

- Matte Black Accents – The Autograph Edition dual fuel range is customized with matte black knobs and handle.
- Custom Door Finish – This Legacy Dual Fuel Range has 2 White Matte oven doors.
- Gas Cooktop, Electric Ovens – Dual fuel cooking pairs a gas cooktop with 2 electric convection ovens for even heat.

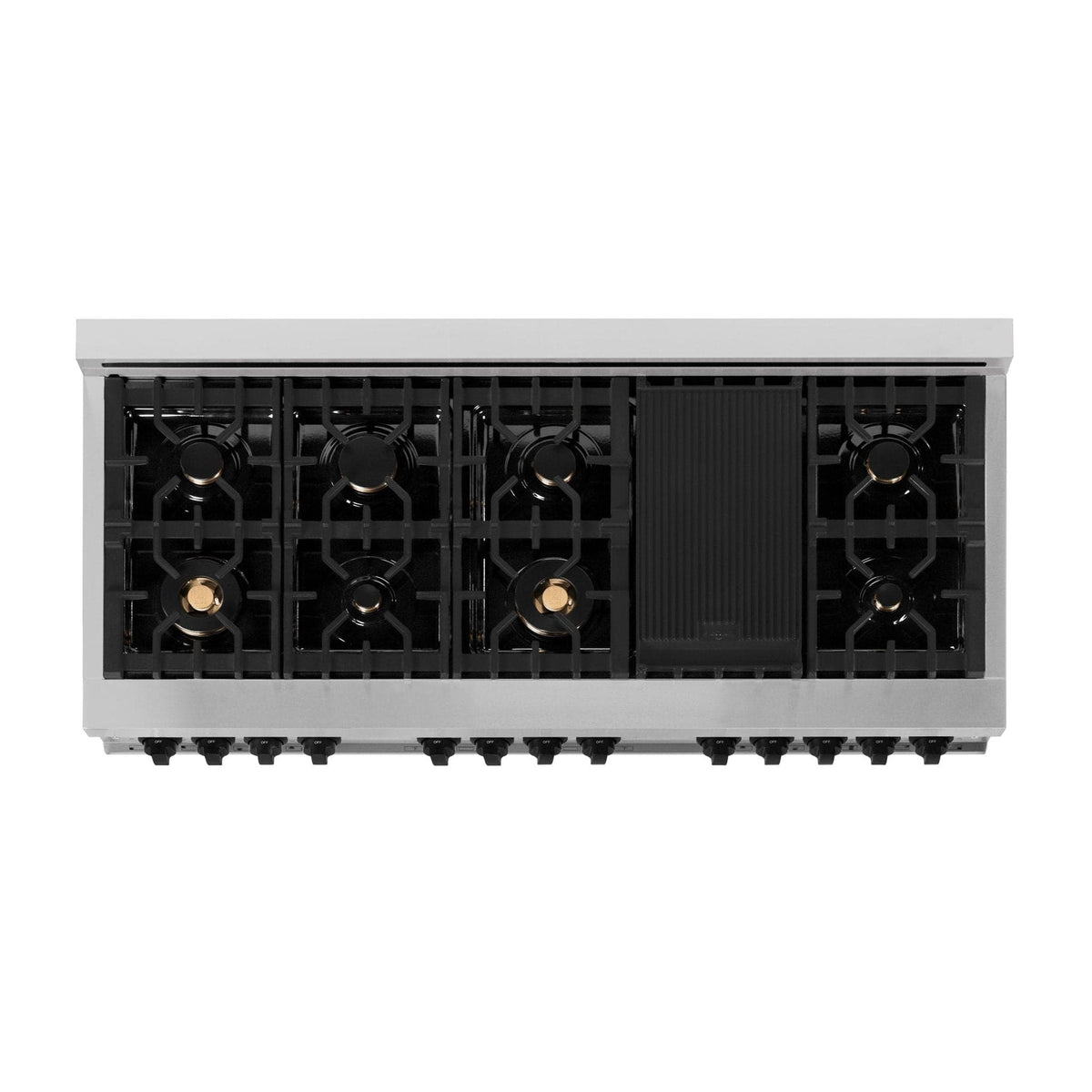

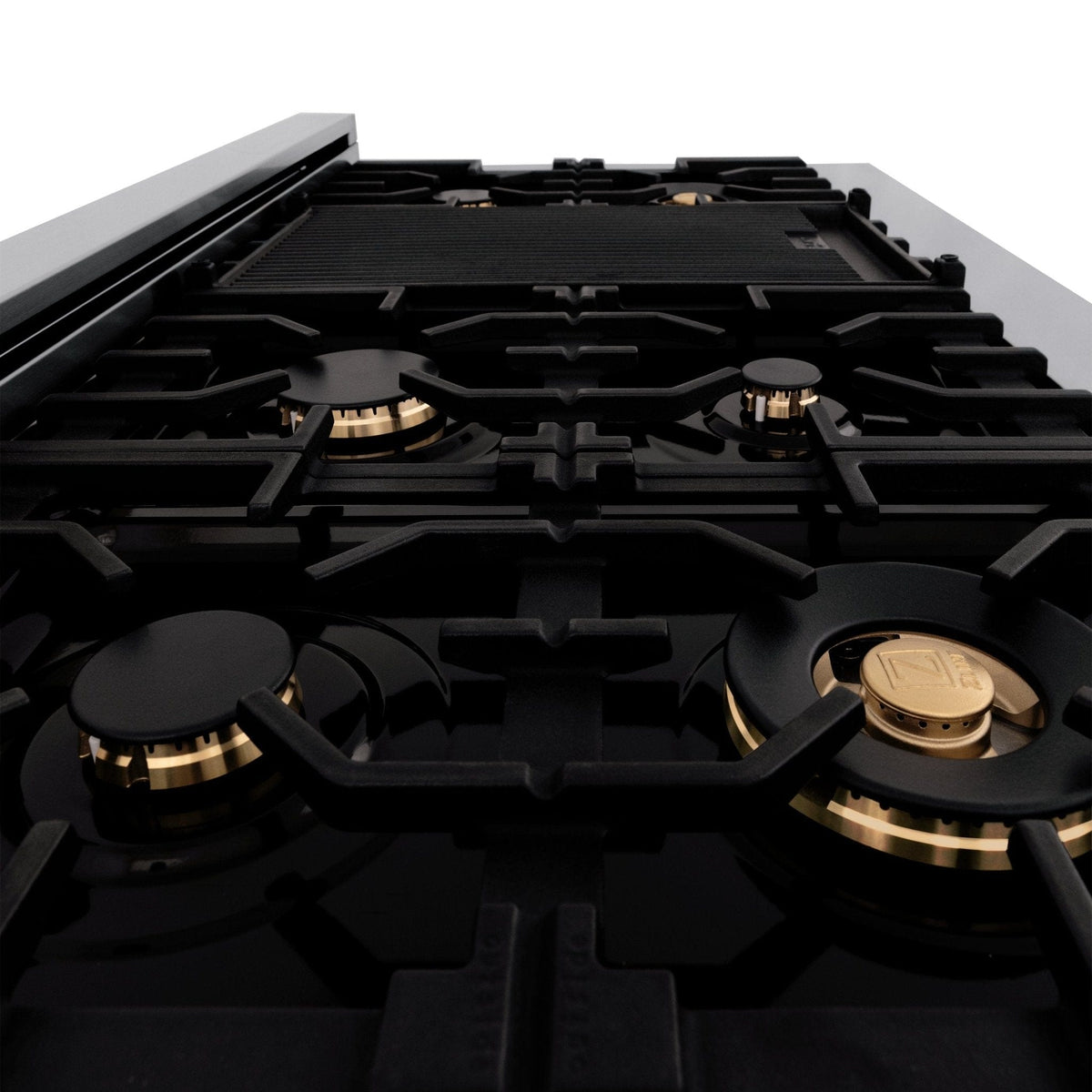

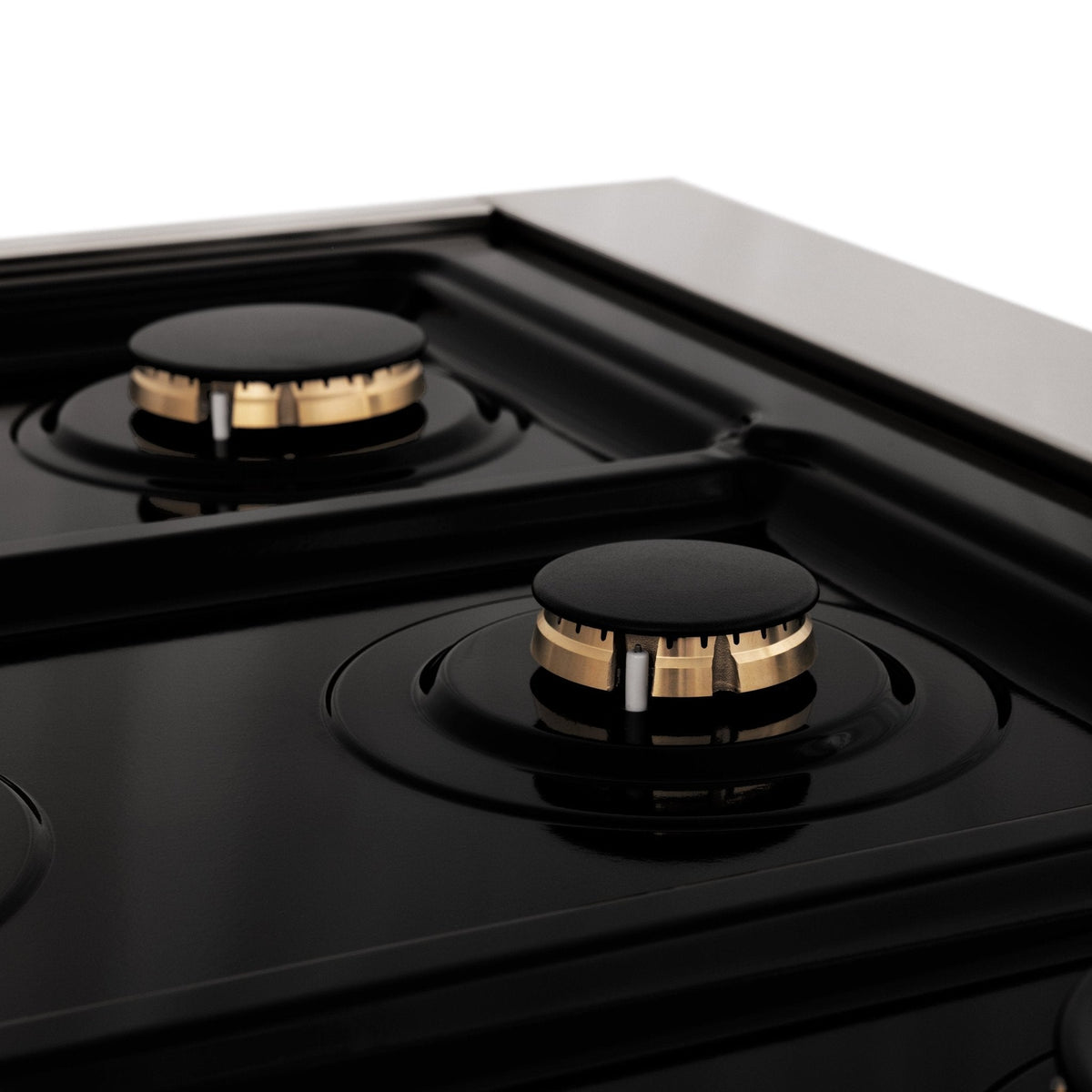

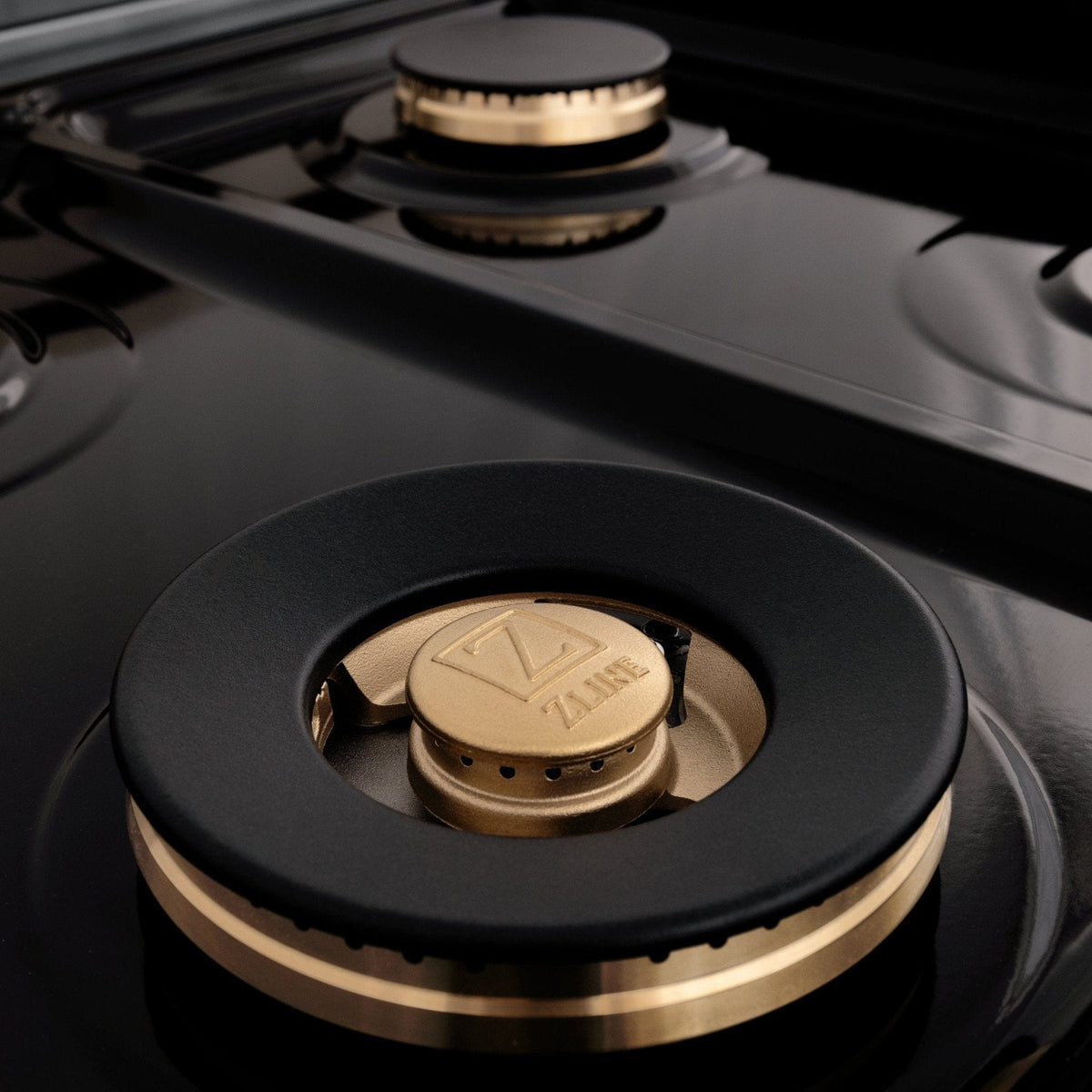

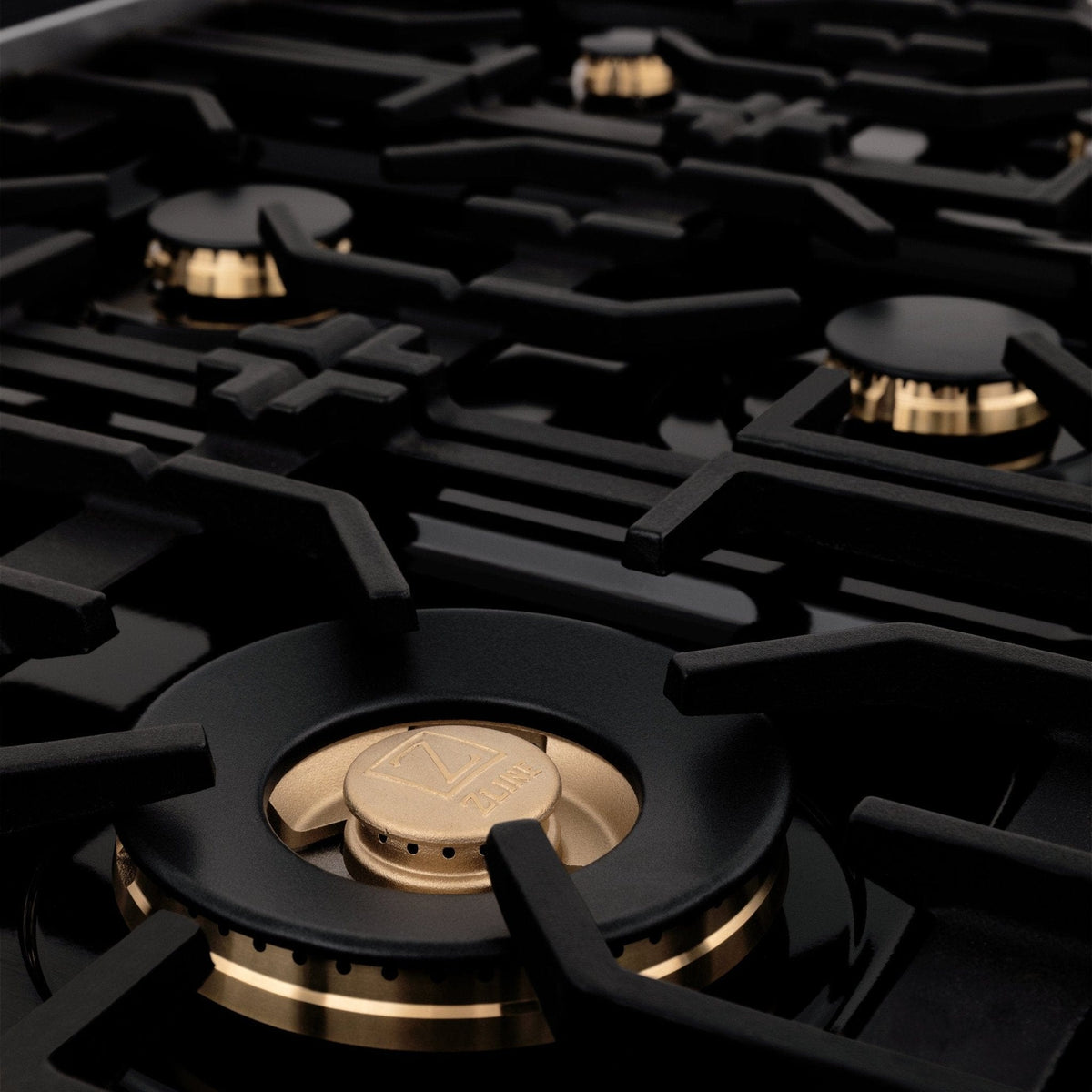

- Nine Sealed Burners – The gas cooktop has 9 hand-cast Italian sealed burners, including a large fish burner.
- Landscape Oven Window – A wide landscape door window gives plenty of room to watch food as it cooks.

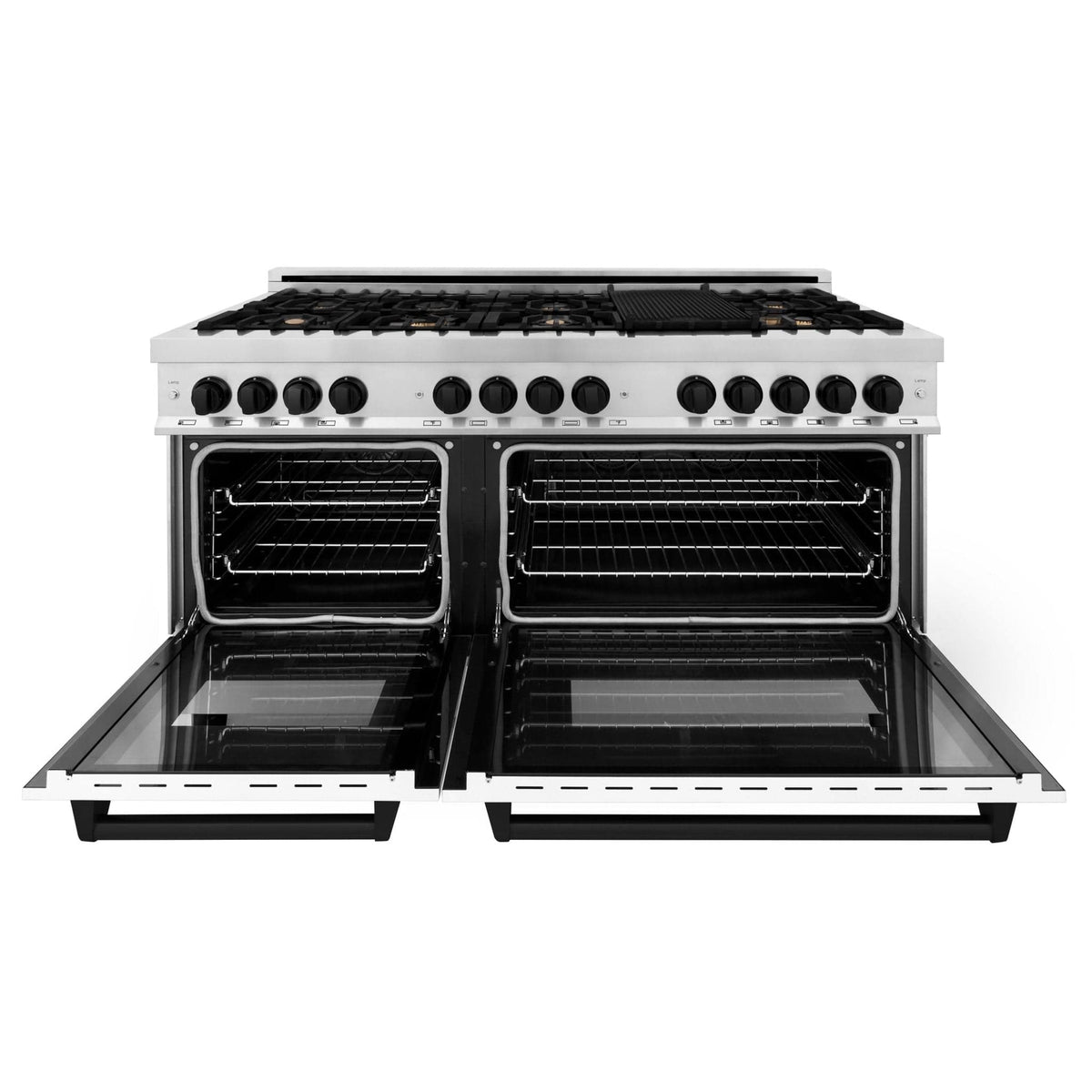

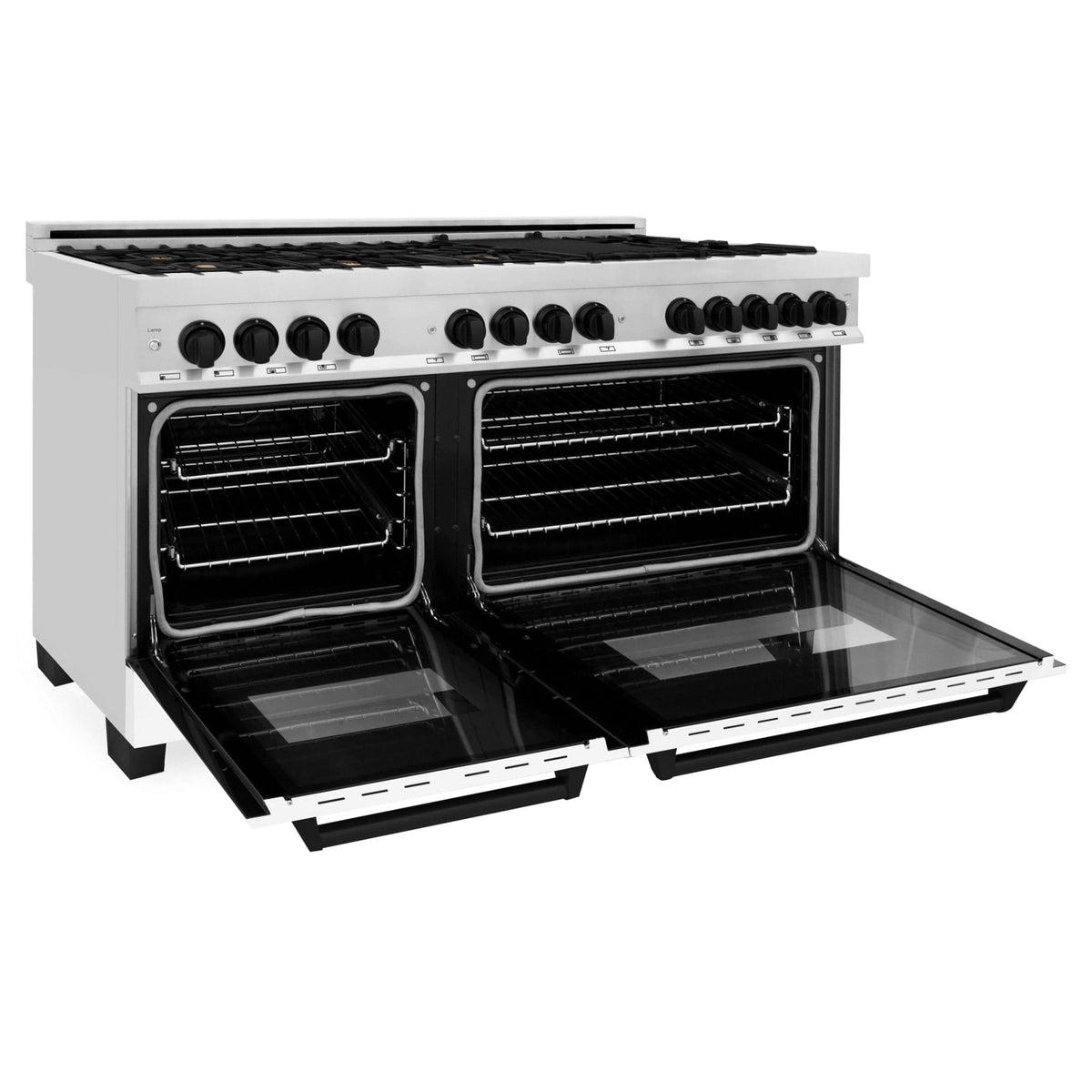

- Oven Capacity – Total oven volume is 7.4 cu. ft.; the ovens take pans as wide as 27 in. or 15 in.
More features

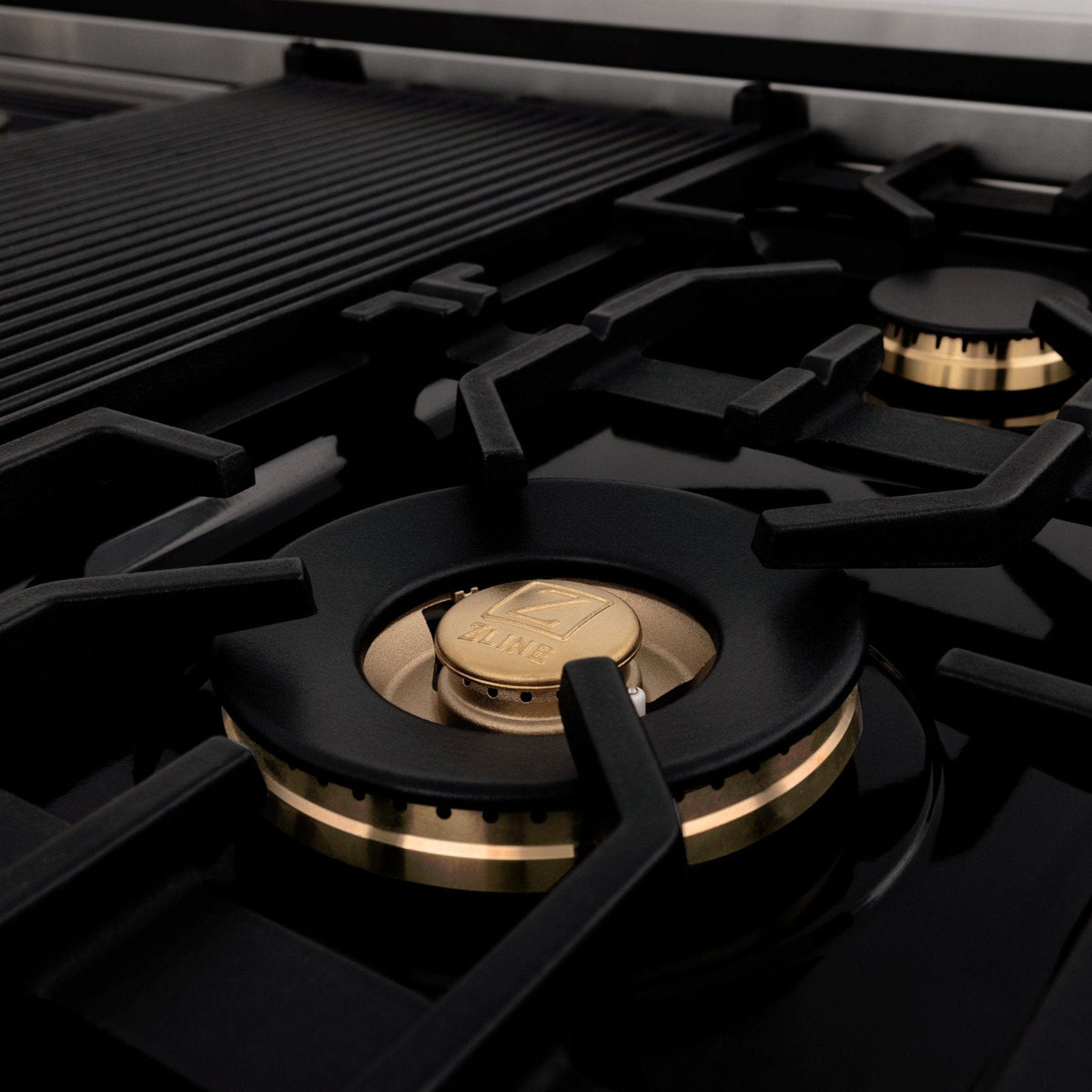

- Cast-Iron Griddle – The cast iron griddle comes pre-seasoned and sears meat and vegetables, with strong heat retention and even heating.
- 304 Stainless and Cast Iron – High-grade 304 stainless steel and cast iron grates that go beyond industry standards.

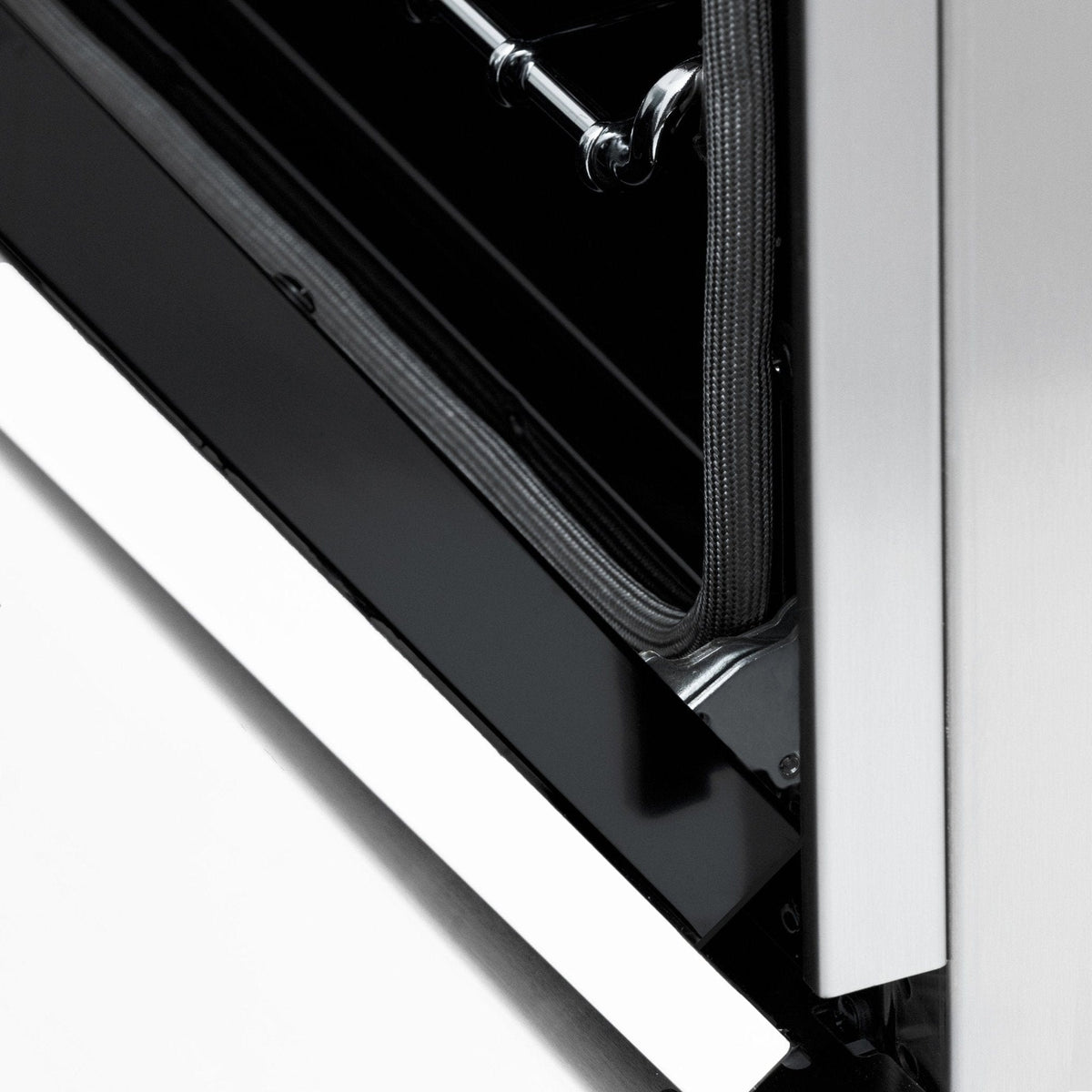

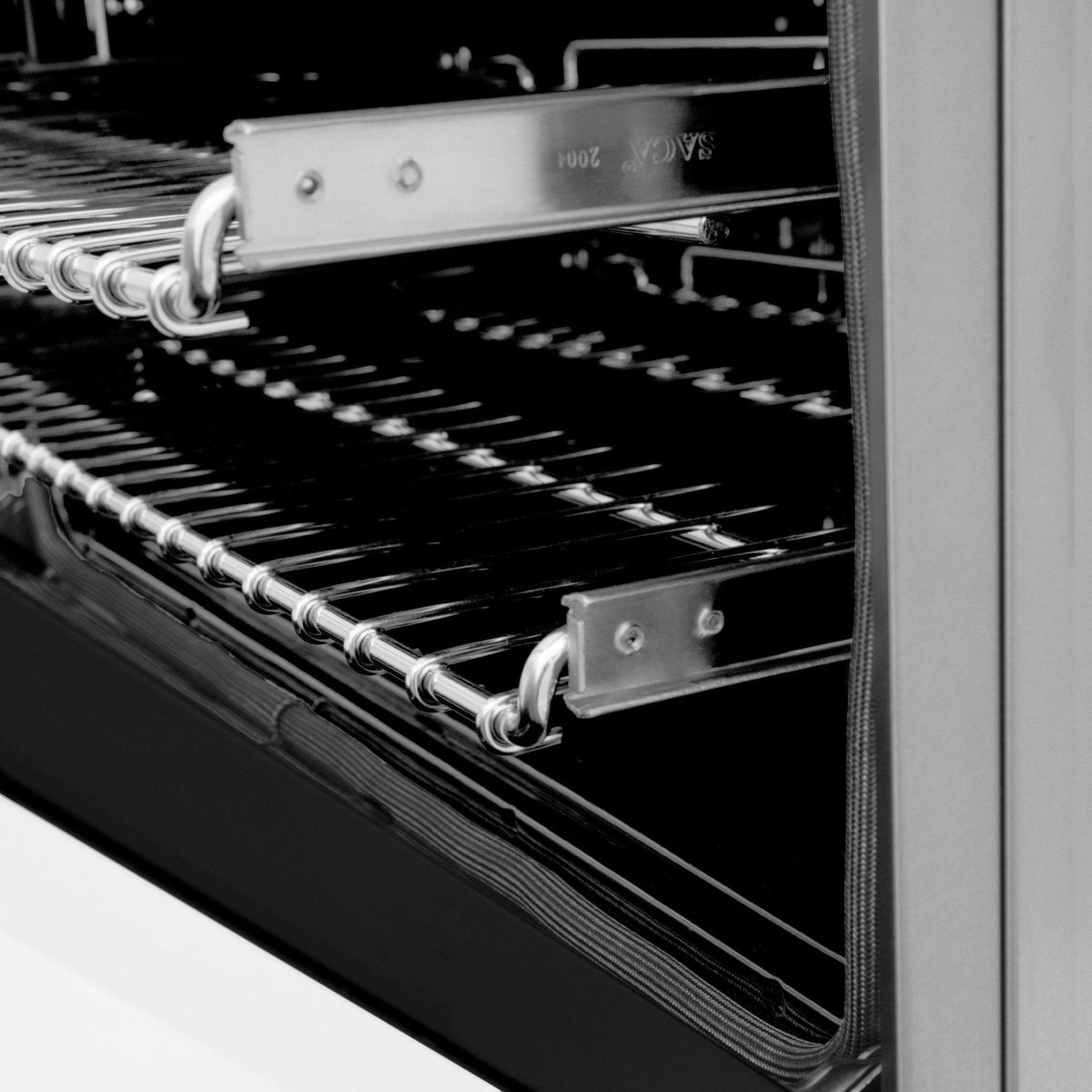

- Oven Insulation – Both doors use three layers of glass plus an aluminum mesh seal, holding heat in and temperatures steady.

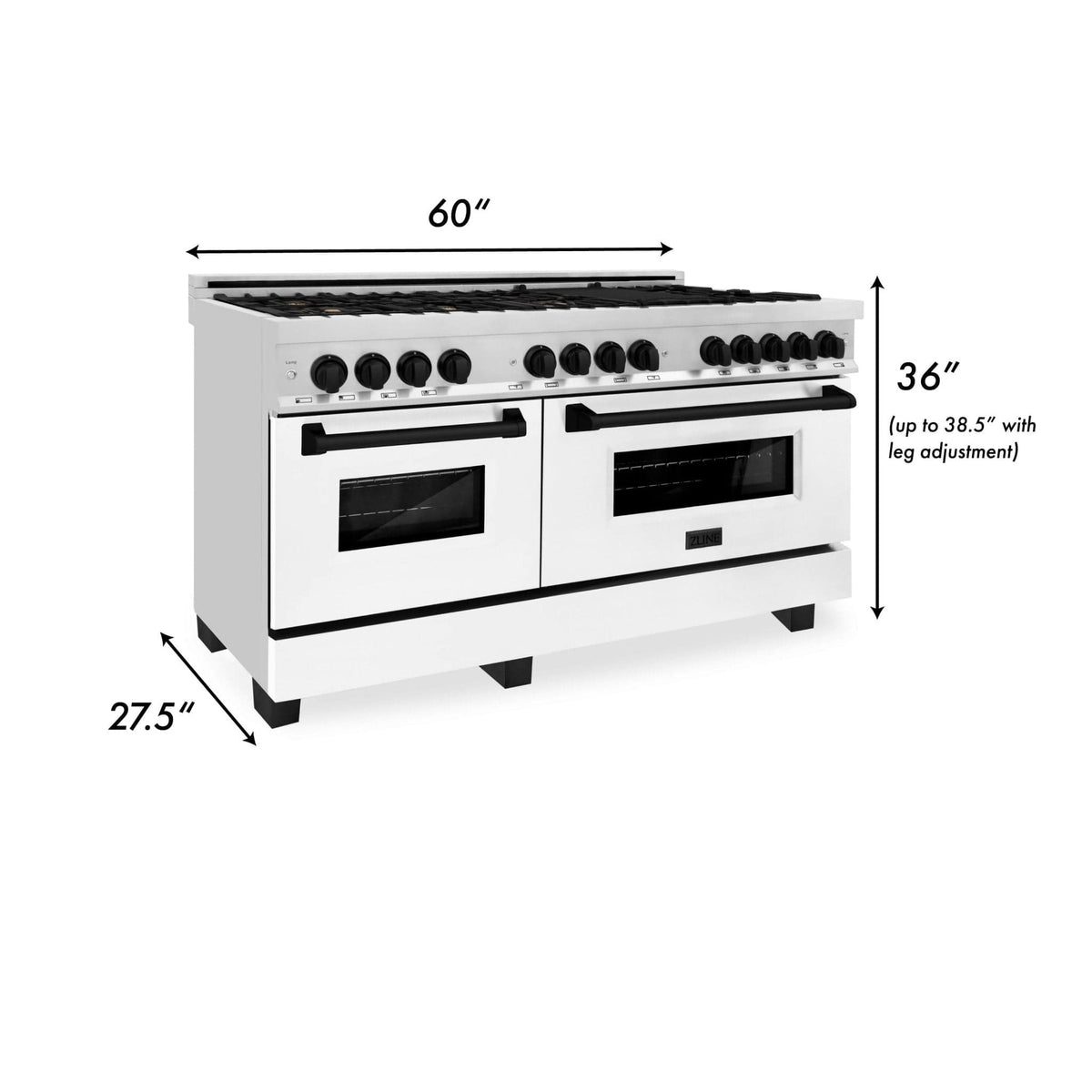

- Adjustable Height – Adjustable legs set total range height between 36 and 38.5 inches.

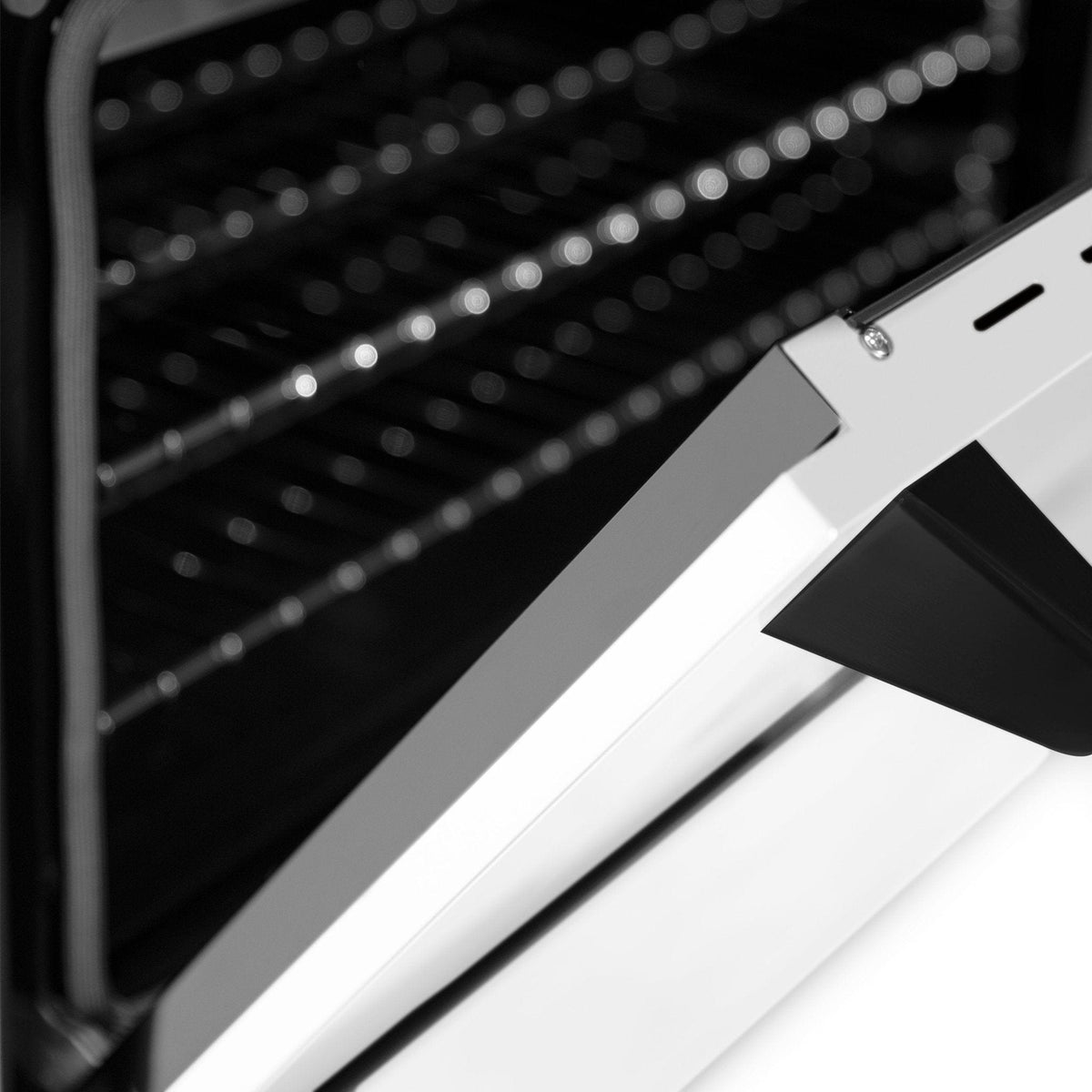

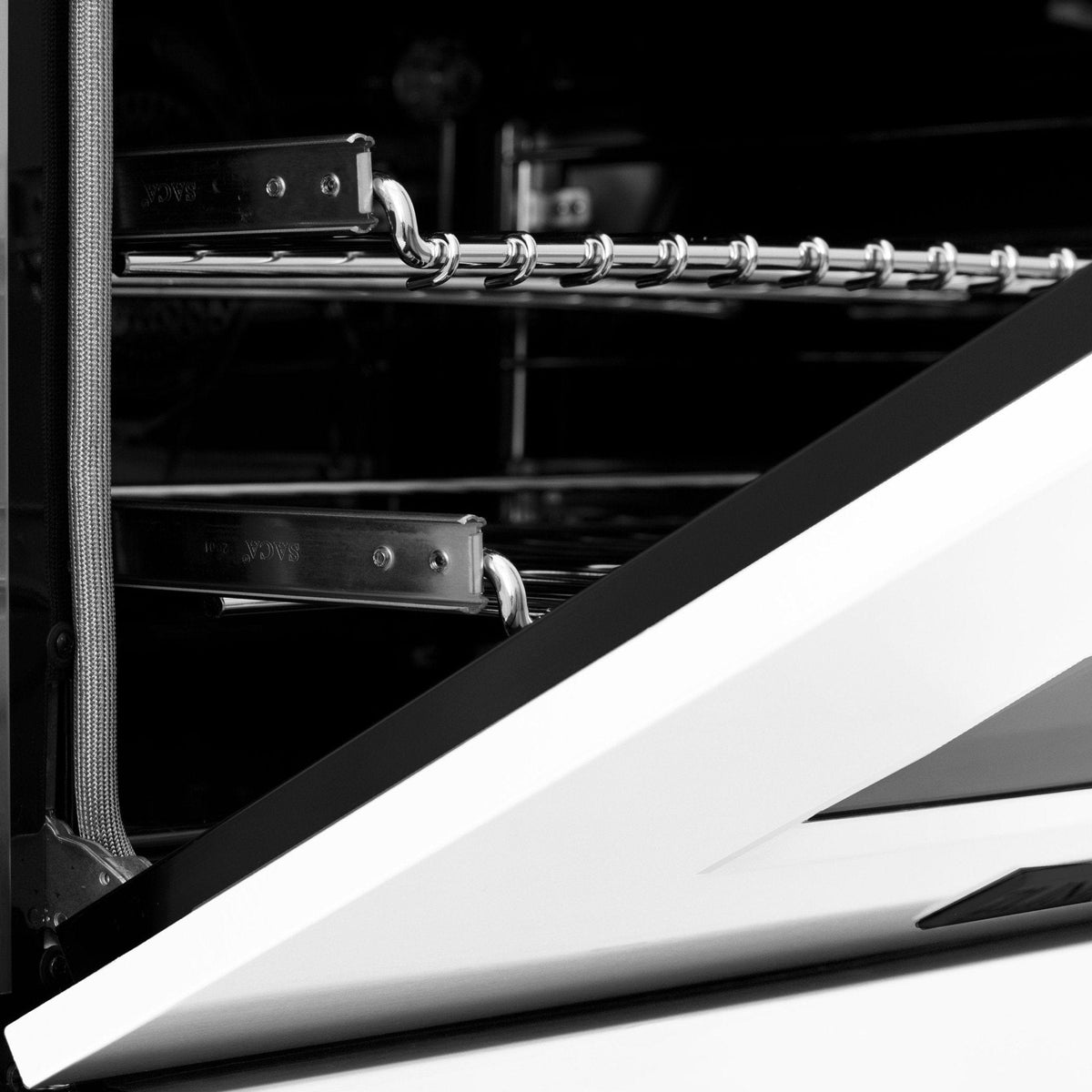

- StayPut Door Hinges – Hinges carry the entire weight of both oven doors, adding convenience and safety.

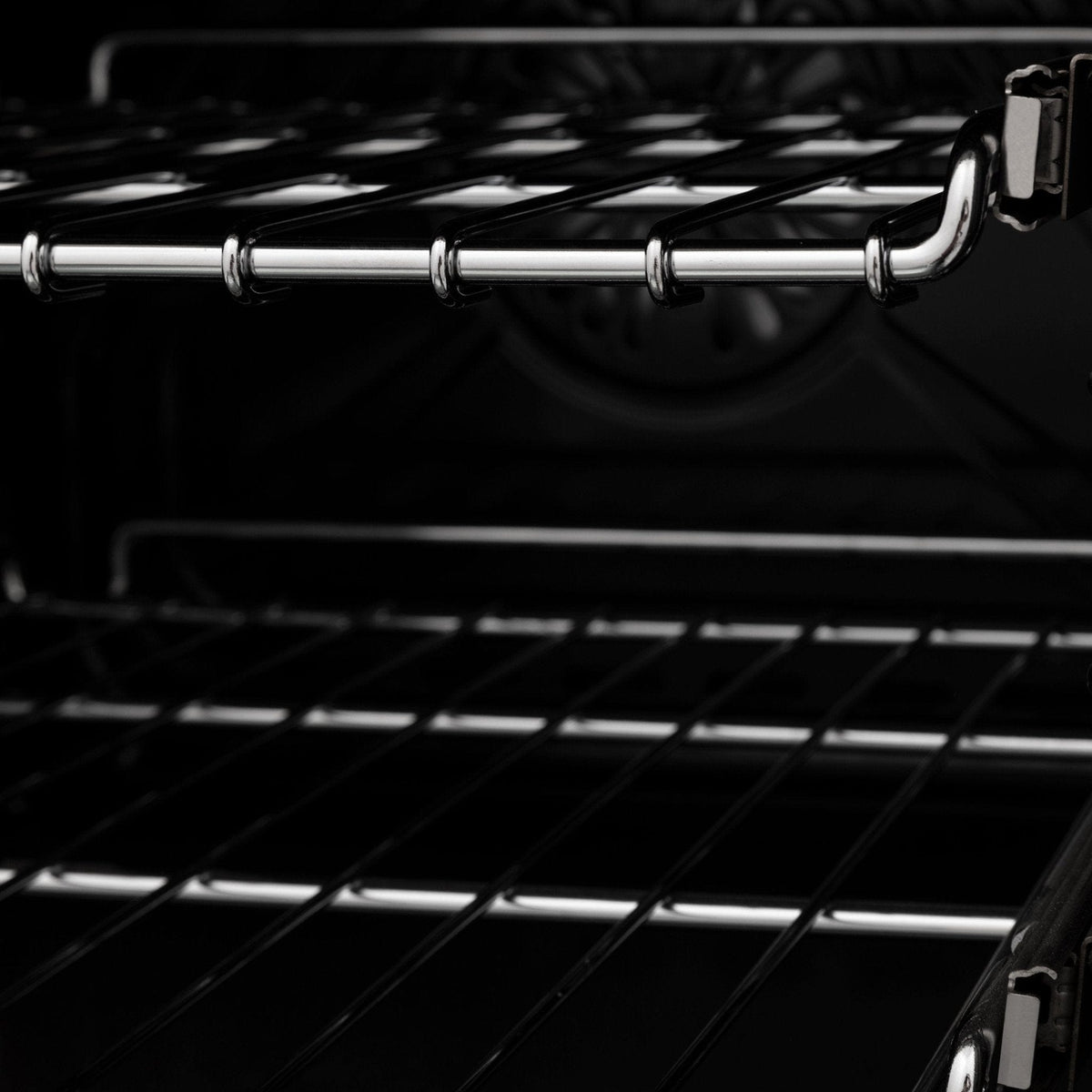

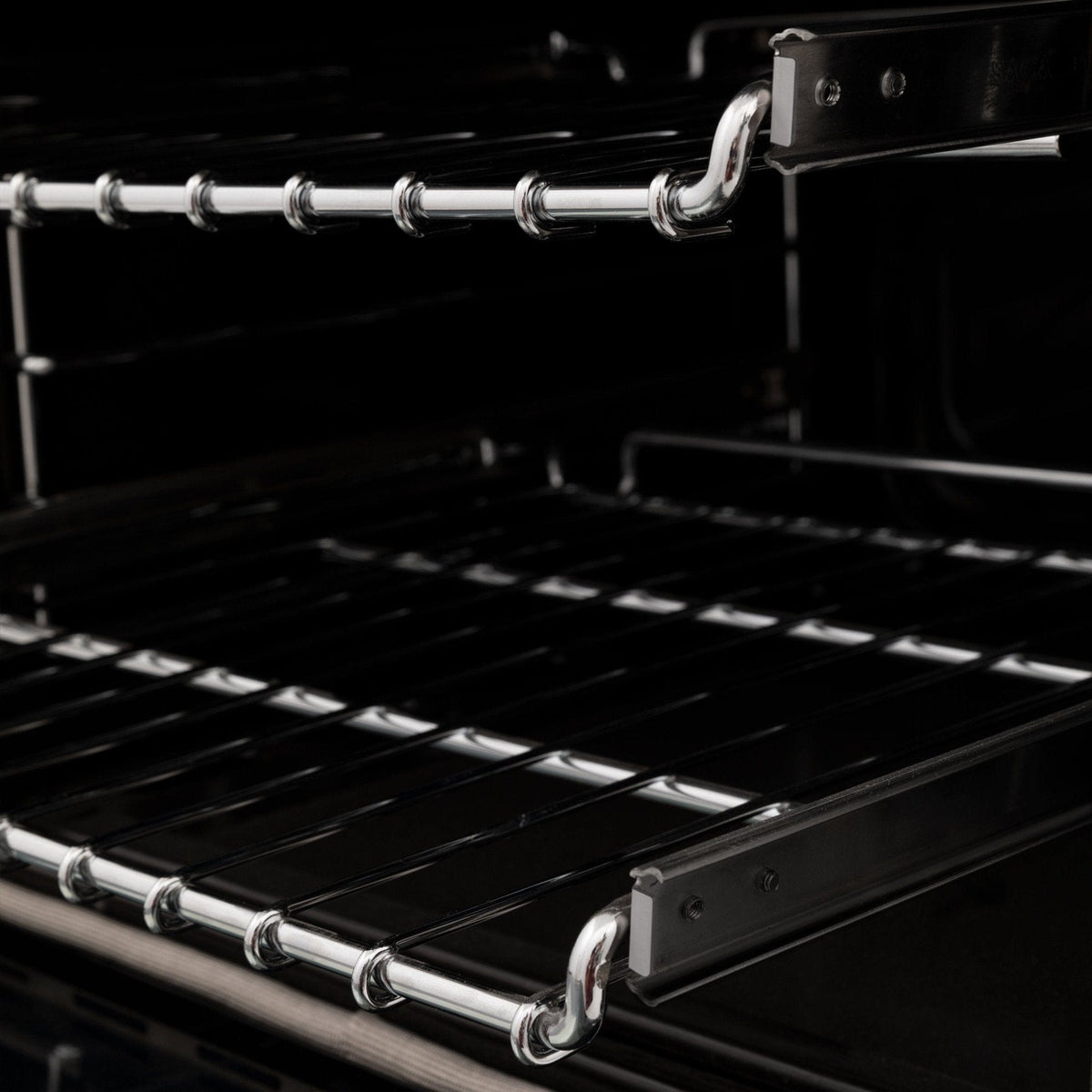

- Ball-Bearing Oven Racks – Four ball-bearing oven racks slide smoothly when handling larger dishes.
- Halogen Oven Lights – Three halogen lights illuminate both ovens and are switched from the front control panel.
- Easy Cleaning – The hand-finished, one-piece porcelain cooktop is simple to clean and maintain.
- LP Conversion Kit – Includes a kit that changes the burners from natural gas to LP; a professional must perform the conversion.
- Lifetime Burner Warranty – Limited lifetime coverage on ZLINE Italian burners: replacement burners and caps, plus parts and labor for spark tips, if defective in materials or workmanship.
- Manufacturer Warranty – 1-year parts and service warranty.
- Assembly Required – Ships in multiple boxes and needs minimal assembly on arrival.
Key specifications
| Product Depth (in.) | 27.50 |
| Product Width (in.) | 59.88 |
| Product Height (in.) | 36.13 |
| Oven Interior Dimensions (in) | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth With Door(s) Open 90 Degrees (in.) | 41.8 |
| Range Size (Width) | 60 in. |
| Appliance Category | Dual Fuel Range |
| Color/ Finish Family | Stainless Steel, White Matte Door |
| Hardware Color/Finish | Matte Black |
| Back Left Burner BTU | 10200 |
| Back Left Middle Burner BTU | 13100 |
| Back Right Middle Burner BTU | 10200 |
| Back Right Burner BTU | 10200 |
| Front Left Burner BTU | 18000 |
| Front Left Middle Burner BTU | 5100 |
| Front Right Middle Burner BTU | 18000 |
| Front Right Burner BTU | 5100 |
| Fish Burner BTU | 13100 |
| Total BTUs | 103000 |
| Cooktop Features | (8) Burners, (1) Fish Burner with hand-finished stainless steel one piece cook top and electronic spark ignition for all burners |
| Control Type | Manual Front Control |
| Capacity of Oven (cu. ft.) | 7.4 (2.8 + 4.6) |
| Product Weight (lb.) | 450 |
| Fuel Type | Convection Electric Oven- Gas Cooktop |
| Oven Features | Convection Gas Oven- 4.6 cu. ft./ 2.8 cu. ft.deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
| Voltage | 240vac |
| Frequency | 60 Hz |
| Amps | 40 |
| Convection Fan | Yes |
| Certifications and Listings | CSA Listed |
| Warranty | 1 year parts and service, limited lifetime warranty on burners |
Good to know
- Voltage: Requires a minimum of 220V-240V/60HZ/50A.
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
