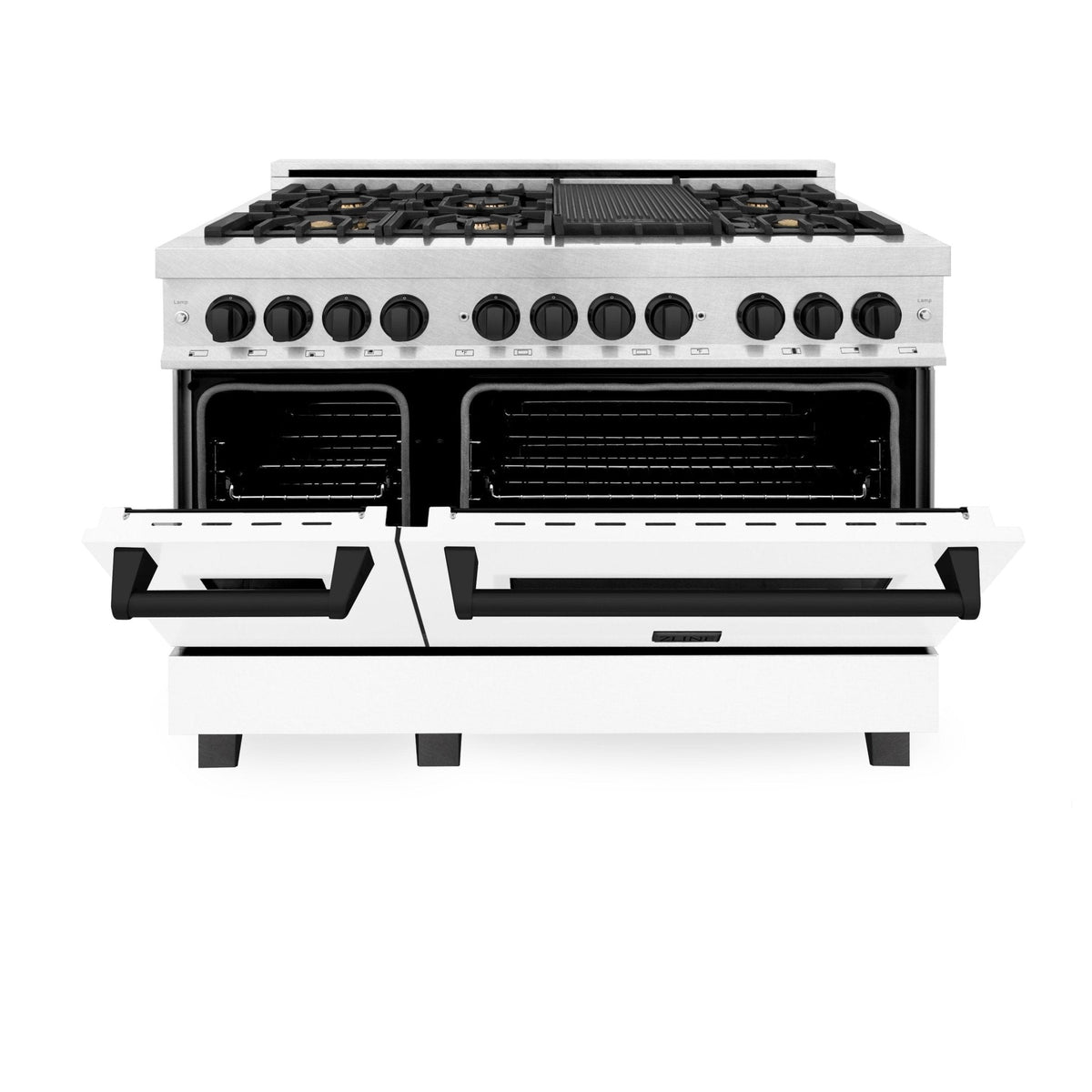

ZLINE 48" Autograph, Range, Dual Fuel, White door, RASZ-WM-48-MB
- Regular Price
- $5,839.99
- Sale Price
- $5,839.99
- Regular Price
- $7,299.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.

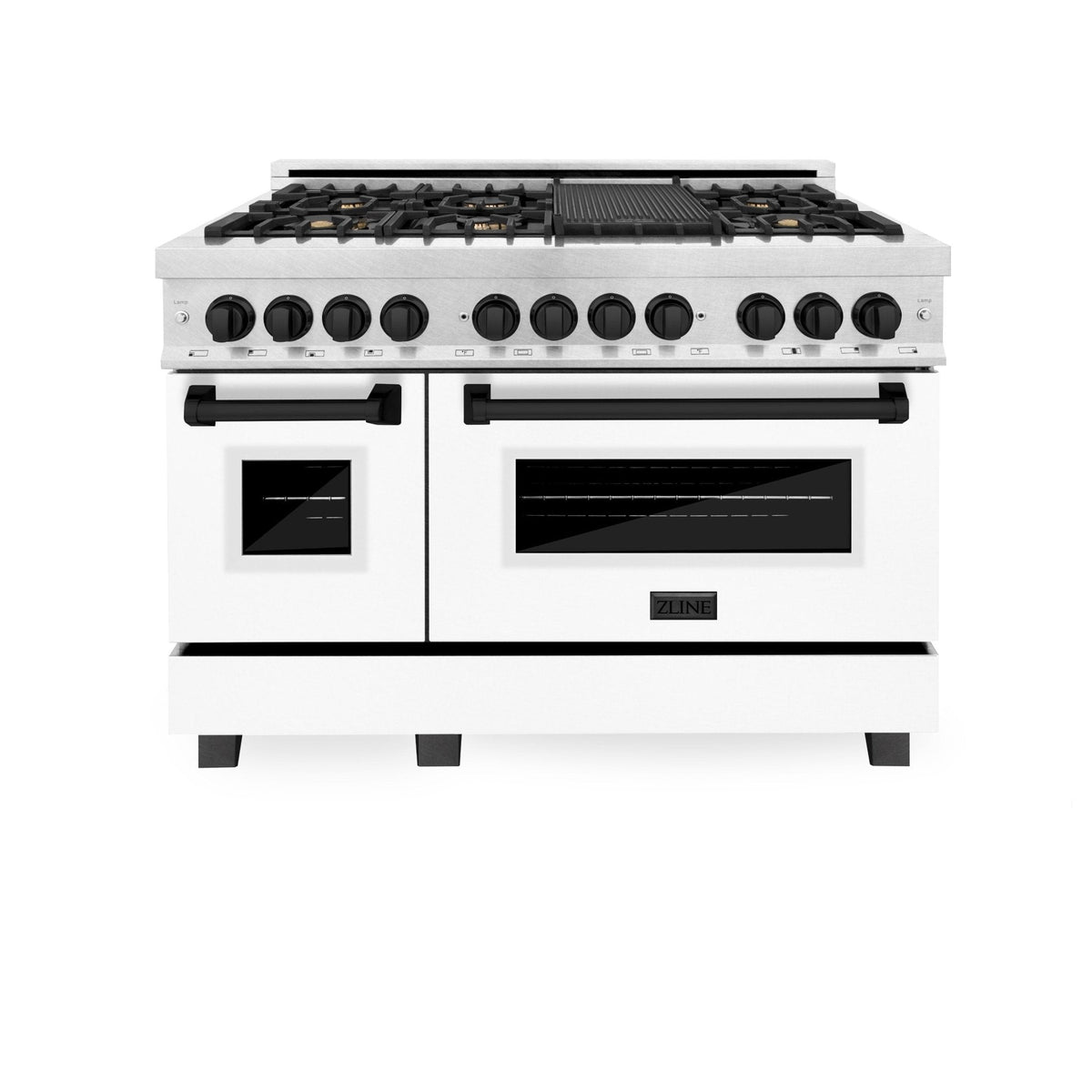

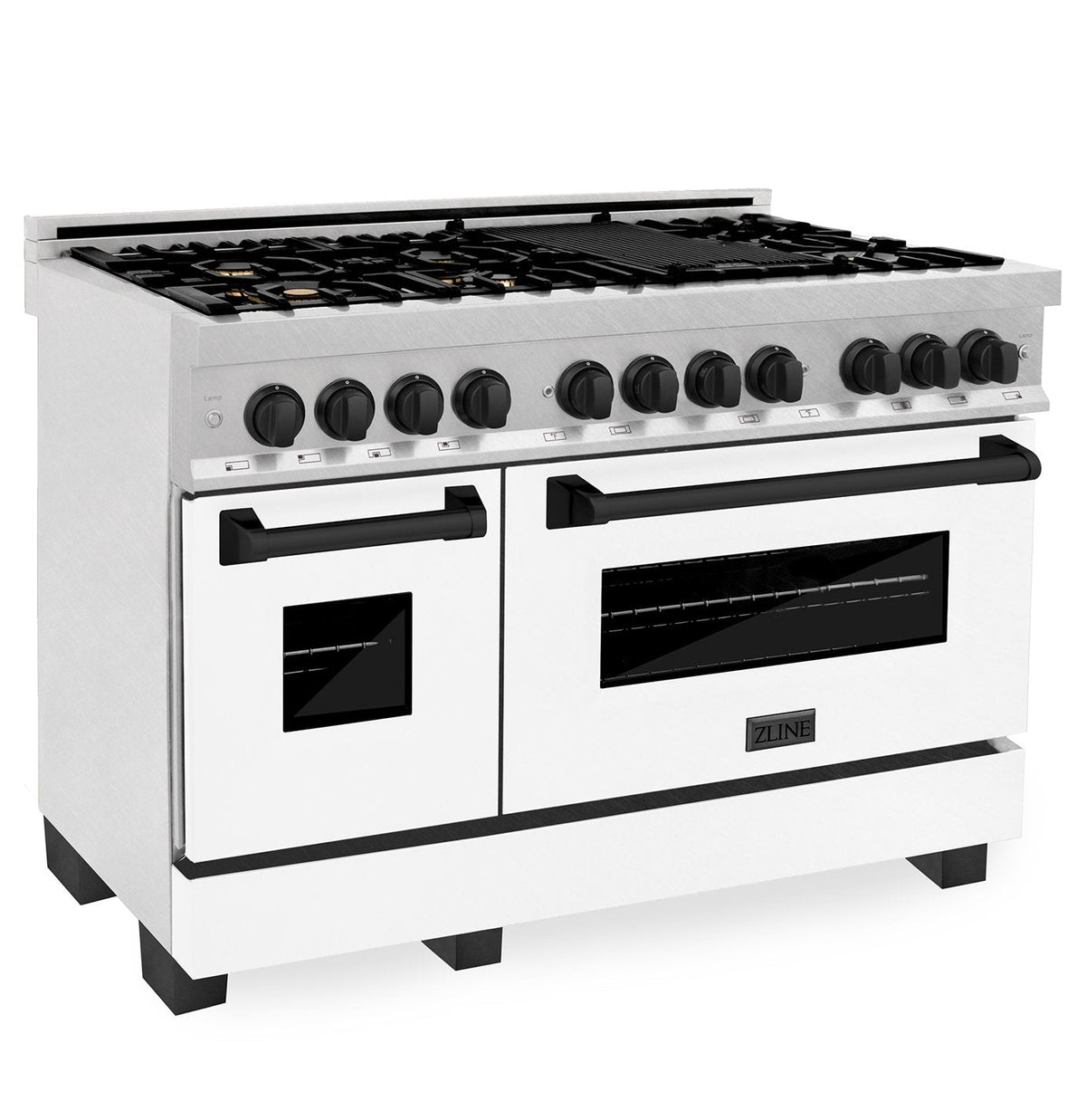

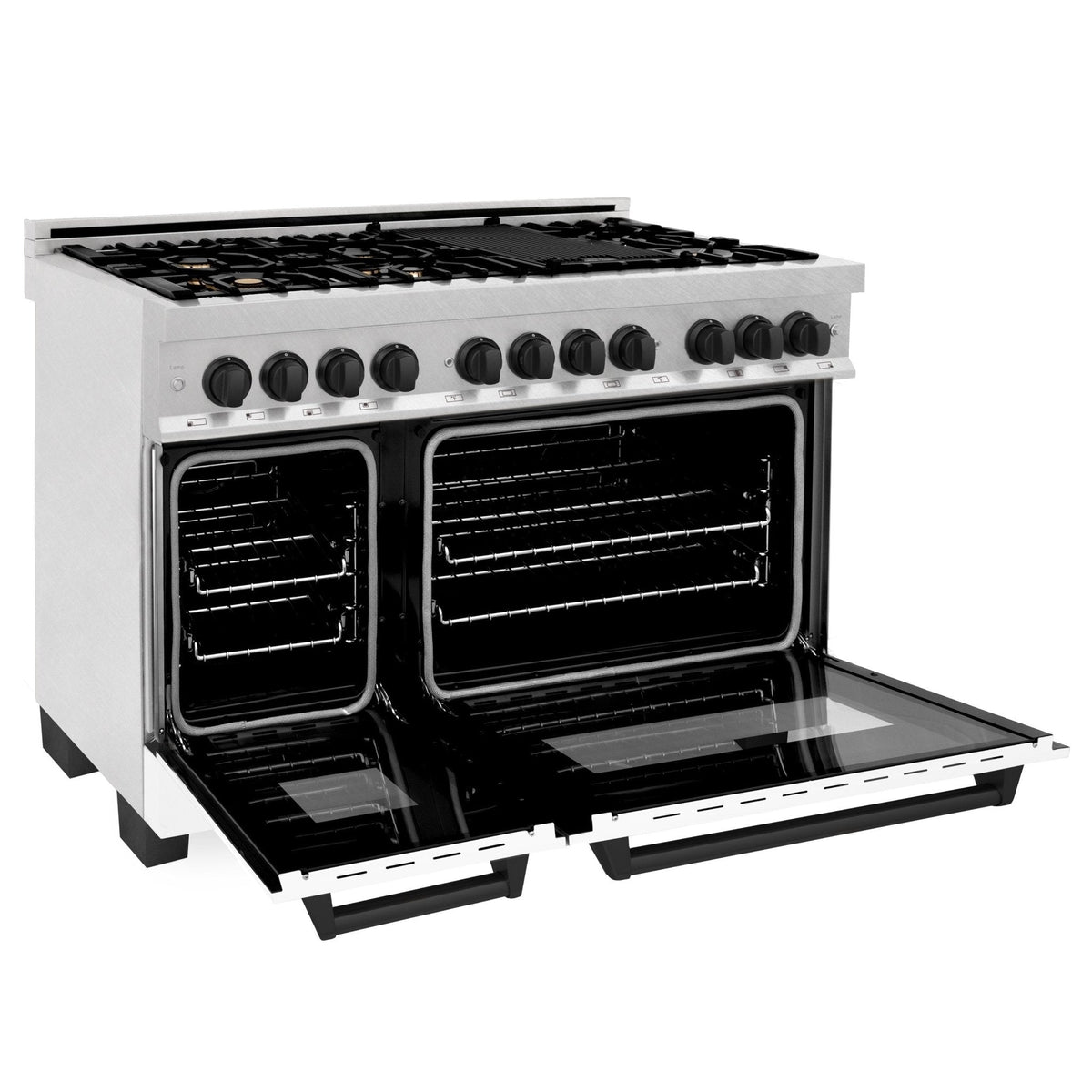

This is the ZLINE 48" Autograph, Range, Dual Fuel, White door (RASZ-WM-48-MB). At a glance: 48" wide, 85,500 BTU total burner output, 6 cu. ft. oven, 1-year manufacturer warranty. Highlights: Legacy Series; Matte Black Accents; Custom Door Finish.
48"wide
85,500total BTU
6cu. ft. oven
1-yearwarranty
Why it stands out
- Legacy Series – The Legacy Professional Range Series is the base of ZLINE's family-focused effort to offer attainable luxury.

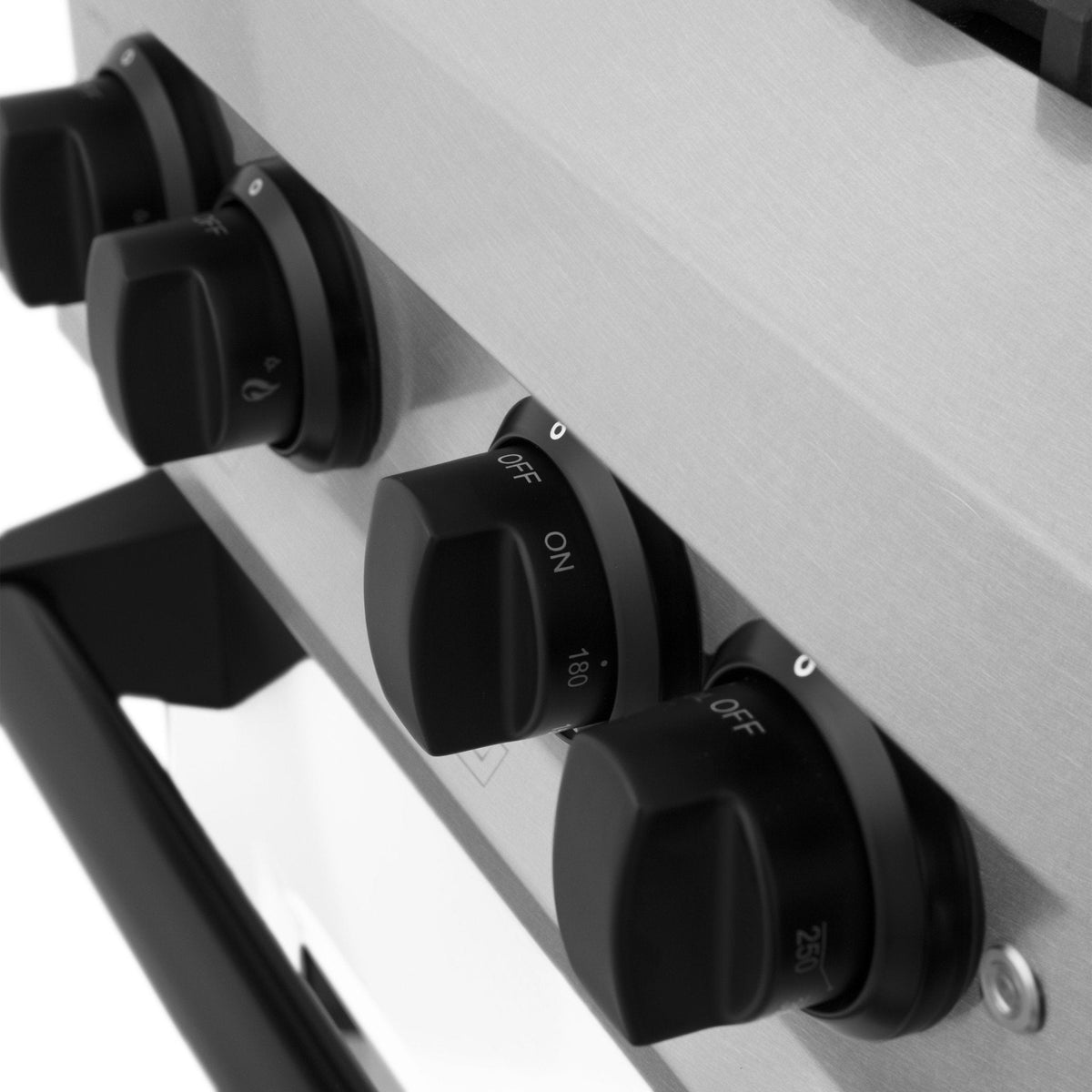

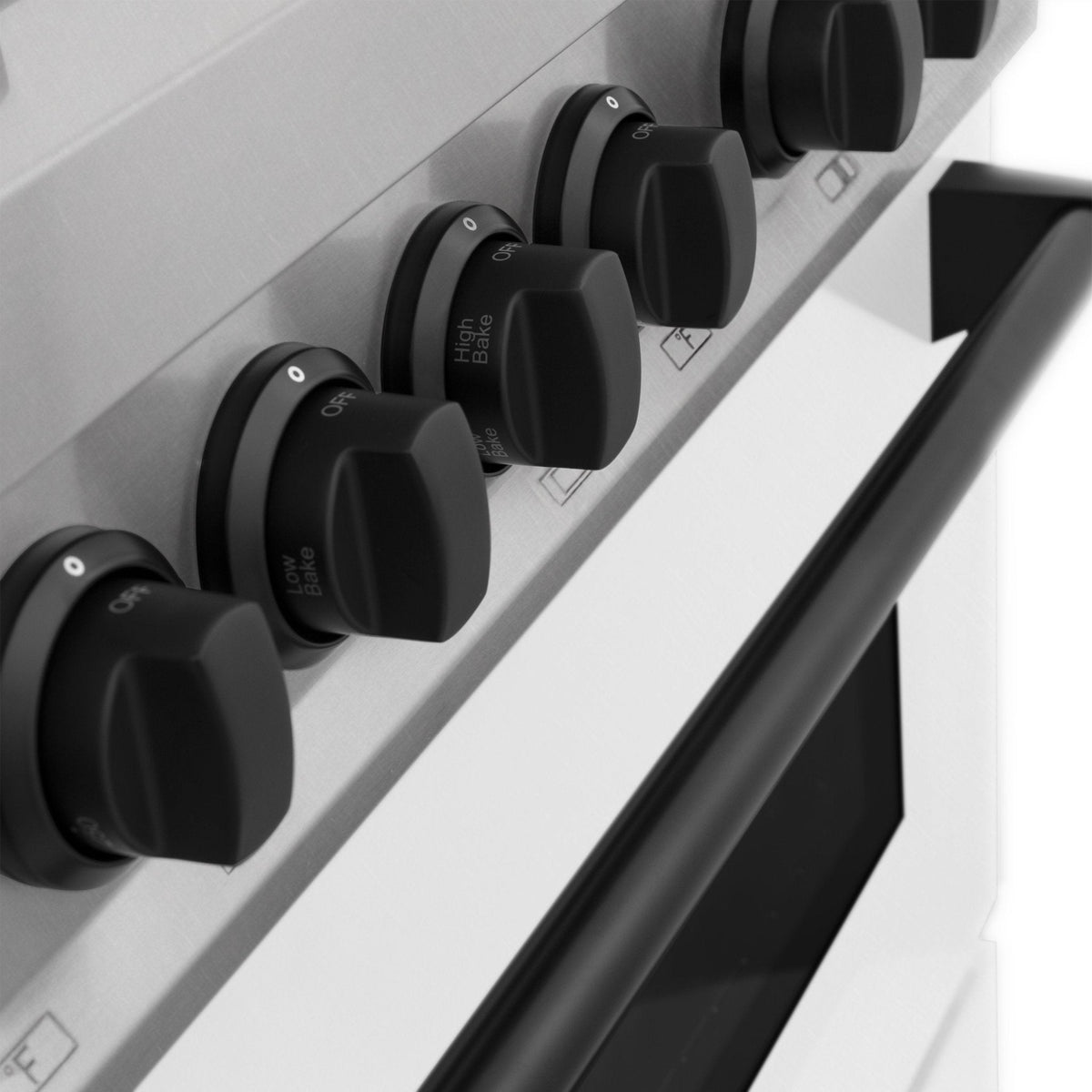

- Matte Black Accents – The Autograph Edition dual fuel range is customized with matte black knobs and handle.
- Custom Door Finish – This Legacy Dual Fuel Range has 2 White Matte oven doors.
- Dual Fuel Cooking – Gas cooktop plus a large electric convection oven give even heat distribution.

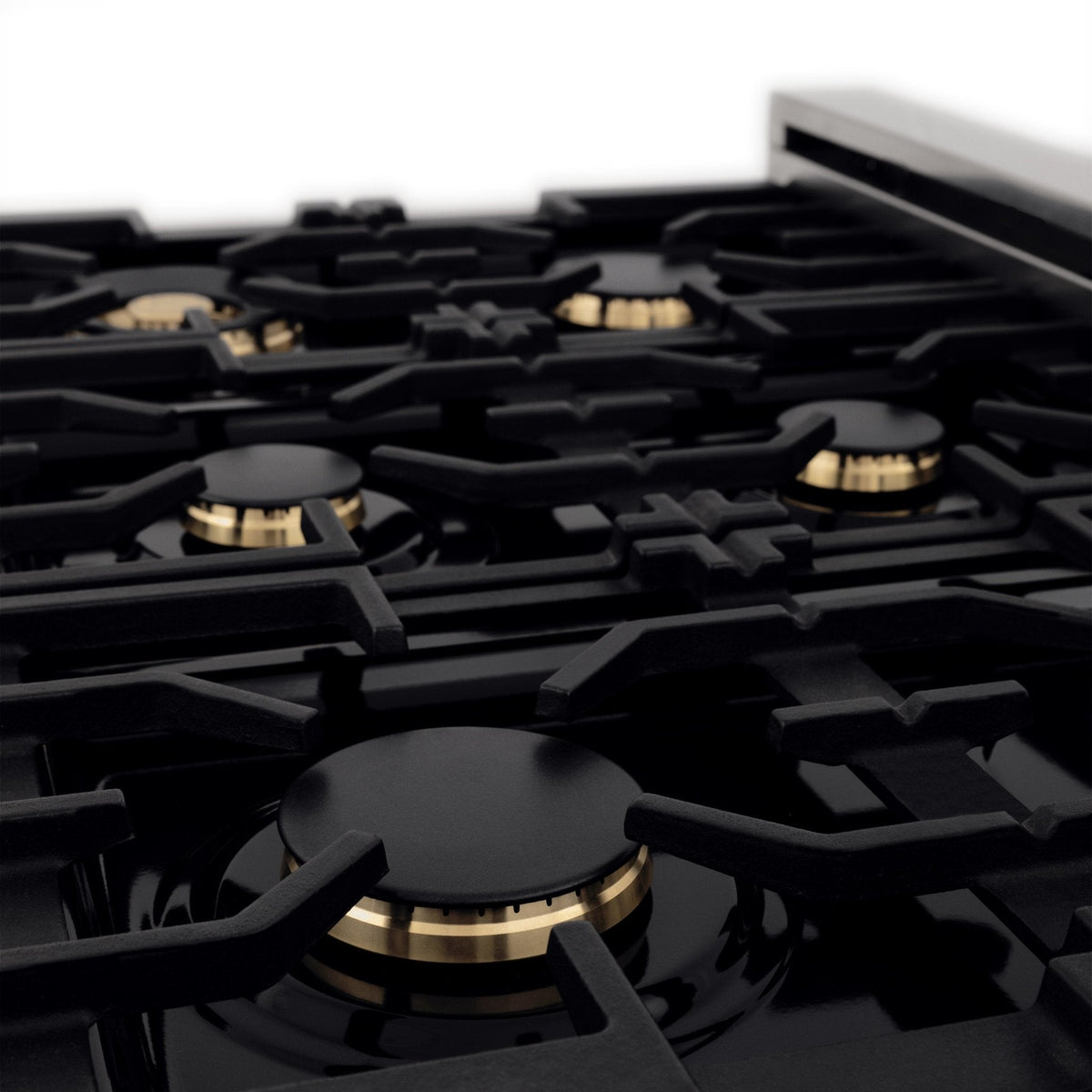

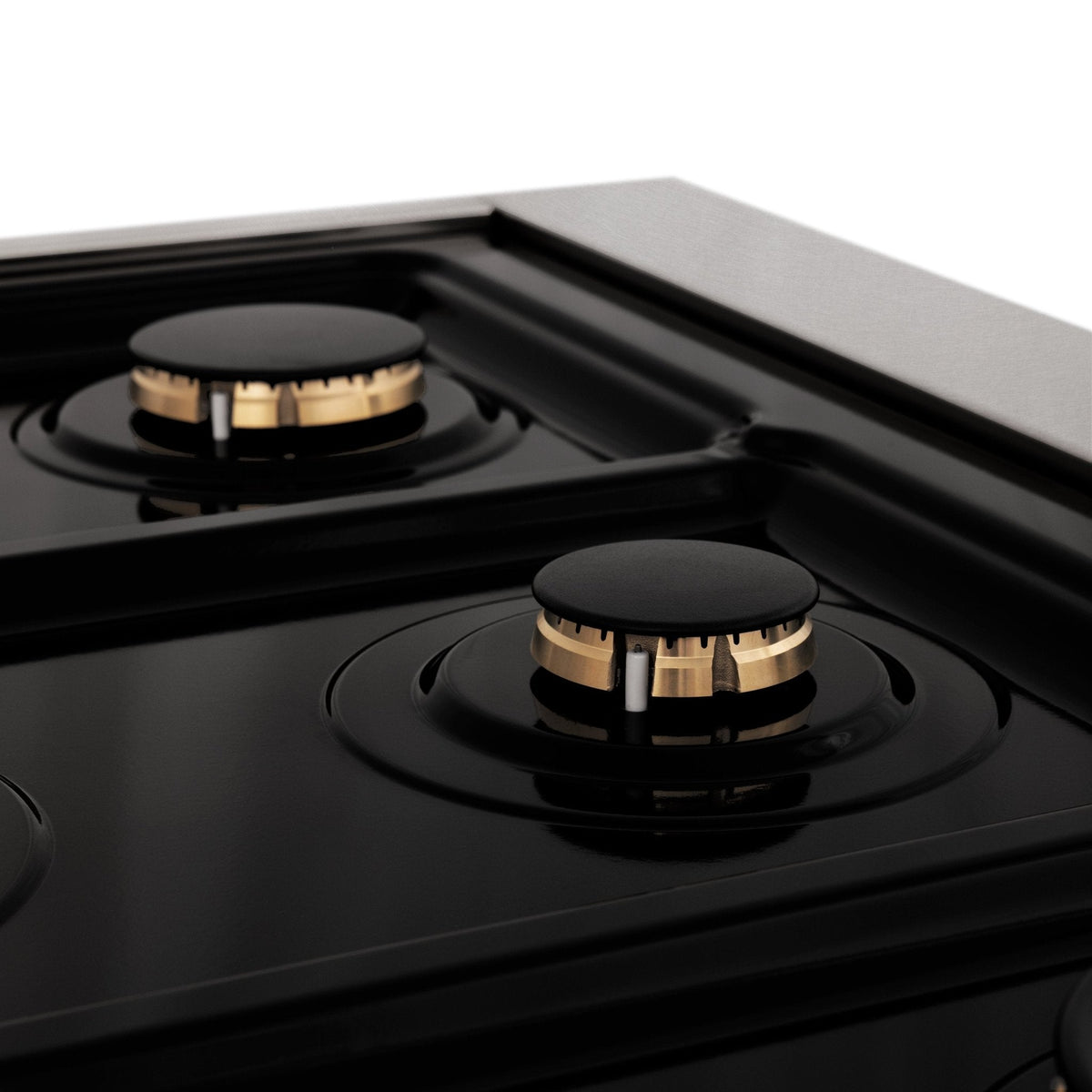

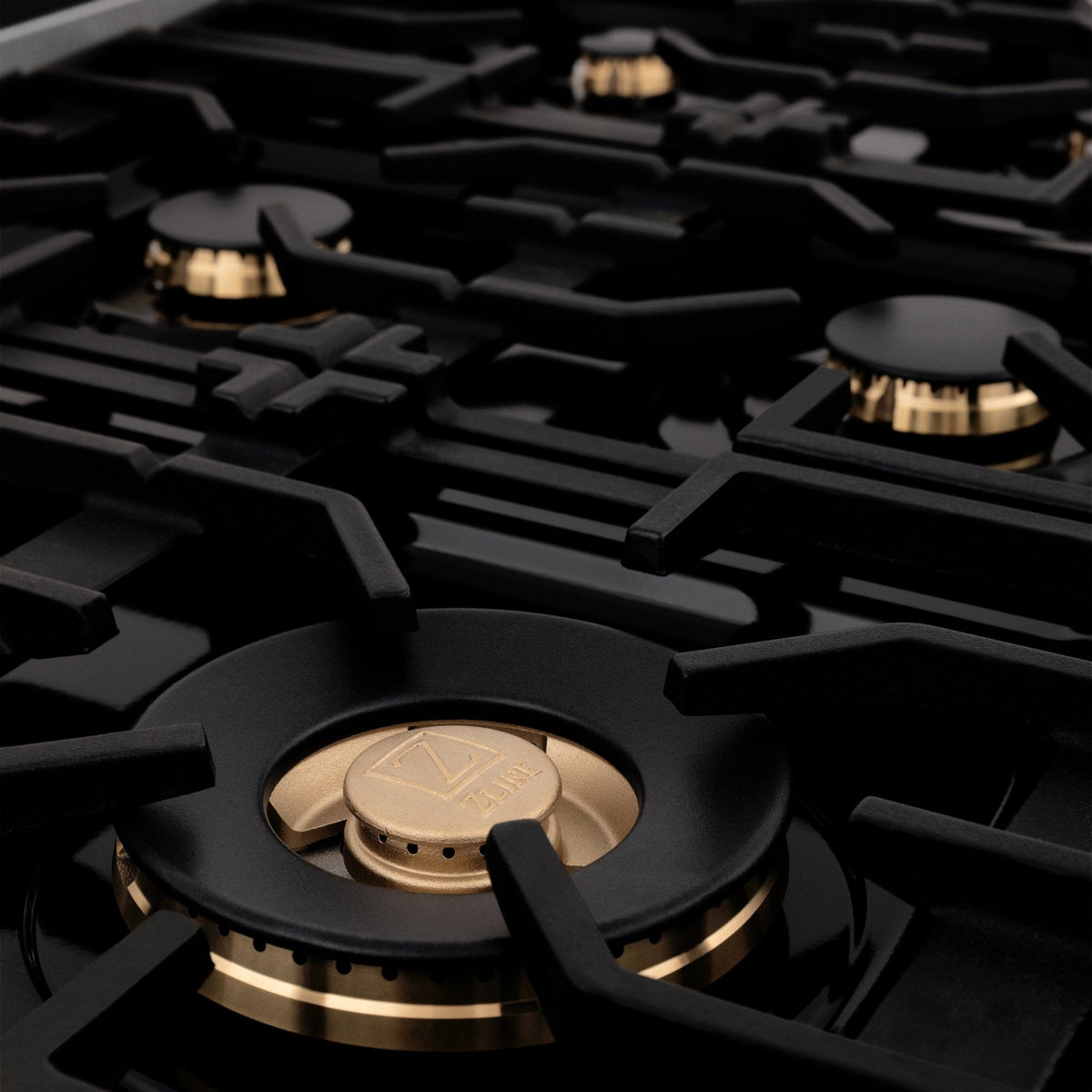

- Italian-Made Sealed Burners – The gas cooktop has 7 hand-cast burners, including a large fish burner, with 1,000 to 18,000 BTUs of output.
- Landscape Oven Window – A wide landscape door window gives plenty of room to watch food as it cooks.

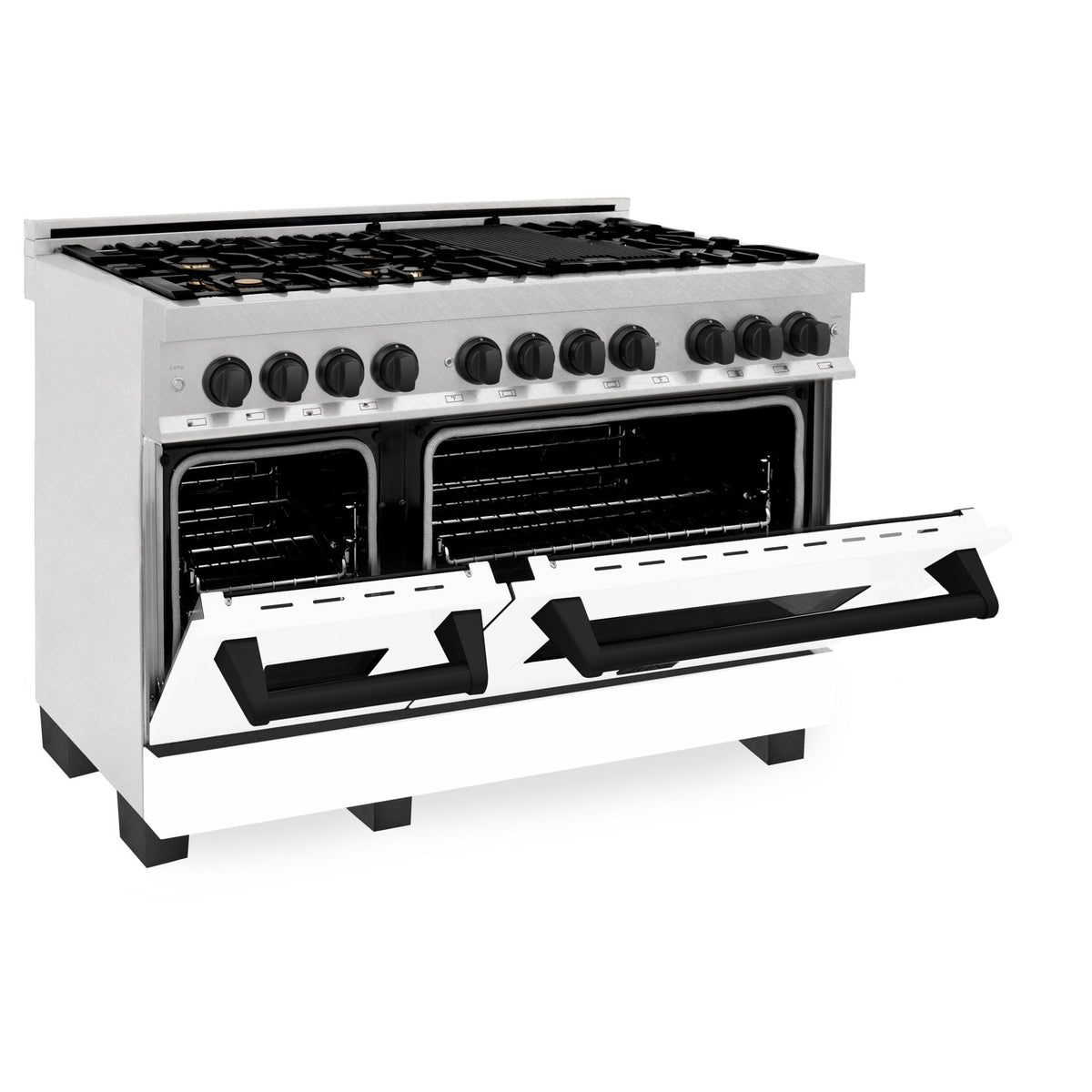

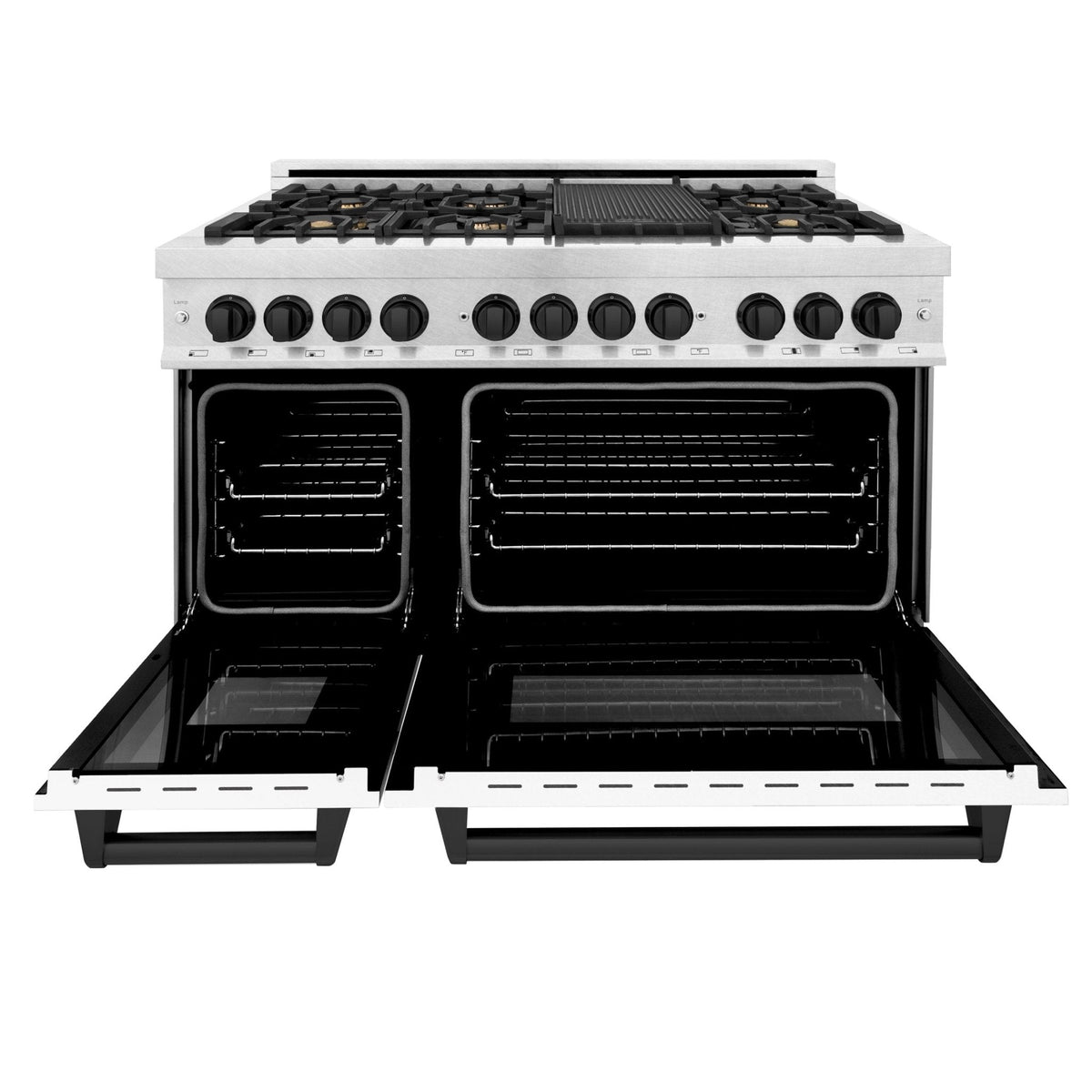

- Large Oven Capacity – Holds pans as wide as 23 in. or 9 in. in the 6.0 cu. ft. dual oven.
More features

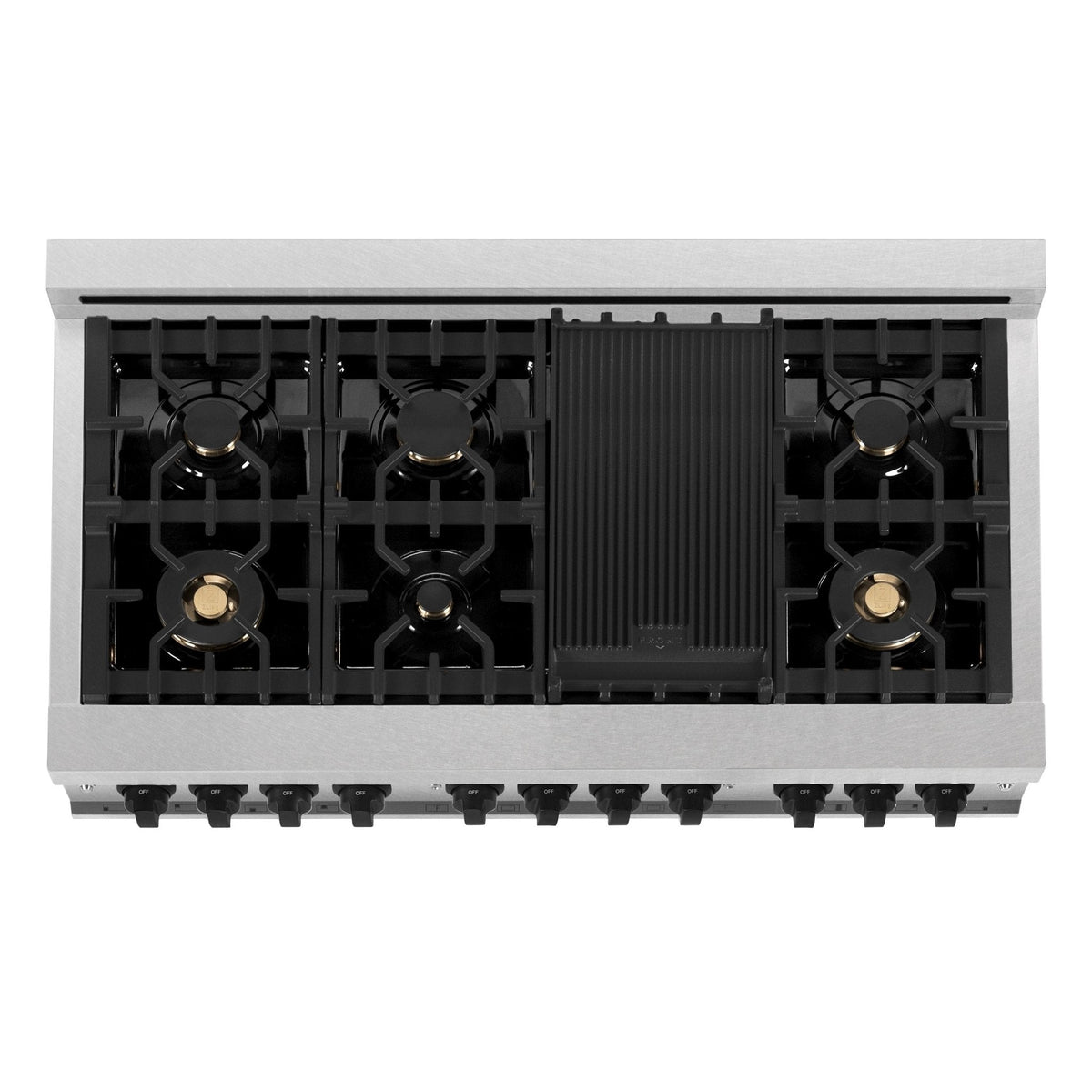

- Cast-Iron Griddle – The cast iron griddle comes pre-seasoned and sears meat and vegetables, with strong heat retention and even heating.
- Satin Stainless Steel – The finish is a circular, non-directional stainless steel that resists rust, scratches, and fingerprints.

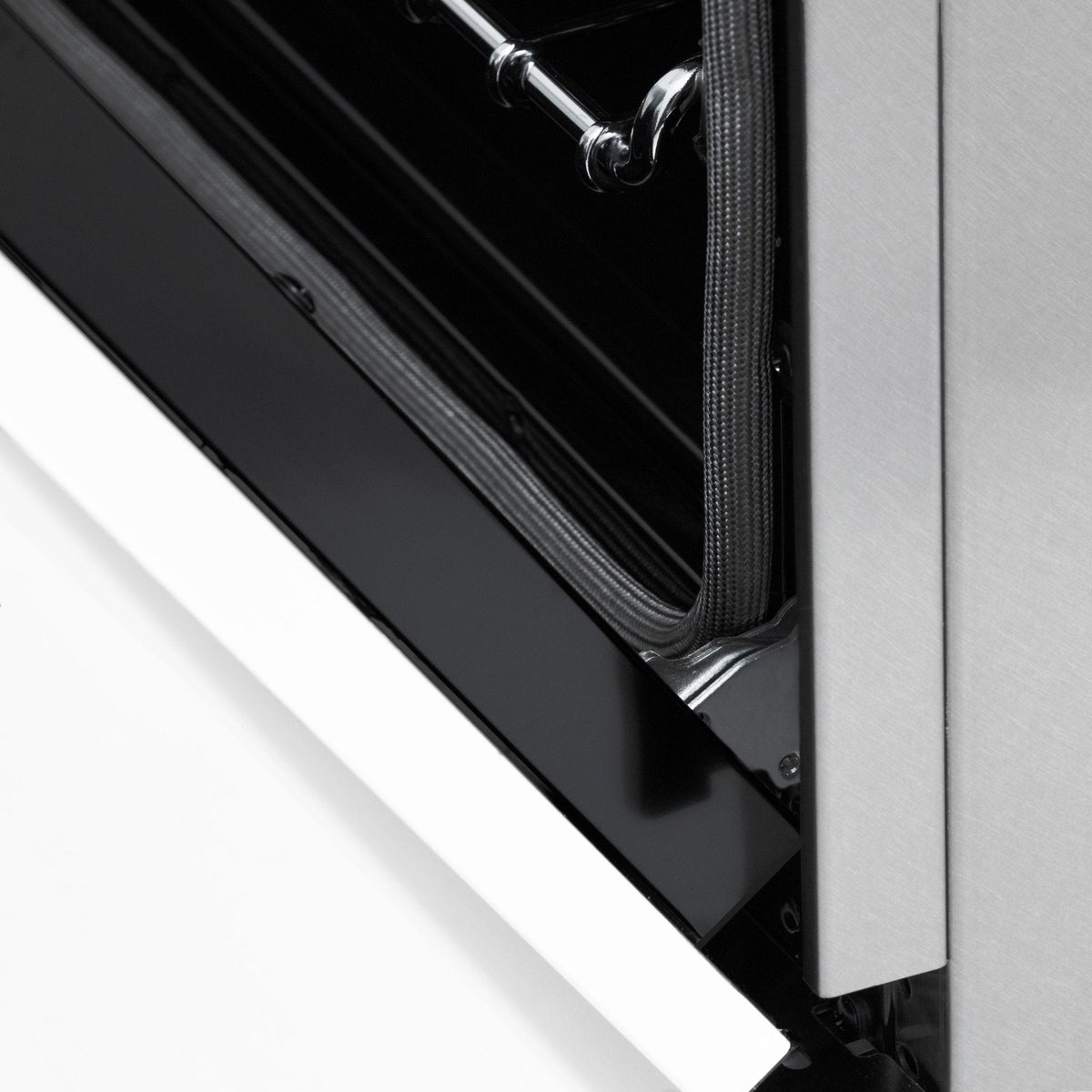

- Oven Insulation – Both doors use three layers of glass plus an aluminum mesh seal, holding heat in and temperatures steady.
- Adjustable Height – Adjustable legs set total range height between 36 and 38.5 inches.

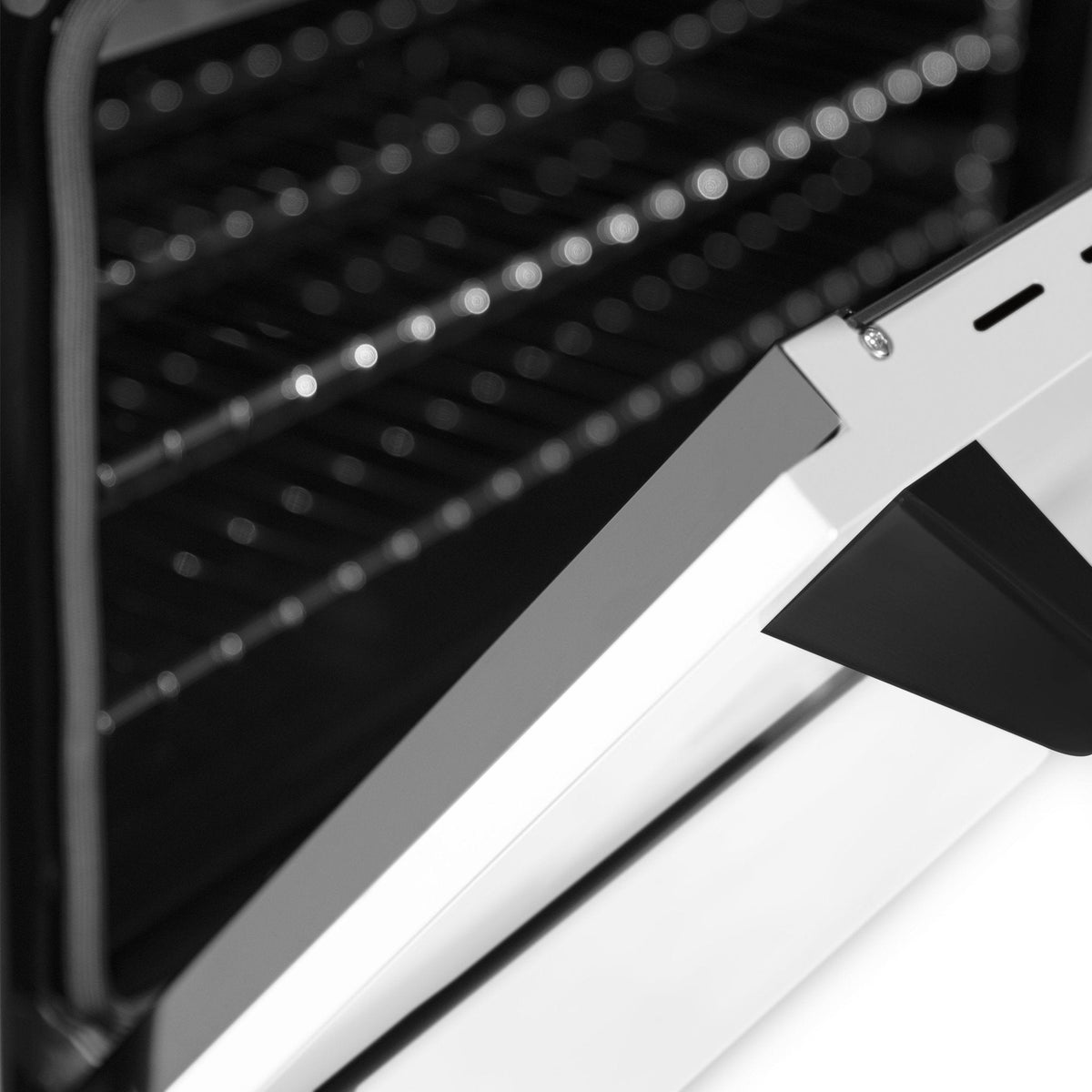

- StayPut Door Hinges – Hinges carry the entire weight of both oven doors, adding convenience and safety.

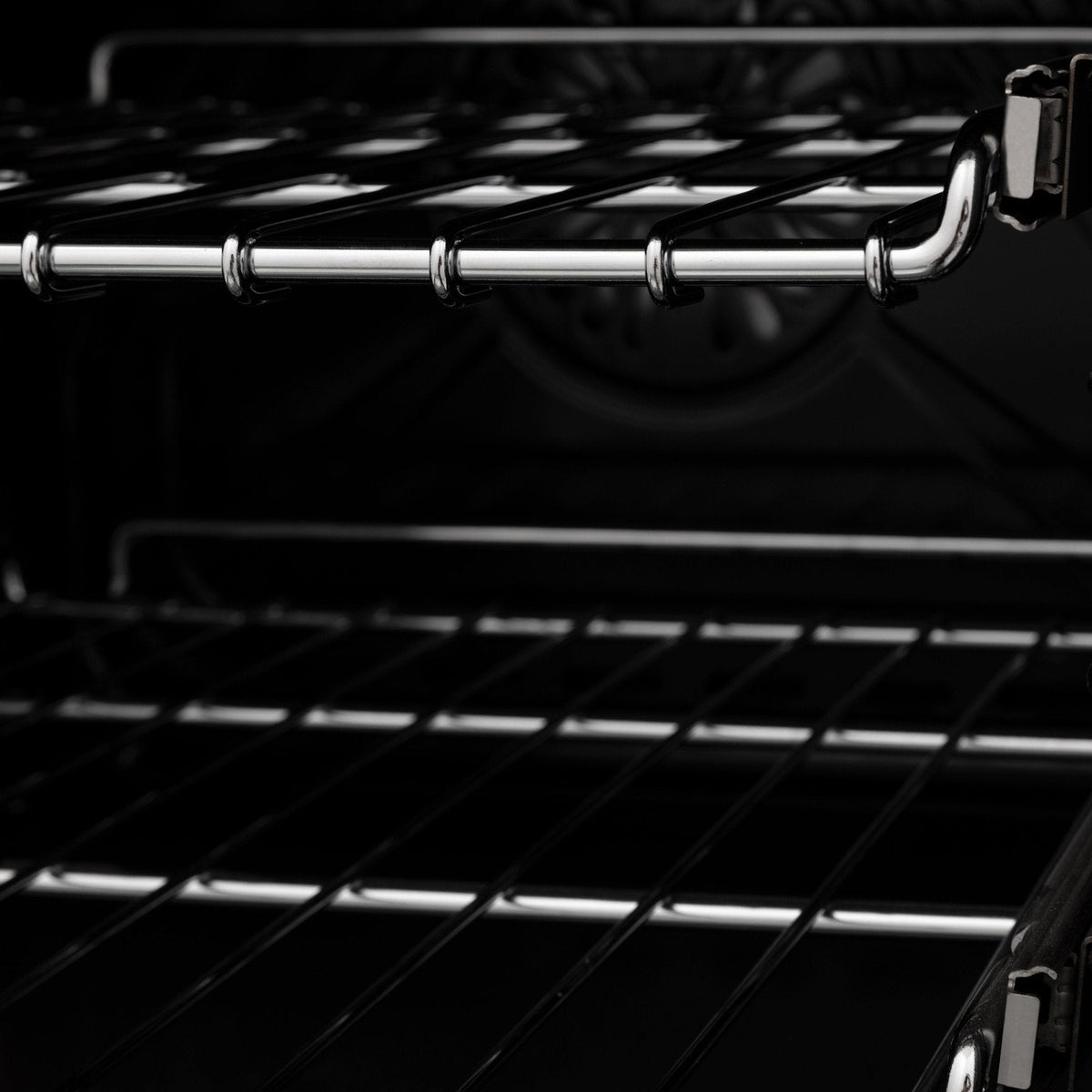

- Ball-Bearing Oven Racks – Four ball-bearing oven racks slide smoothly when handling larger dishes.

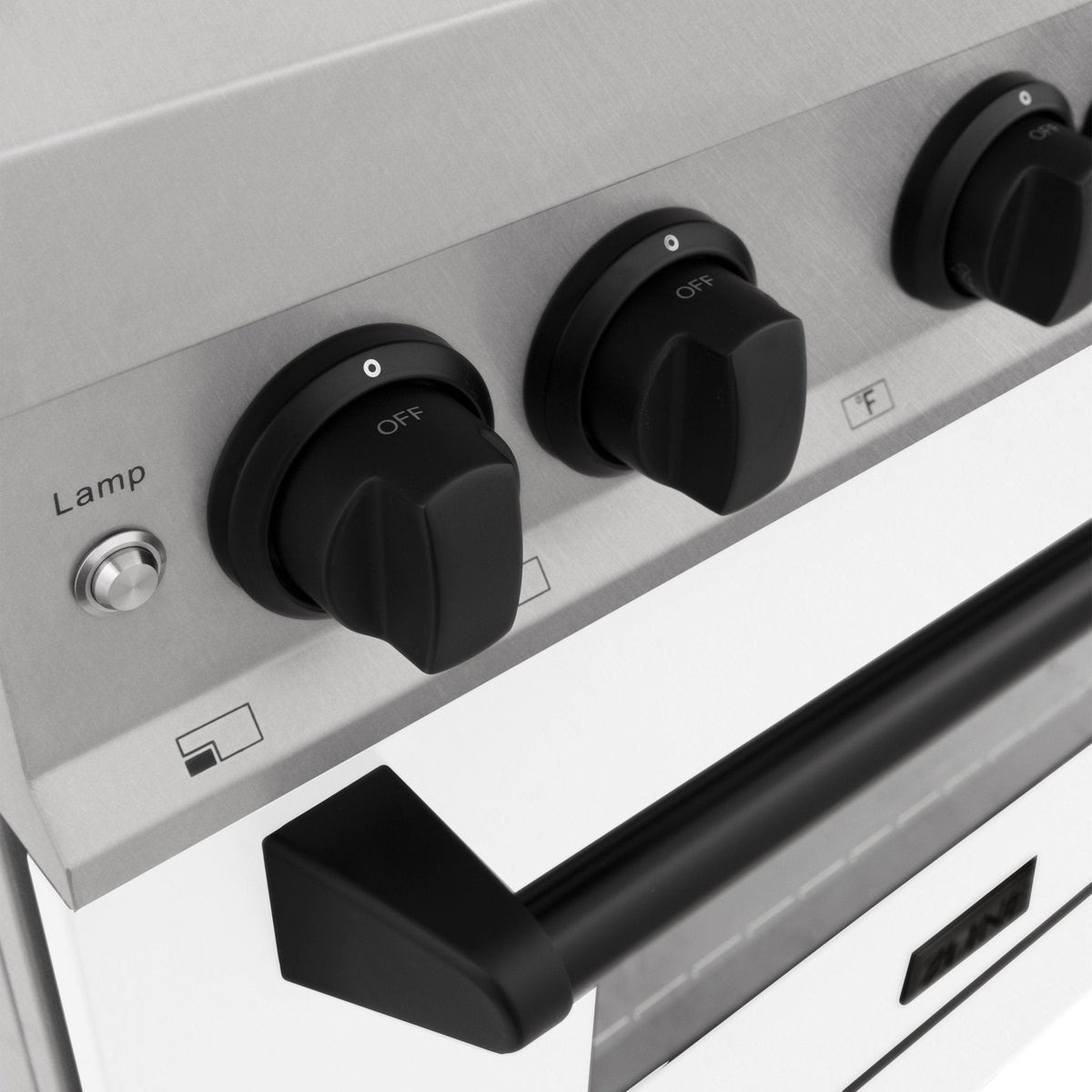

- Halogen Oven Lights – Three halogen lights illuminate both ovens and are switched from the front control panel.

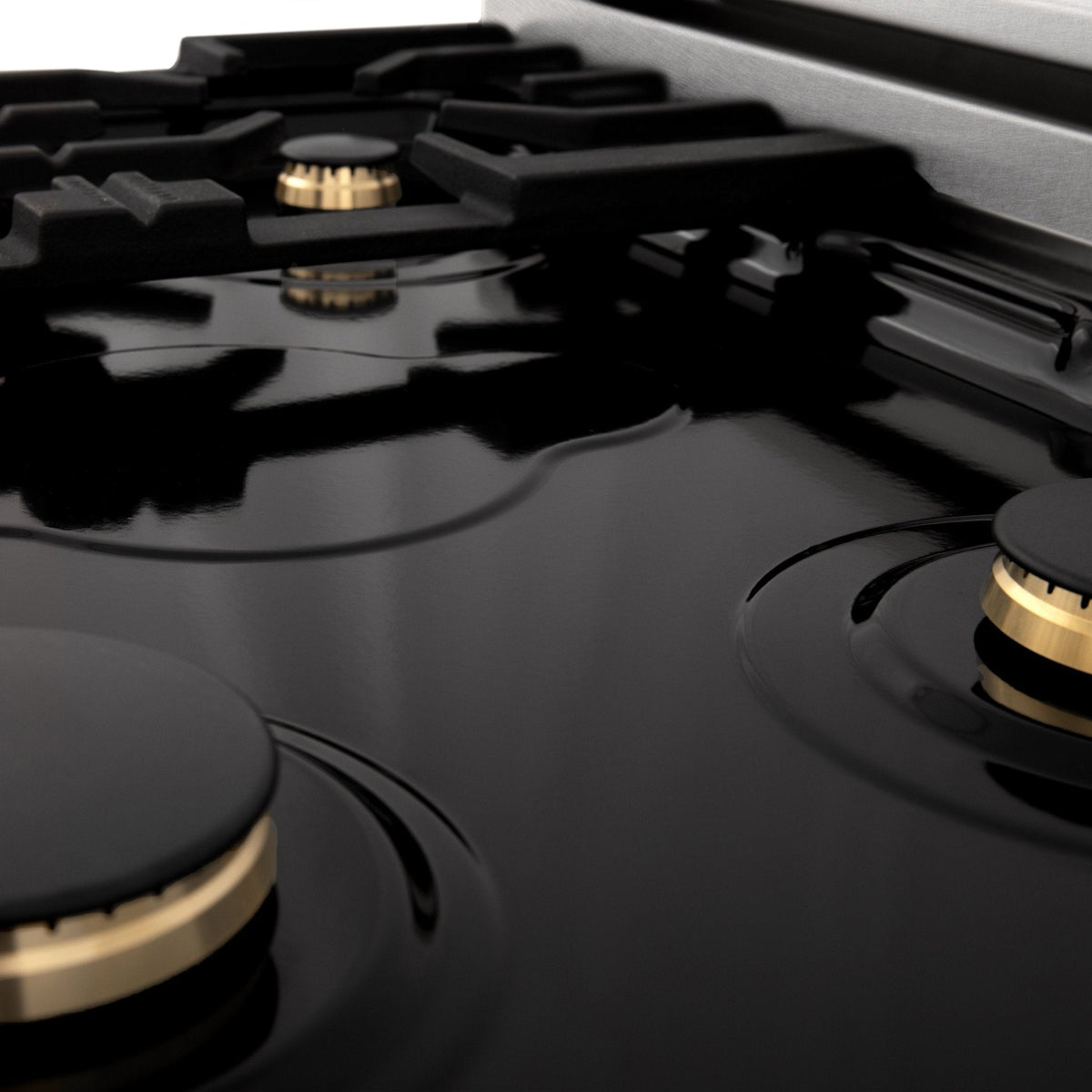

- Easy Cleaning – The hand-finished, one-piece porcelain cooktop is simple to clean and maintain.
- LP Conversion Kit – Includes a kit that changes the burners from natural gas to LP; a professional must perform the conversion.
- Lifetime Burner Warranty – Limited lifetime coverage on ZLINE Italian burners: replacement burners and caps, plus parts and labor for spark tips, if defective in materials or workmanship.
- Manufacturer Warranty – 1-year parts and service warranty.
Key specifications
| Product Depth (in.) | 27.50 |
| Product Width (in.) | 47.75 |
| Product Height (in.) | 36.13 |
| Oven Interior Dimensions (in) | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth With Door(s) Open 90 Degrees (in.) | 41.8 |
| Range Size (Width) | 48 in. |
| Appliance Category | Dual Fuel Range |
| Color/ Finish Family | Satin Stainless Steel with White Matte Door |
| Hardware Color/Finish | Matte Black |
| Back Left Burner BTU | 10000 |
| Back Left Middle Burner BTU | 12500 |
| Back Right Burner BTU | 10000 |
| Front Left Burner BTU | 18000 |
| Front Left Middle Burner BTU | 4500 |
| Front Right Burner BTU | 18000 |
| Fish Burner BTU | 12500 |
| Total BTUs | 85500 |
| Cooktop Features | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Control Type | Manual Front Control |
| Capacity of Oven (cu. ft.) | 6 (2 + 4) |
| Product Weight (lb.) | 270 |
| Fuel Type | Convection Electric Oven- Gas Cooktop |
| Oven Features | Manual Clean- Convection Electric- 6.0 cu.ft. deep oven- Triple Glass Window- Dual Lighting- Professional Aluminum Mesh Seal |
| Voltage | 240vac |
| Frequency | 60Hz |
| Amps | 30A |
| Convection Fan | Yes |
| Certifications and Listings | CSA Listed |
| Warranty | 1 year parts and service, limited lifetime warranty on burners |
Good to know
- Voltage: Requires a minimum of 220V-240V/60HZ/50A.
- Installation and Operation Guide: ZLINE Dual Fuel.pdf.
