ZLINE 34" Stainless Steel Under Cabinet Range Hood Insert, 698-34
- Regular Price
- $722.49
- Sale Price
- $722.49
- Regular Price
- $849.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.

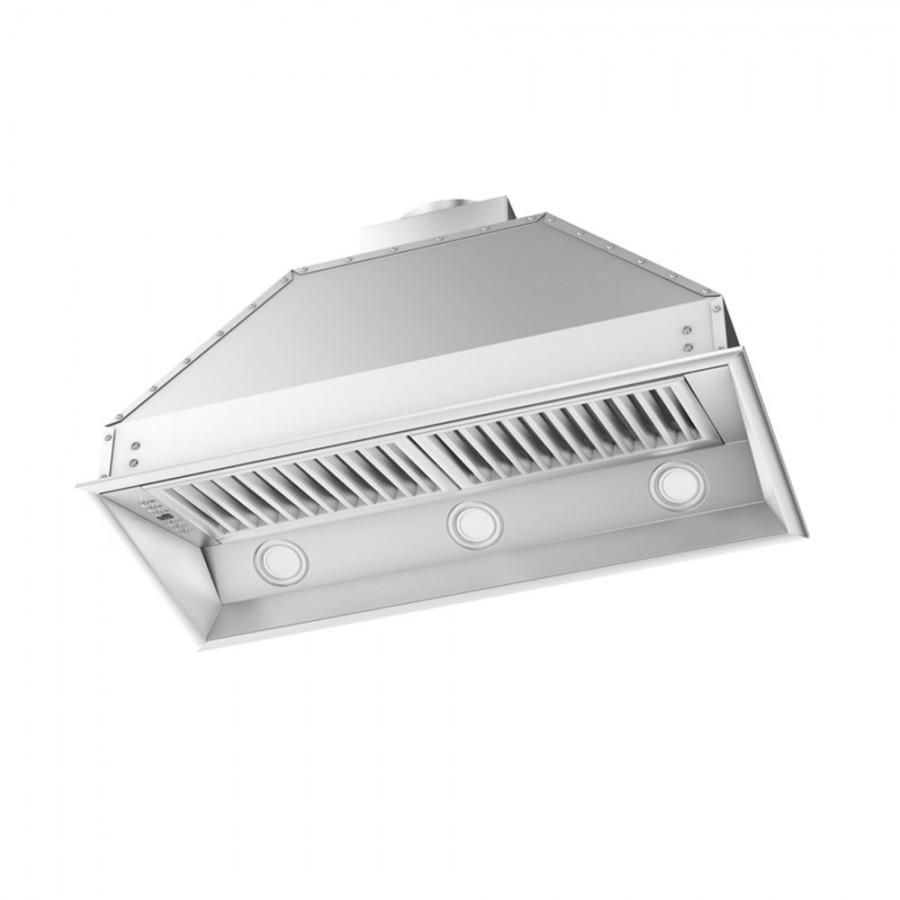

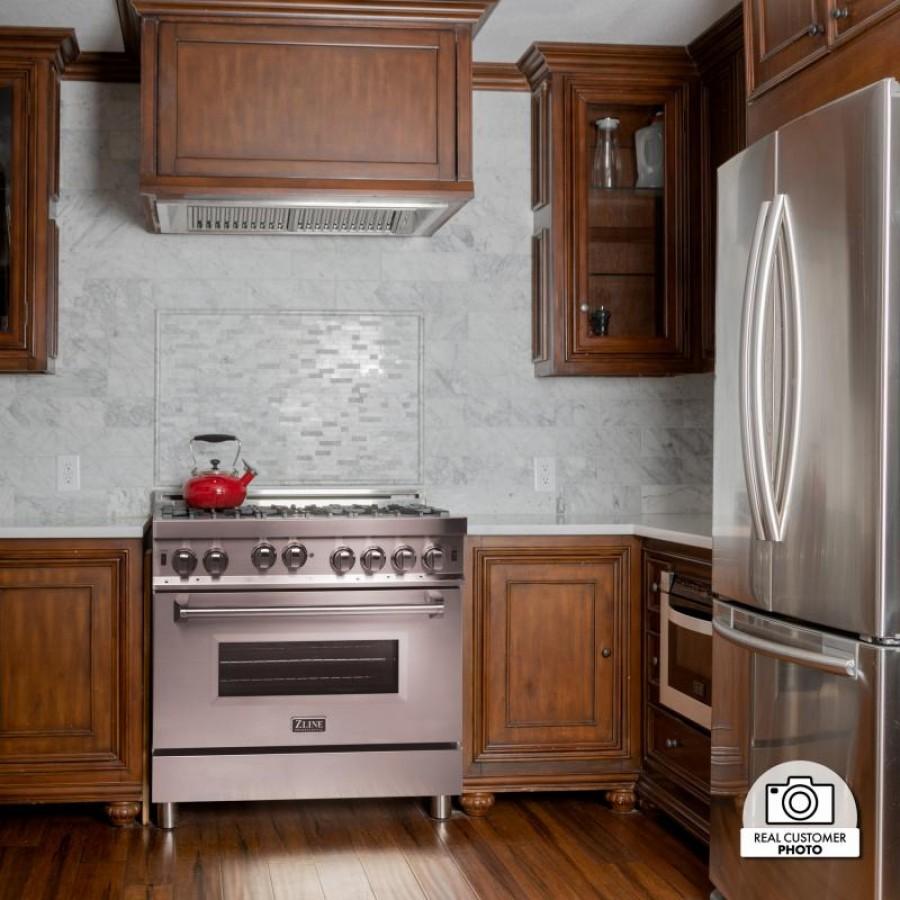

ZLINE's 34 in. ducted range hood insert (698-34) for wall mounting is made of brushed 430-grade stainless steel. It reaches up to 700 CFM and is built to fit inside custom-built cabinetry.
34"wide
700CFM max
3-yearwarranty
Why it stands out

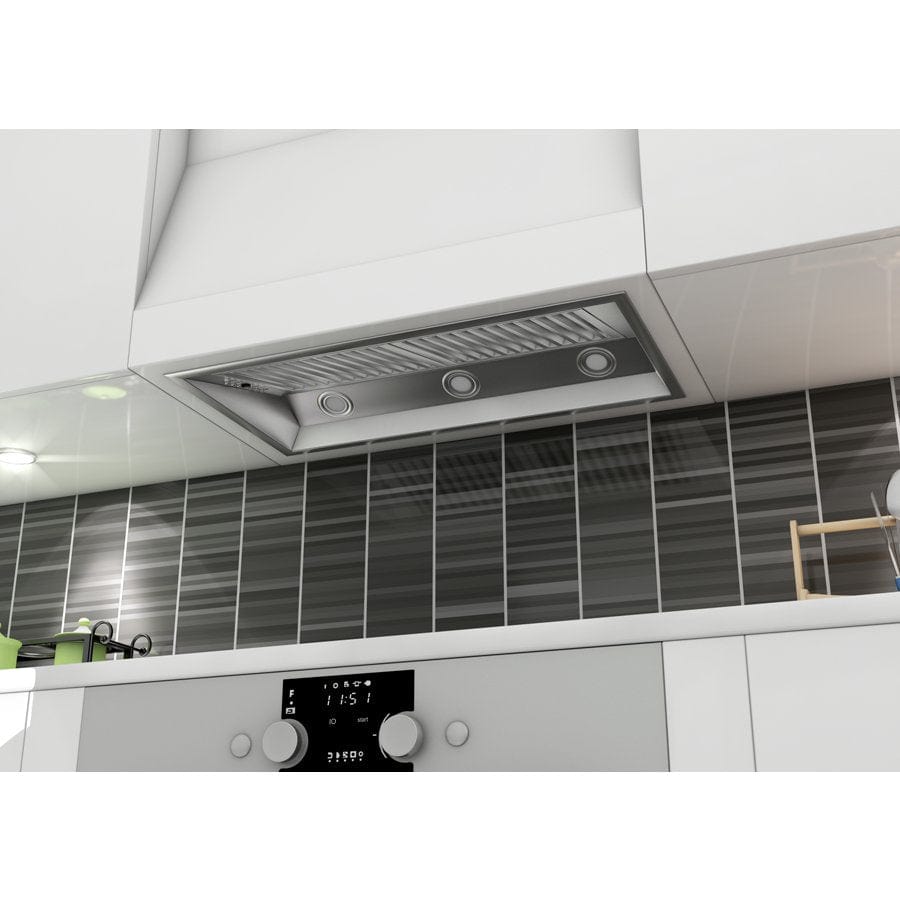

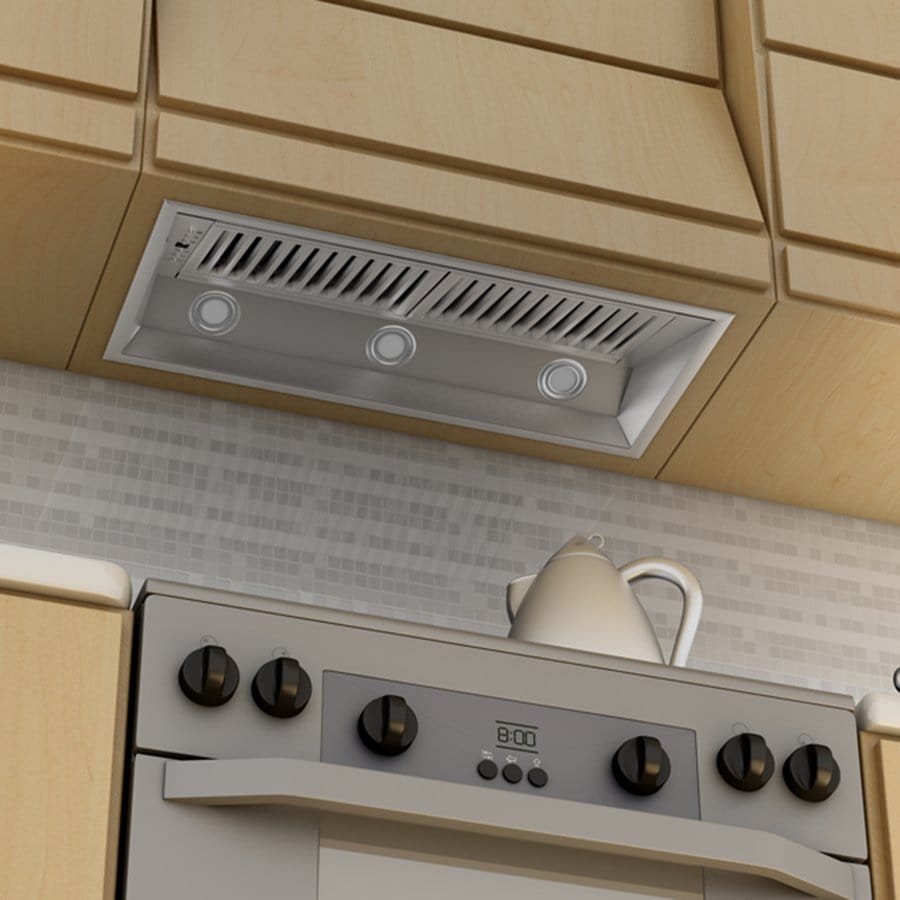

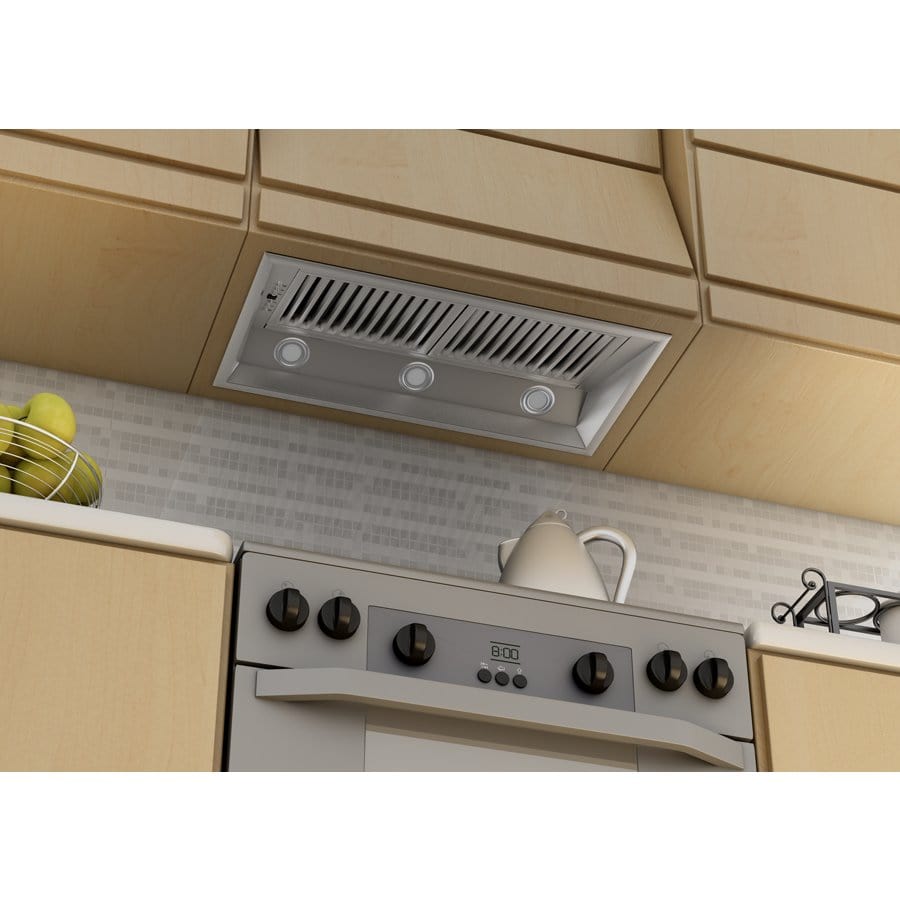

- Integrated Insert Design – Designed to install inside custom cabinetry, this insert provides full ventilation power without a visible outer shell.
- Corrosion-Resistant Steel – Brushed 430-grade stainless steel resists rust and corrosion for long-lasting durability.
- Push Button Controls – Push button controls adjust fan speed and lighting.
- 4-Speed Fan – Fan speeds are 280/420/560/700 CFM, so airflow can match the cooking.
- 700 CFM Maximum – The top speed of 700 CFM moves a large volume of air away from the cooking area.

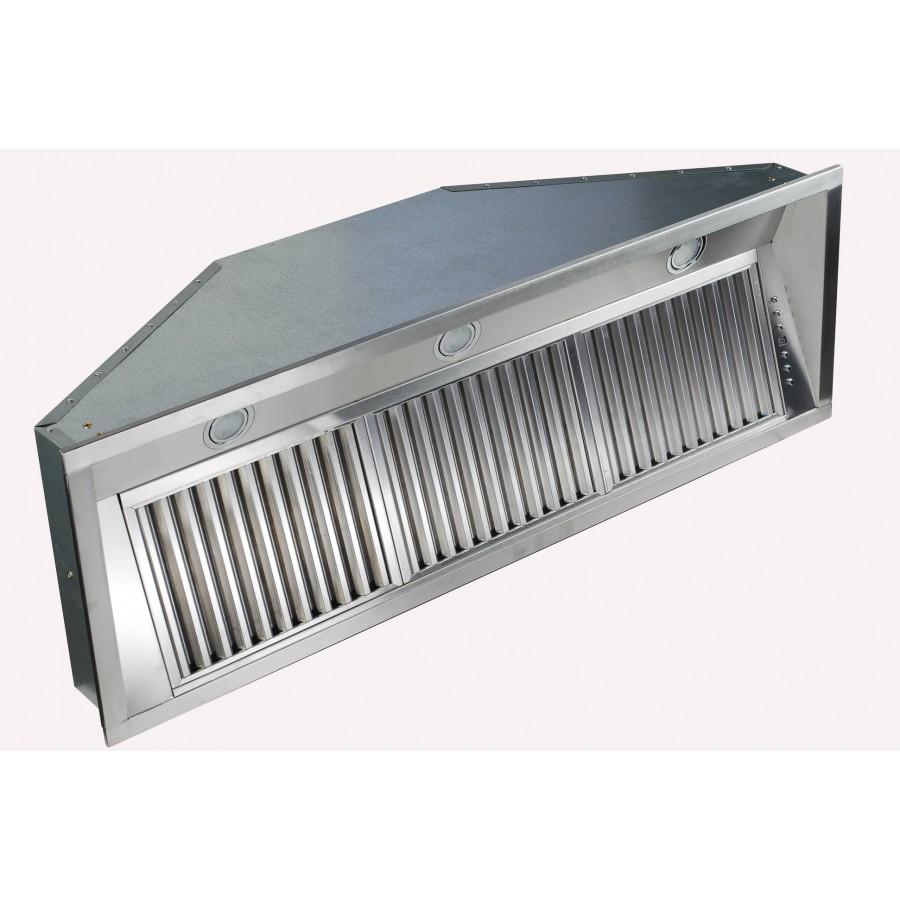

- Minimal Cleaning – Dishwasher-safe stainless steel baffle filters remove easily for regular cleaning.

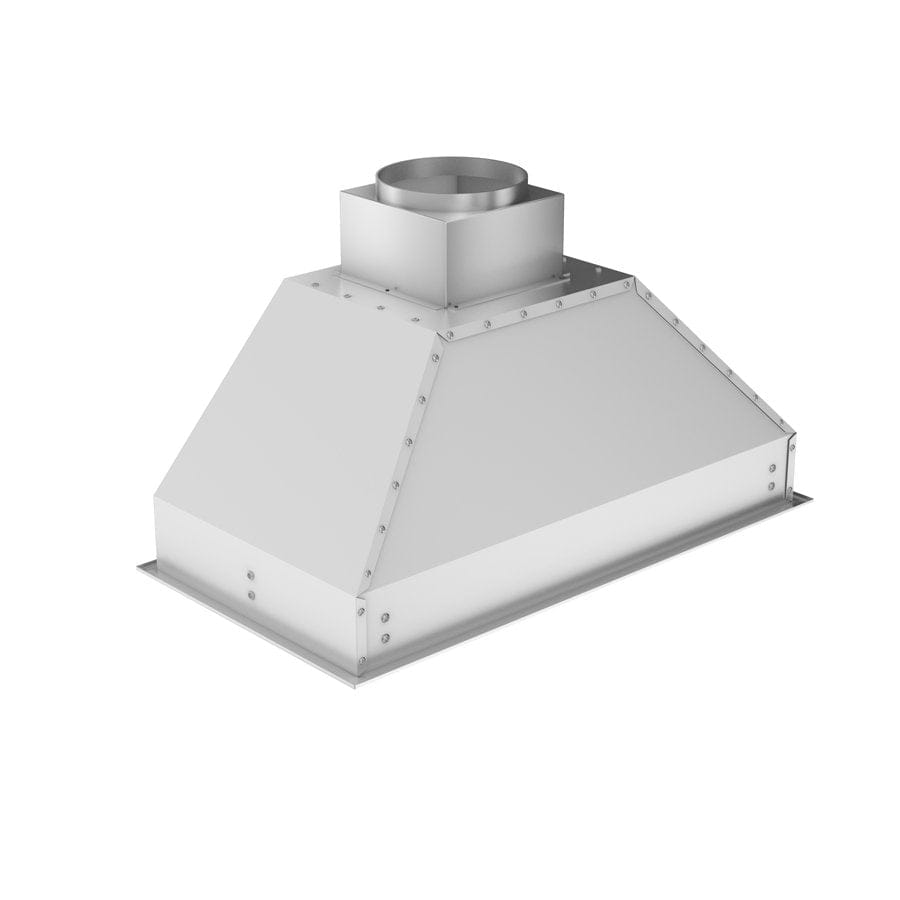

- Standard Duct Size – An 8 in. diameter duct transition piece is included, and the hood suits standard round ductwork.
More features

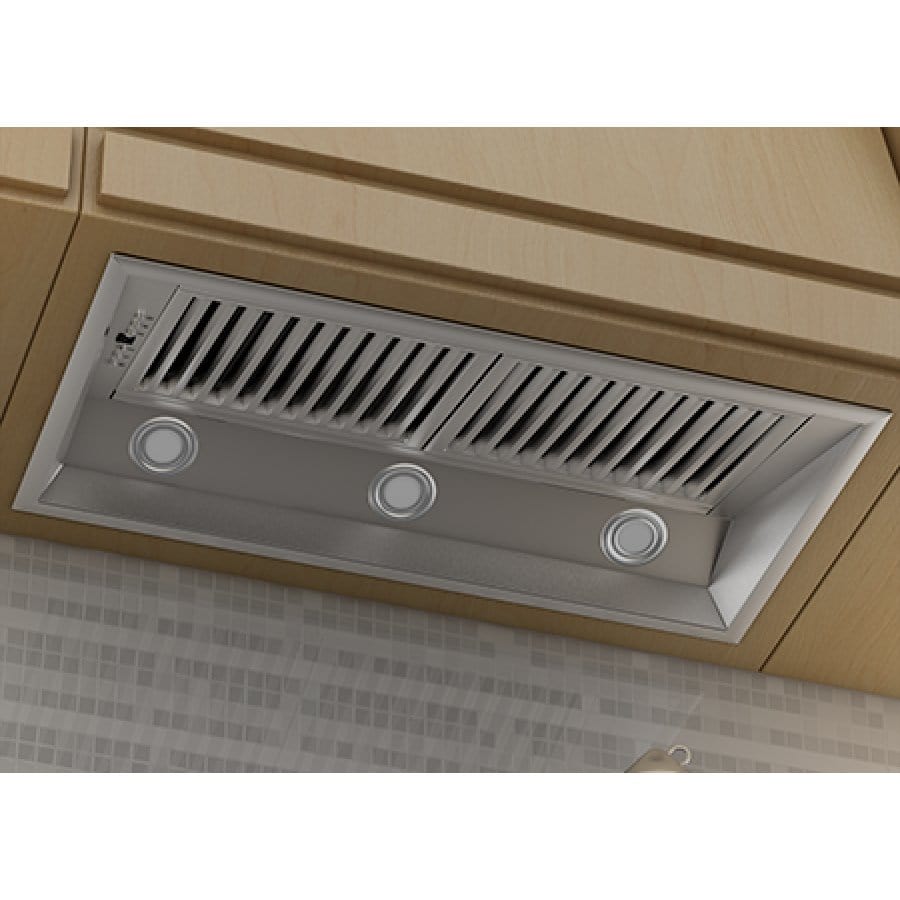

- LED Lighting – Energy-efficient LED lights illuminate the cooking surface.
- Electrical Requirements – Plug type is NEMA 5-15 (3-wire), and the appliance needs a dedicated 15-amp, 120V, 60Hz circuit.
- Parts Warranty – 3-year parts-only warranty plus a lifetime motor warranty.

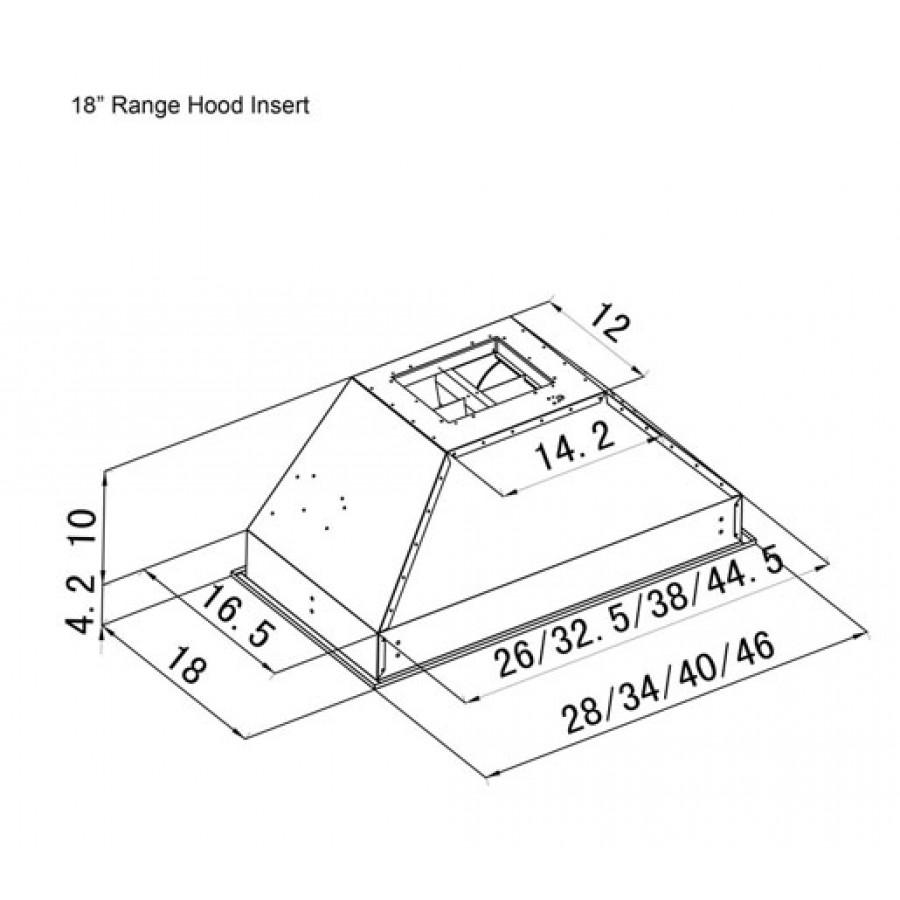

Key specifications
| Product Depth (in.) | 18 |
| Product Width (in.) | 34 |
| Product Height (in.) | 14.625 |
| Appliance Category | Insert Range Hood |
| Color/ Finish Family | Brushed 430 Stainless Steel |
| Airflow (Q/L/M/H) | 280/420/560/700 |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Insert |
| Number of Lights | 3 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.) | 45 |
| Decibels | 30/41/49/52 |
| Duct Size | 8 |
| Voltage | 110 |
| Amps | 5 |
| Certifications and Listings | ETL Listed,CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Good to know
- Ductless/recirculating operation is not available for this model.
- Not rated for outdoor use.
- Also available in 28 in. (698-28), 40 in. (698-40) and 46 in. (698-46).
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
