ZLINE 30" Wooden Wall Range Hood in Cottage White, KBTT-30
- Regular Price
- $818.99
- Sale Price
- $818.99
- Regular Price
- $909.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
The ZLINE 30 in. ducted wooden wall mount range hood (KBTT-30) has a Cottage White pine finish with a stainless steel inner frame. Its fan runs at 4 speeds up to 400 CFM.
30"wide
400CFM max
3-yearwarranty
Why it stands out
- Wall Mount Design – This chimney-style hood mounts directly to the wall above the cooktop and is made to fit into custom cabinetry.
- Cottage White Finish – Hand-crafted pine in a cottage white finish, with an inner frame of stainless steel, gives a rustic look.
- Control Panel – Easy push-button controls adjust the fan speed and lighting.
- Four Fan Speeds – Air flow choices are 120, 240, 320, and 400 CFM.
- Strong Ventilation – The top speed of 400 CFM moves a large volume of air away from the cooktop.
- Dishwasher-Safe Filters – Stainless steel baffle filters come out easily and can go in the dishwasher for routine cleaning.
- LED Lighting – Energy-efficient LED lights illuminate the cooking surface below.
More features
- Electrical Requirements – Must be connected to a dedicated 15-amp, 120V, 60Hz circuit using a NEMA 5-15 3-wire plug.
- Standard Ductwork – It suits standard round ductwork; a 6 in. diameter ducting transition piece is included.
- Warranty Terms – Parts-only coverage lasts 3 years, and the motor is covered for life.
- Assembly Required – Ships in multiple boxes and needs minimal assembly on arrival.
Key specifications
| Product Depth (in.) | 18.0 |
| Product Width (in.) | 30 |
| Product Height (in.) | 13.3 |

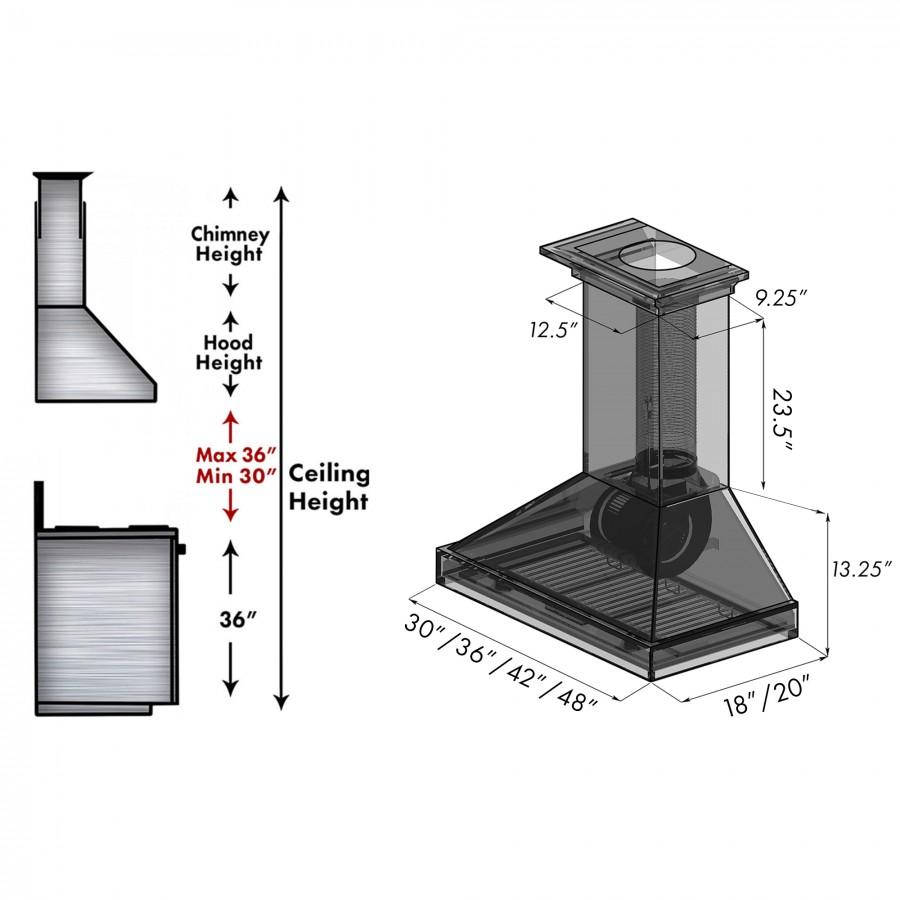

| Chimney Dimensions | 12.5" W x 9.25" D x 23.5" H |
| Appliance Category | Wall Mount Range Hood |
| Color/ Finish Family | Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.) | 55 |
| Decibels | 51/55/58/61 |
| Duct Size | 6 |
| Voltage | 110 |
| Amps | 3.5 |
| Certifications and Listings | ETL Listed,CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Good to know
- Recirculating (ductless) operation requires CF1 filters and CM6V-KBTT.
- Ceilings up to 9.5 ft need no extension or short kit; ceilings 9.5 to 12.5 ft need extension KBTT-E.
- Crown molding model: CM6V-KBTT.
- Also available in 36 in. (KBTT-36), 42 in. (KBTT-42) and 48 in. (KBTT-48).
- Not certified for outdoor use.
- Extensions, short kits, filters and crown molding are non-returnable.
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
