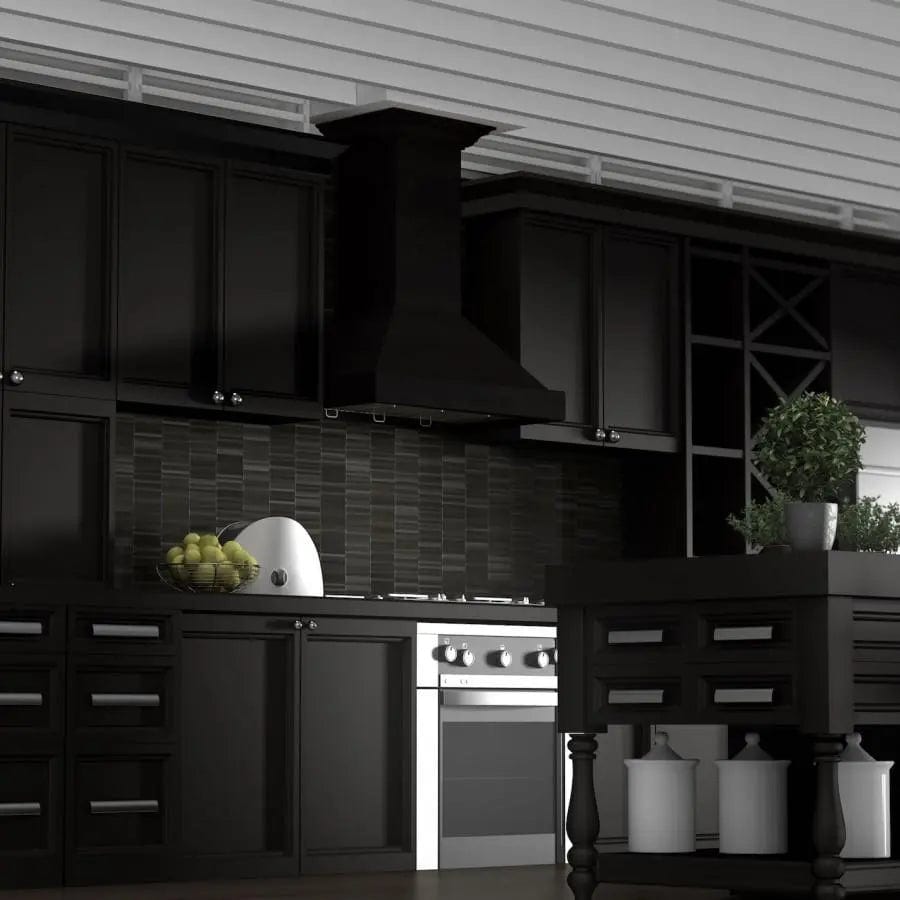

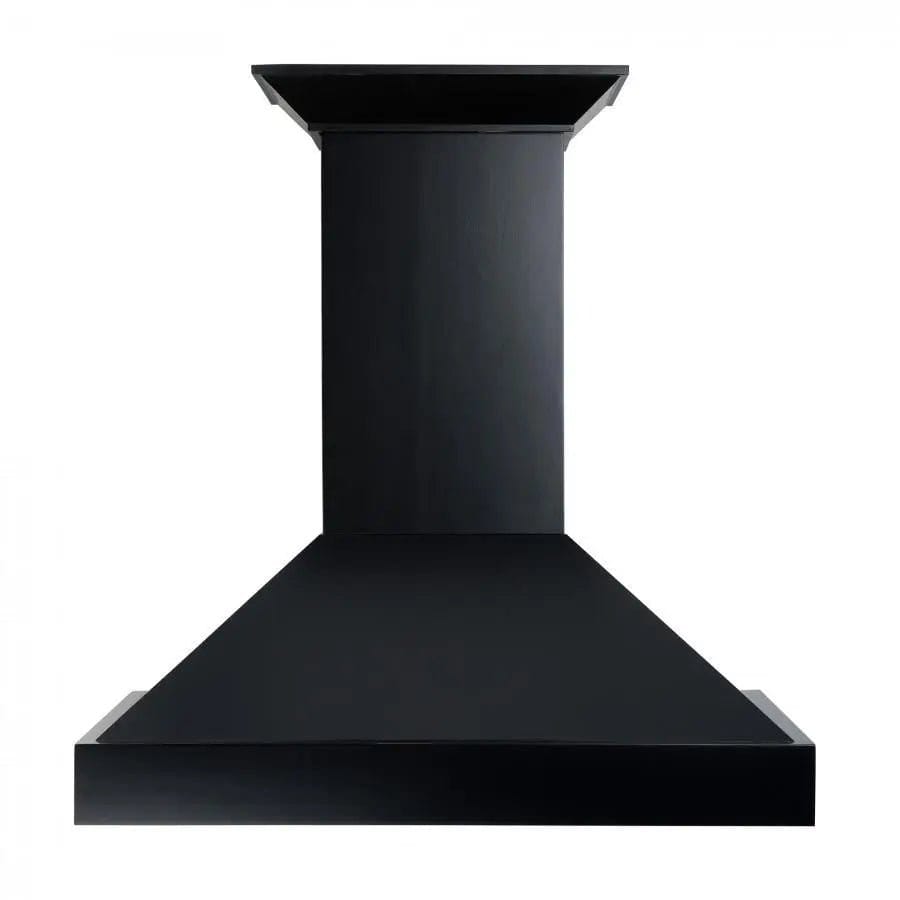

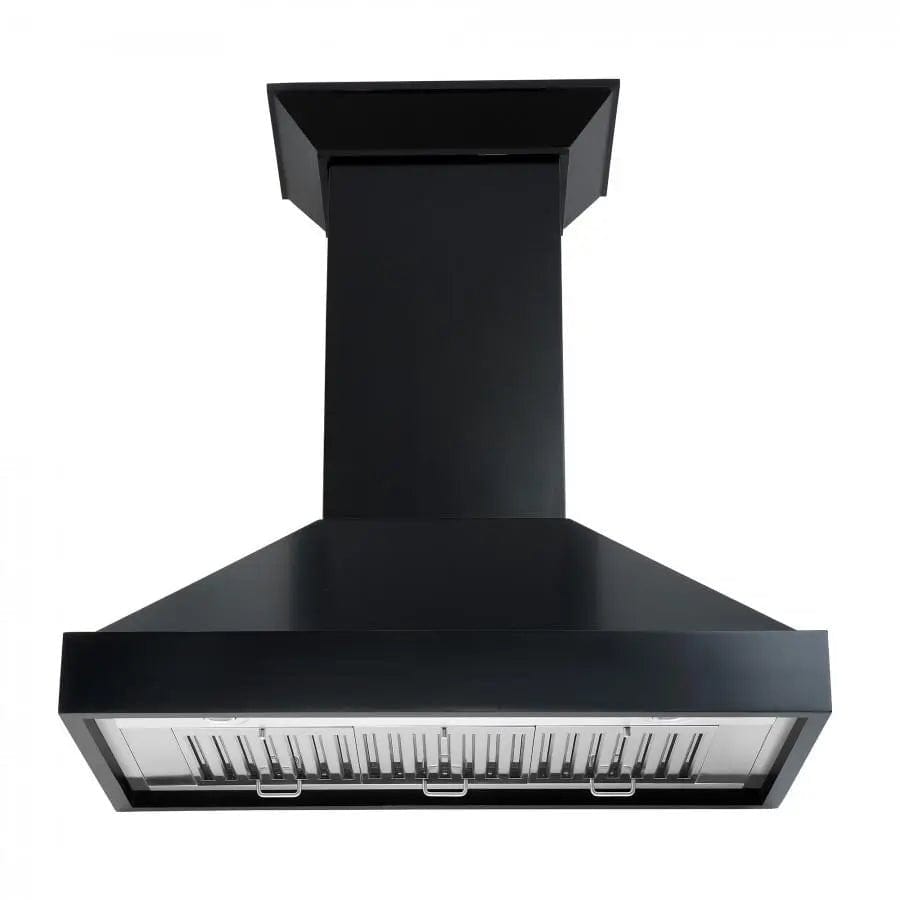

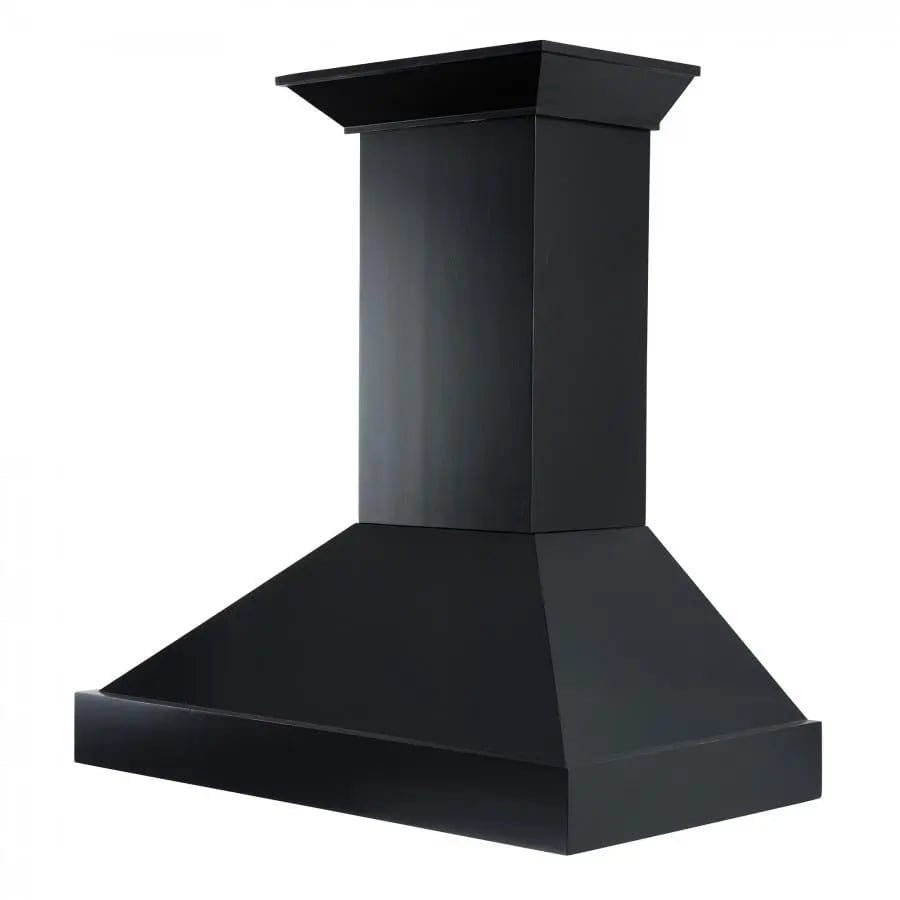

ZLINE 30" Designer Series Wooden Wall Range Hood in Black, KBCC-30
- Regular Price
- $818.99
- Sale Price
- $818.99
- Regular Price
- $909.99
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
This is the ZLINE 30" Designer Series Wooden Wall Range Hood in Black (KBCC-30). At a glance: 30" wide, up to 400 CFM, 3-year manufacturer warranty.
30"wide
400CFM max
3-yearwarranty
Why it stands out
- Convertible Venting – Vents outside, or recirculates without ducts using charcoal filters (model CF1, not included) that reduce odors.

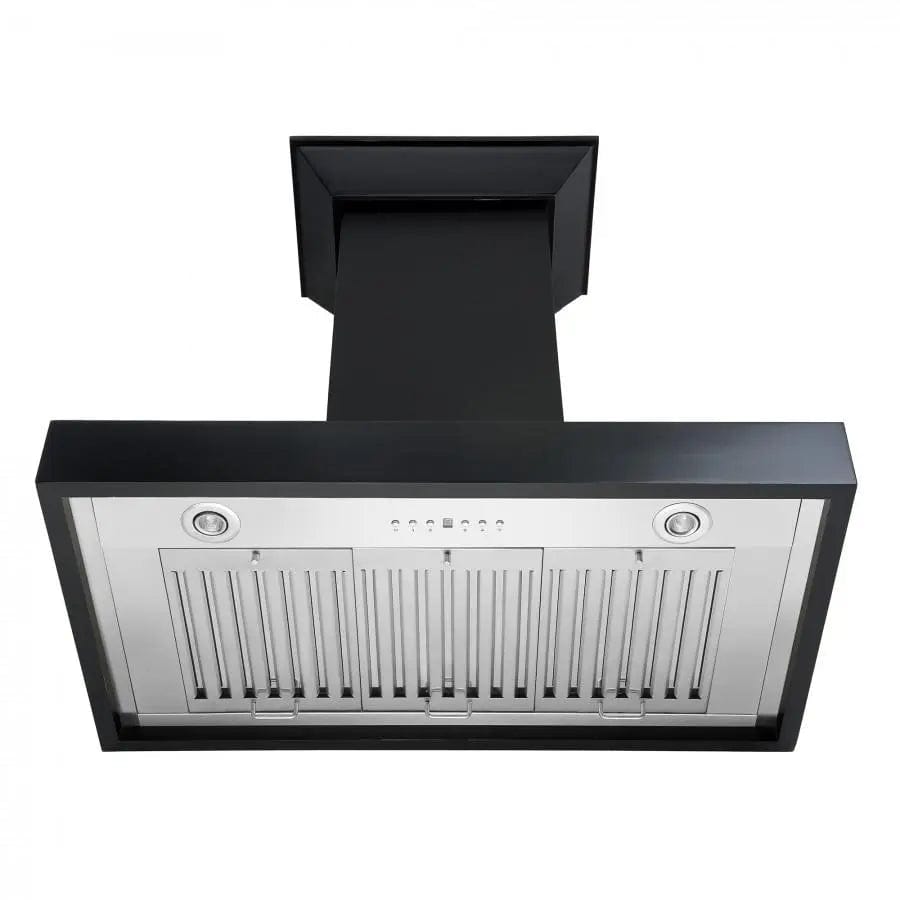

- Push Button Controls – Push buttons set the fan speed and the lighting.
- Four Fan Speeds – Speeds of 120, 240, 320, and 400 CFM let you match airflow to what you cook.
- 400 CFM Maximum – The top setting moves 400 CFM of air away from the cooking area.
- Top Duct Connection – Ductwork attaches at the top for venting outside.

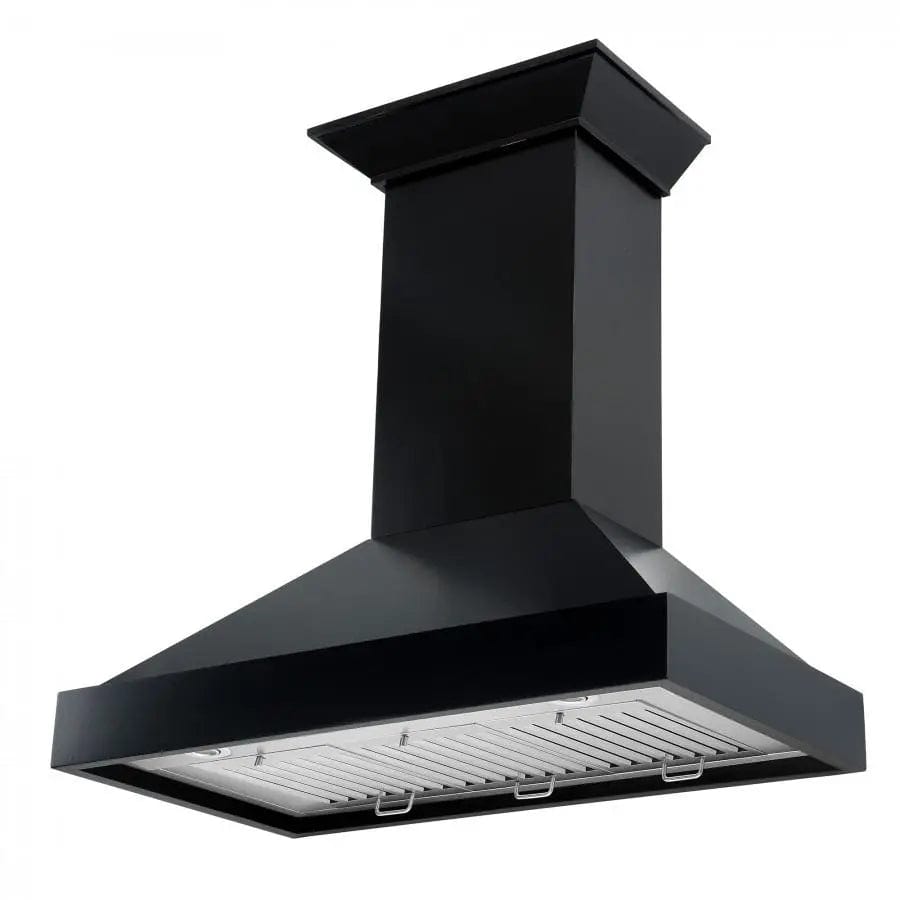

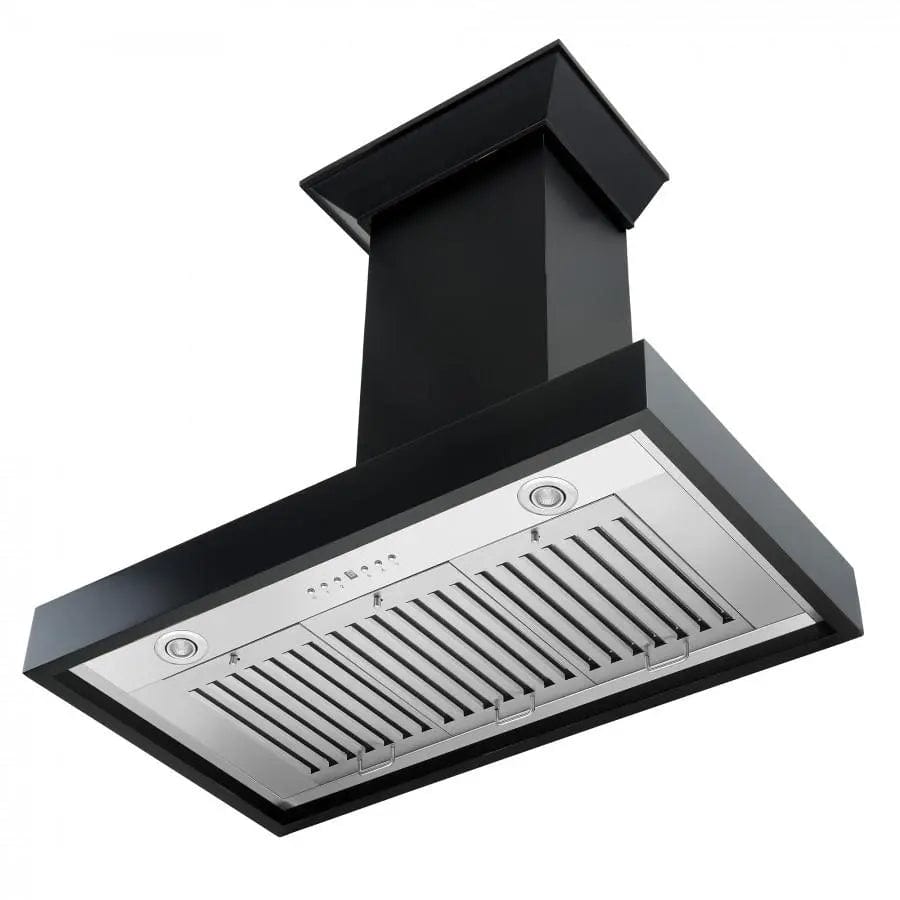

- Baffle Filters – Stainless steel baffle filters are dishwasher-safe.

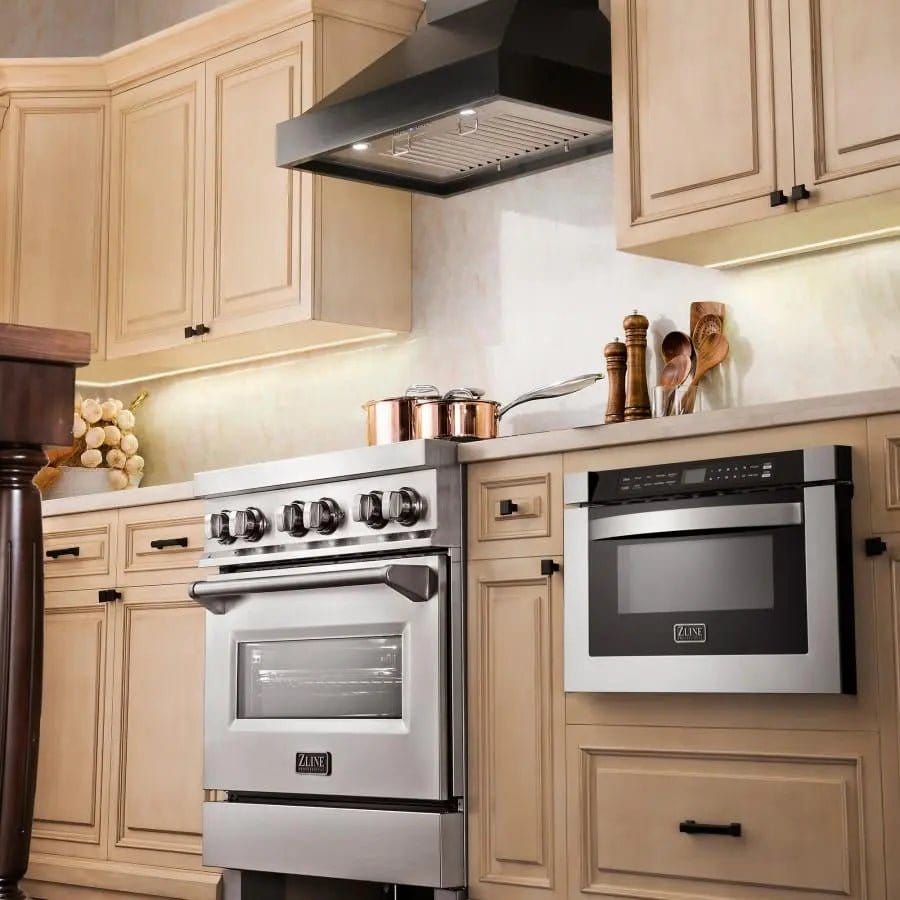

- LED Lighting – LED lights shine down on the cooktop.
More features
- Standard Duct Size – Fits standard round ductwork.
- Warranty Terms – 3-year parts warranty and lifetime motor warranty.
- Black Painted Solid Birch Wood Exterior || Brushed 430 Stainless Steel Insert
- Voltage Rating – 110V/60HZ
- Assembly Required – Ships in multiple boxes and needs minimal assembly on arrival.
Key specifications

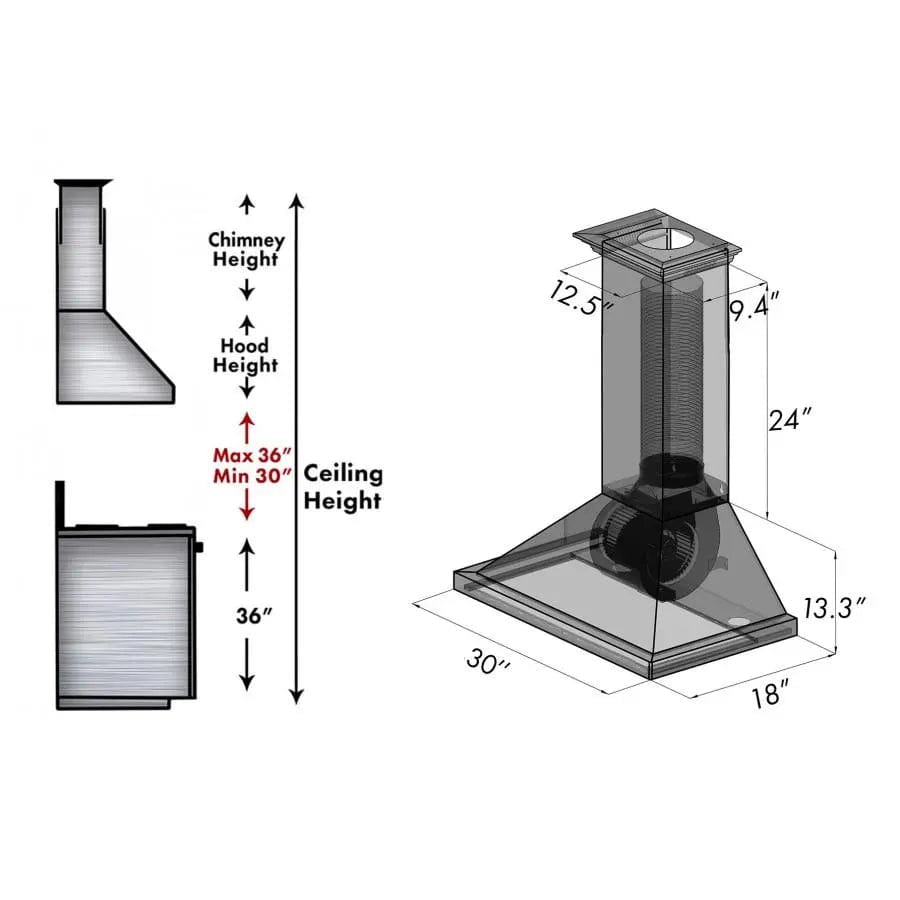

| Product Depth (in.) | 18.0 |
| Product Width (in.) | 30 |
| Product Height (in.) | 13.3 |
| Chimney Dimensions | 12.5" W x 9.25" D x 23.5" H |
| Appliance Category | Wall Mount Range Hood |
| Color/ Finish Family | Solid Wood Exterior with Stainless Steel Insert, Walnut-toned Body & Chimney, Antigua (Black) Front Band |
| Airflow (Q/L/M/H) | 120/240/320/400 |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Product Weight (lb.) | 55 |
| Decibels | 51/55/58/61 |
| Duct Size | 6 |
| Voltage | 110 |
| Amps | 3.5 |
| Certifications and Listings | ETL Listed,CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Good to know
- Ductless/Recirculate Option - Yes (Requires CM6V-KBCC & CF1 filters).
- Less 8’ - No Ext or Short Kit required.
- 8’ to 9.5' - No Ext or Short Kit required.
- Crown Molding(s) - CM6V-KBCC.
- Also Available in - 36"( KBCC -36 ).
- Extensions, Short Kits, Filters, and Crown Molding are non-returnable.
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
