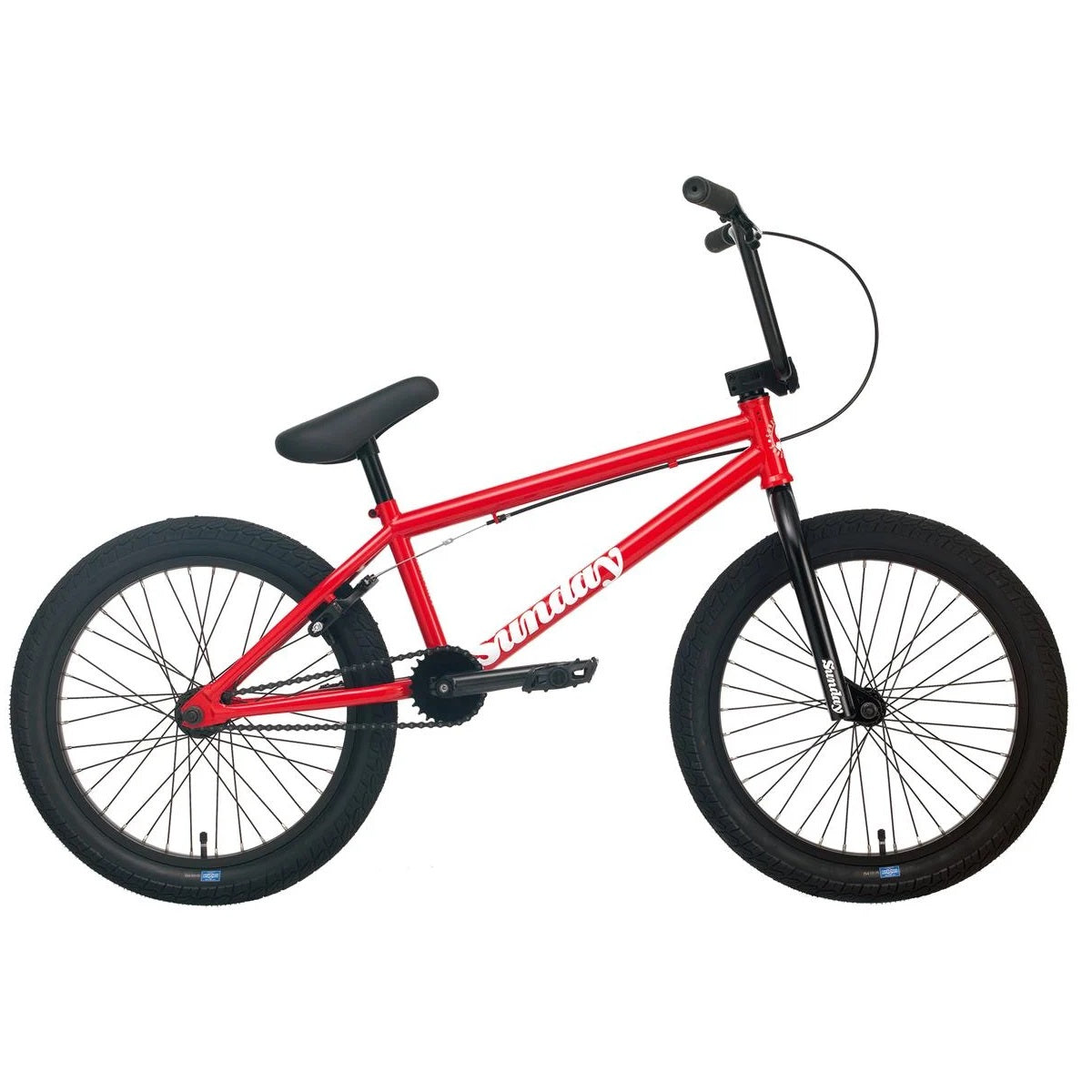

Sunday Blueprint 20″ Complete BMX Bike - Gloss Fire Engine Red
- Regular Price
- $399.90
- Sale Price
- $399.90
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
Free Returns
Don't love it? Return it free within 60 days.
The Sunday Blueprint 20" BMX Bike is designed as an entry level bike to provide a durable ride to learn how to shred. Components such as the Odyssey Springfield brakes, FSA integrated headset, and 3-piece chromoly cranks create a bike that is reliable meaning more riding and less downtime. The Sunday Blueprint is built for beginners to promote growth and learning.
Specifications:
- Frame: Sunday Blueprint, Integrated Headtube
- Fork: Sunday Blueprint, 2-Piece Steerer Tube, Welded Pre-Load
- Bars: Sunday, 2-Piece (28.5" Width) (9" Rise) (12° Backsweep) (4° Upsweep)
- Stem: Sunday Freeze Front Load (48mm)
- Headset: FSA Integrated (1-1/8")
- Preload Cap: FSA, Aluminum
- Grips: Sunday Cornerstone
- Cranks: 3-Piece, Chromoly (160mm Length)
- Bottom Bracket: Loose Ball American (19mm)
- Pedals: Wellgo Platform, Plastic
- Chain: KMC S1
- Sprocket: Sunday S-Logo, Steel (25 Tooth)
- Front Hub: Sunday Low-Flange Loose Ball (3/8" Axle)
- Rear Hub: Sunday Cassette (14mm Axle)
- Driver: 9 Tooth
- Spokes: Steel, Black (14 Gauge)
- Front Rim: P-7X, Aluminum (20") (36 Hole)
- Rear Rim: P-7X, Aluminum (20") (36 Hole)
- Front Tire: Sunday Current (20 x 2.4")
- Rear Tire: Sunday Current (20 x 2.4")
- Seat: Sunday Badge (Combo)
- Seat Post: Combo (25.4mm)
- Seat Clamp: Integrated
- Lever: Aluminum (U-Brake Compatible)
- Brake Cable: Odyssey Quik Slic
- Brakes: Odyssey Springfield U-Brake
- Brake Mounts: Welded
- Gyro Tabs: Drilled (Not Included)
- Extras: N/A
- Color: Fire Engine Red
- Weight: 26 lbs
Frame Geometry:
- Toptube: 20"
- Headtube Angle: 75°
- Seattube Angle: 71°
- Chainstays: 13.2" - 13.5"
- BB Height: 11.5"
- Stand Over Height: 8.75"
- Sizing Guideline: 4' 10" - 5' 6" Rider Height
