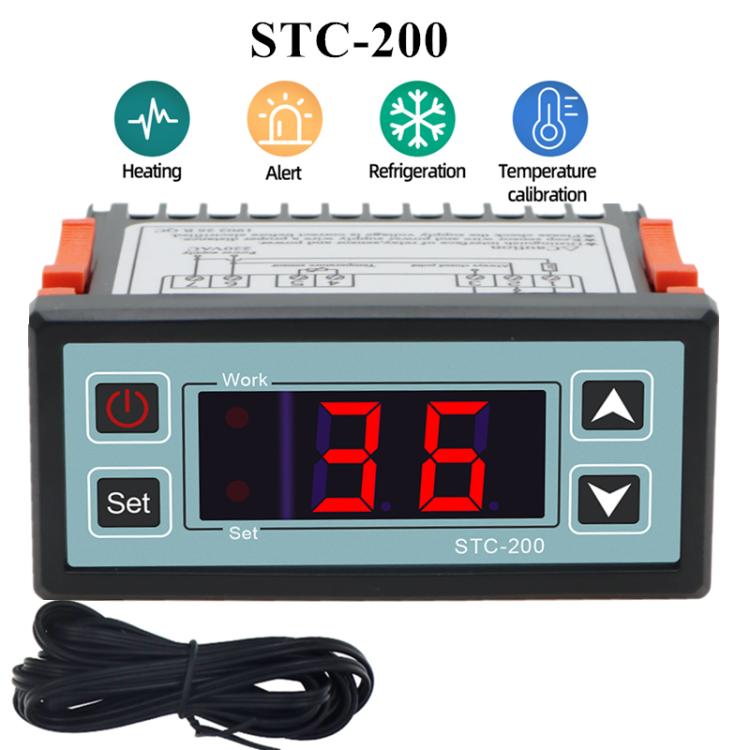

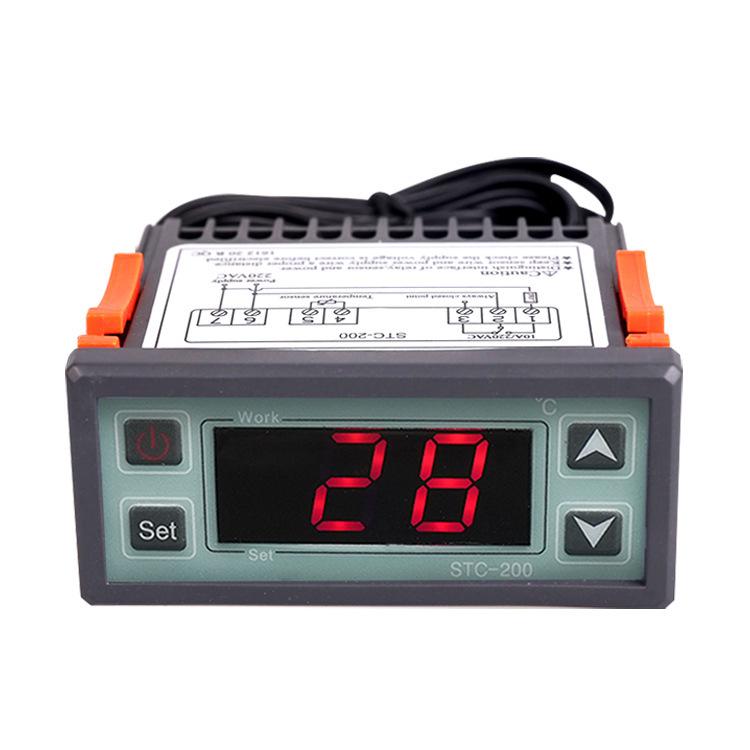

STC-200 Temperature Controller for Cold Storage & Chiller Units Cooling/Heating with Alarm Function, STC-200 220V
- Regular Price
- $7.29
- Sale Price
- $7.29
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full refund on unused items with tags, in undamaged original packaging. Return policy.
1. Power Supply: 220VAC +/-10%, 50/60Hz
2. Temperature Measurement Range: -40 to 99 degrees Celsius
3. Temperature Control Range: -40 to 70 degrees Celsius
4. Resolution: 1
5. Accuracy: +/-1 degree Celsius

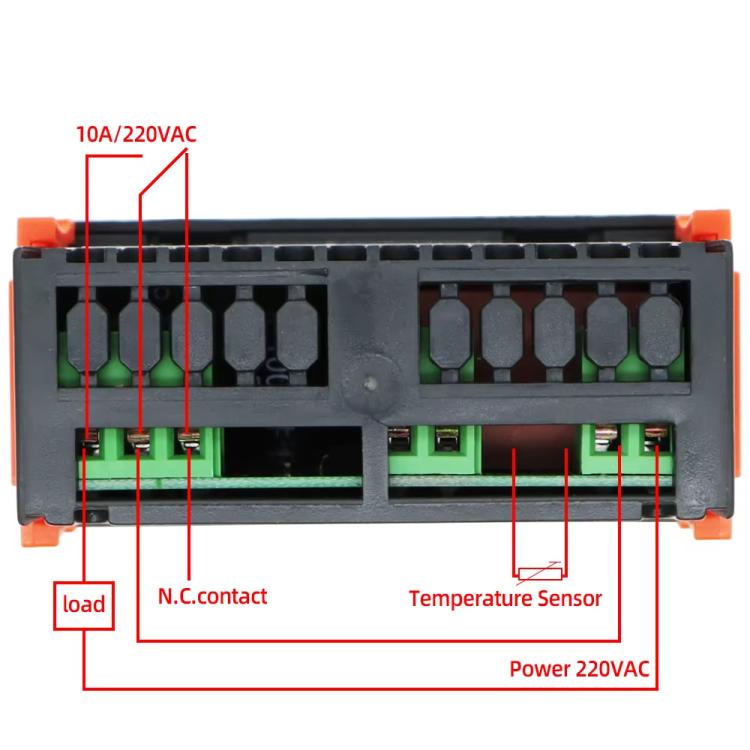

6. Relay Contact Capacity: 7A/250VAC
7. Sensor Type and Cable Length: NTC, 2 meters
8. Alarm Type: Buzzer (When "Alarm" mode is selected, it is a relay switch output)
9. Power Consumption: 5W

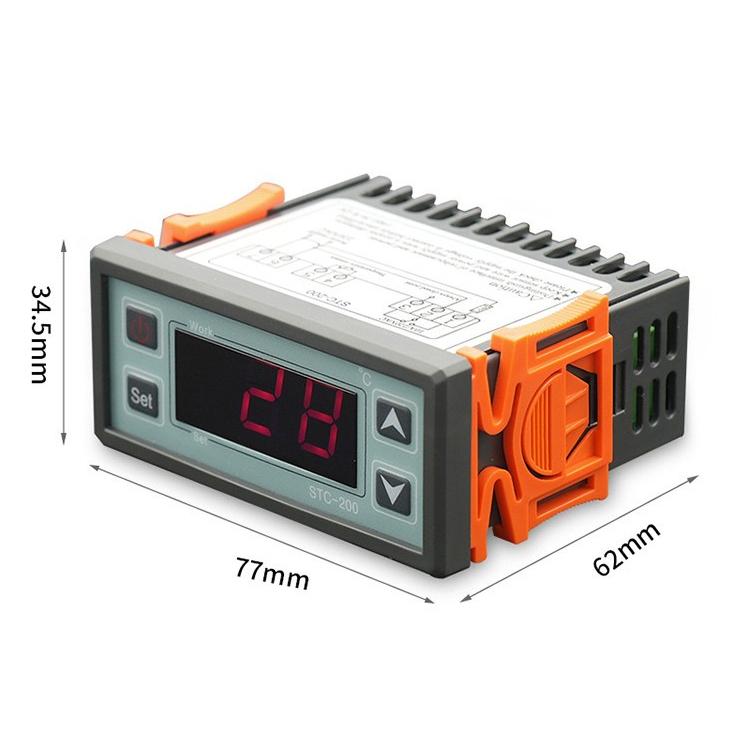

10. Overall Dimensions: 77.0 mm (Width) × 34.5 mm (Height) × 65.5 mm (Depth)
11. Installation Dimensions: 70.5 mm (Width) × 28.5 mm (Height)
12. Operating Ambient Temperature: -5 to 60 degrees Celsius
13. Operating Ambient Humidity: 20%RH~90%RH (non-condensing)
Specification:
