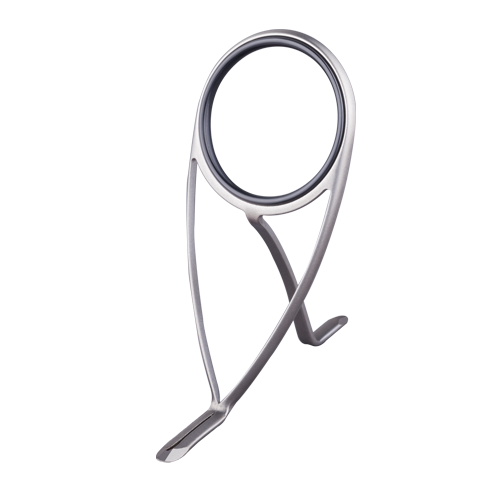

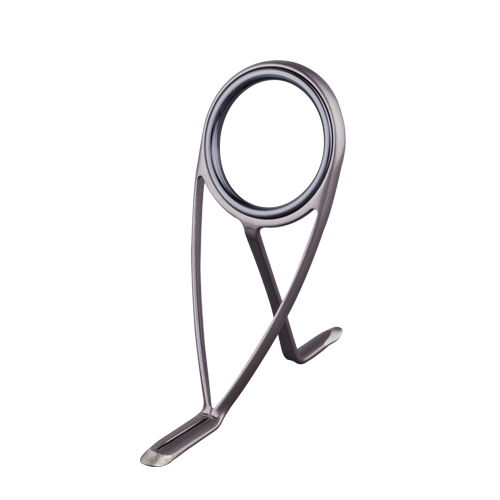

Seaguide Double-foot Guide XQHG
- Regular Price
- $4.68
- Sale Price
- $4.68
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
Build the rod around the way you fish.
Seaguide Double-foot Guide XQHG gives this part of the build a defined starting point.
Component match: Seaguide ONEGUIDE Series new high frame double-foot spinning guides.
Frame detail: Reverse deep drawn frame design.

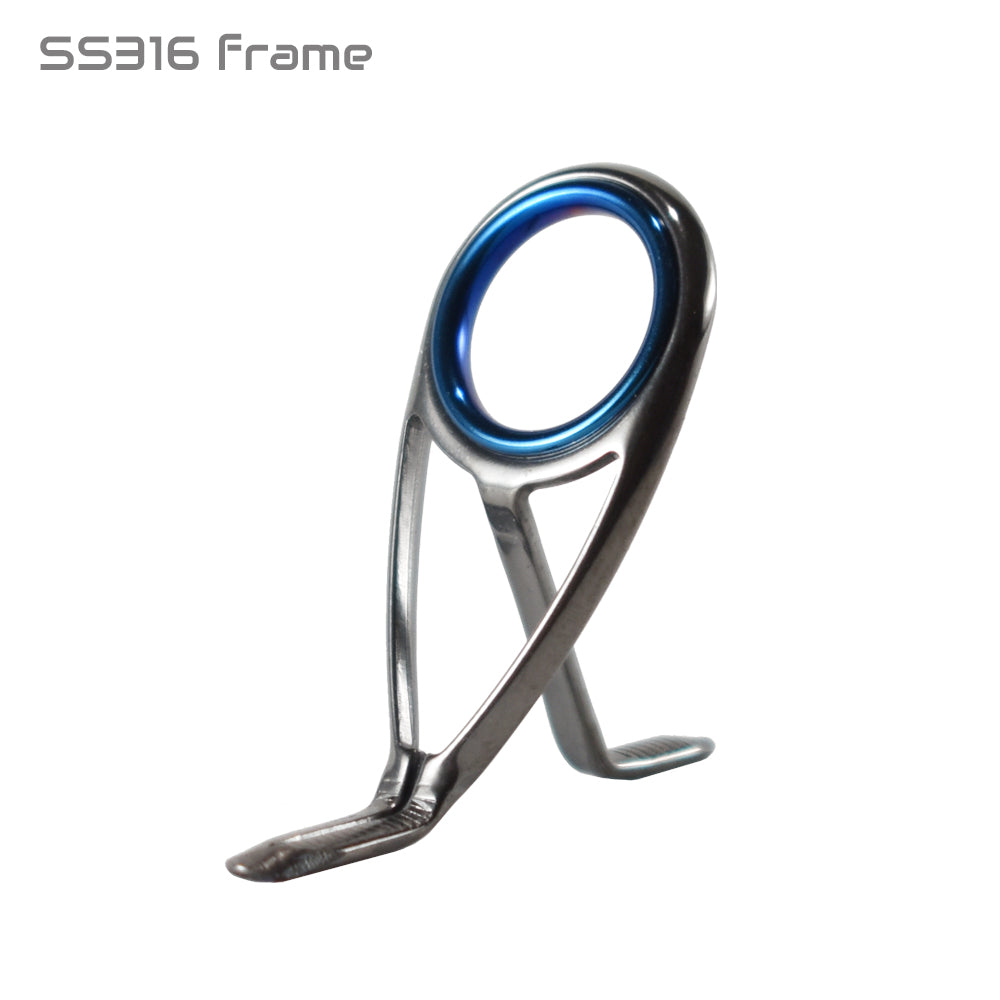

Build detail: Frame: SS316 Stainless Steel.
Bench fit: Position this component on the rod blank and check the guide alignment before fixing it in place.
Exact selection: Choose the listed ring options, color, size for the component your build requires.
Check the fit and make every part count.
Supplier specifications and sizing
- Seaguide ONEGUIDE™ Series new high frame double-foot spinning guides
- Reverse deep drawn frame design
- Frame: SS316 Stainless Steel
- Ring option: Silicon Nitride ring-RS, Zirconia ring-LS, Aluminum Oxide-LA
Manufacturer component dimensions
| size | material | Length (mm) | Length 2 (mm) | Length 3 (mm) | height |
|---|---|---|---|---|---|
| 12 | 316 Stainless Steel | 29.0 | 10.0 | 7.0 | 26.0 |
| 16 | 316 Stainless Steel | 37.0 | 12.0 | 8.0 | 35.0 |
| 20 | 316 Stainless Steel | 52.0 | 16.0 | 13.0 | 49.0 |
| 25 | 316 Stainless Steel | 54 | 17.0 | 13.0 | 55.0 |
| 30 | 316 Stainless Steel | 56.0 | 17.0 | 13.0 | 58.0 |
| 40 | 316 Stainless Steel | 76.0 | 21.0 | 15.0 | 76.0 |
