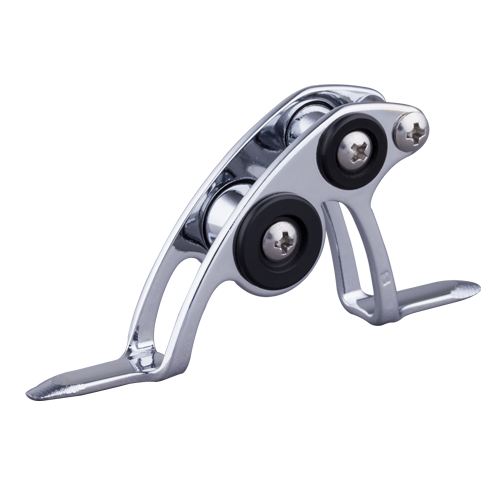

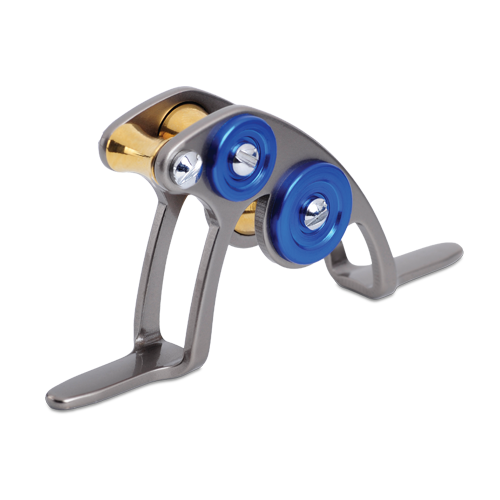

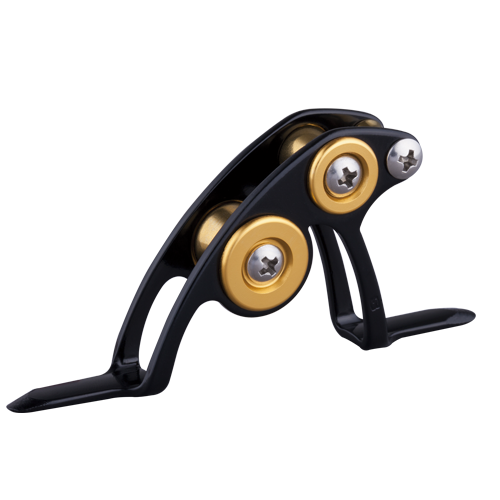

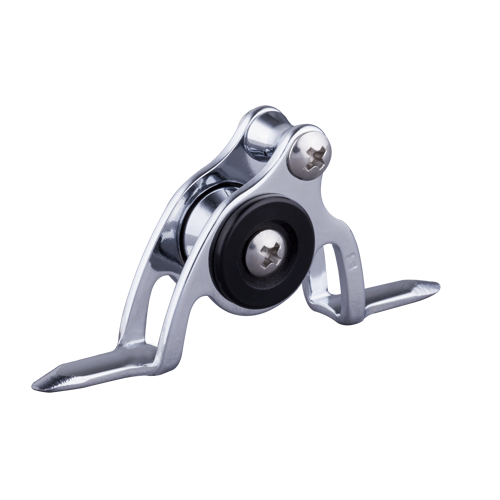

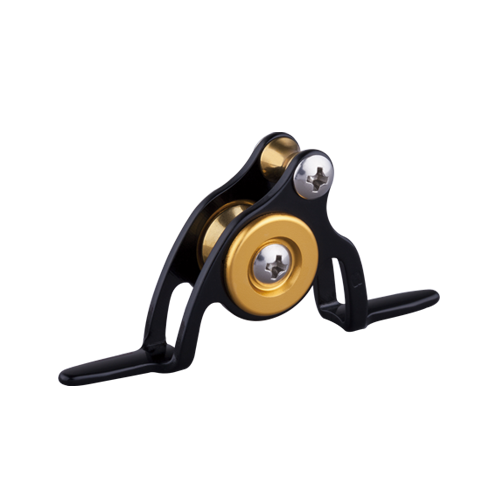

SEAGUIDE Boat Rod Guide XRHG
- Regular Price
- $17.90
- Sale Price
- $17.90
- Regular Price
- Unit Price
- per
Build the rod around the way you fish.
Seaguide Boat Rod Guide XRHG gives this part of the build a defined starting point.
Component match: Seaguide heavy duty boat rod guides.
Frame detail: Embedded roller design to prevent line from wedging between roller and frame.
Build detail: Aluminum side plates offer higher strength.
Bench fit: Position this component on the rod blank and check the guide alignment before fixing it in place.
Exact selection: Choose the listed color, size for the component your build requires.
Check the fit and make every part count.
WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Supplier specifications and sizing
- Seaguide heavy duty boat rod guides.
- Embedded roller design to prevent line from wedging between roller and frame
- Aluminum side plates offer higher strength
- Built-in Teflon bearing to reduce friction
- Lower gravity center to have better rod performance
- To be used with XRHT roller type tip-top guide
- Frame: SS316L Stainless Steel
WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Manufacturer component dimensions
| size | material | Length (mm) | Length 2 (mm) | height |
|---|---|---|---|---|
| 1 | 316 Stainless Steel | 60.5 | 13.5 | 26.5 |
| 2 | 316 Stainless Steel | 64.5 | 15.0 | 30.5 |
| 3 | 316 Stainless Steel | 71.0 | 17.0 | 32.5 |
| 4 | 316 Stainless Steel | 84.0 | 18.0 | 38.5 |
| 5 | 316 Stainless Steel | 92.0 | 18.5 | 44.5 |
