HD Shuttle Docking System

Summit HD Shuttle Docking System

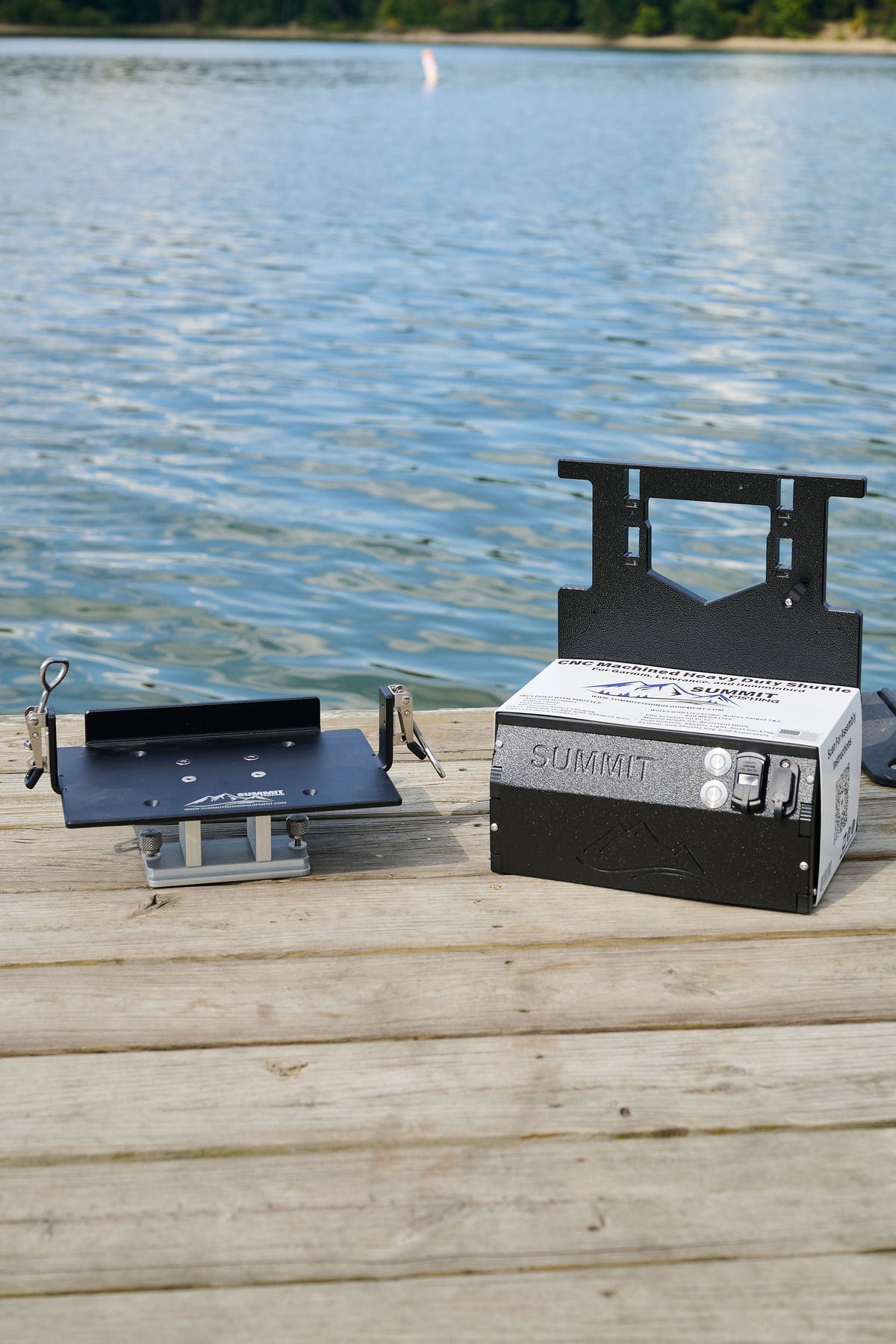

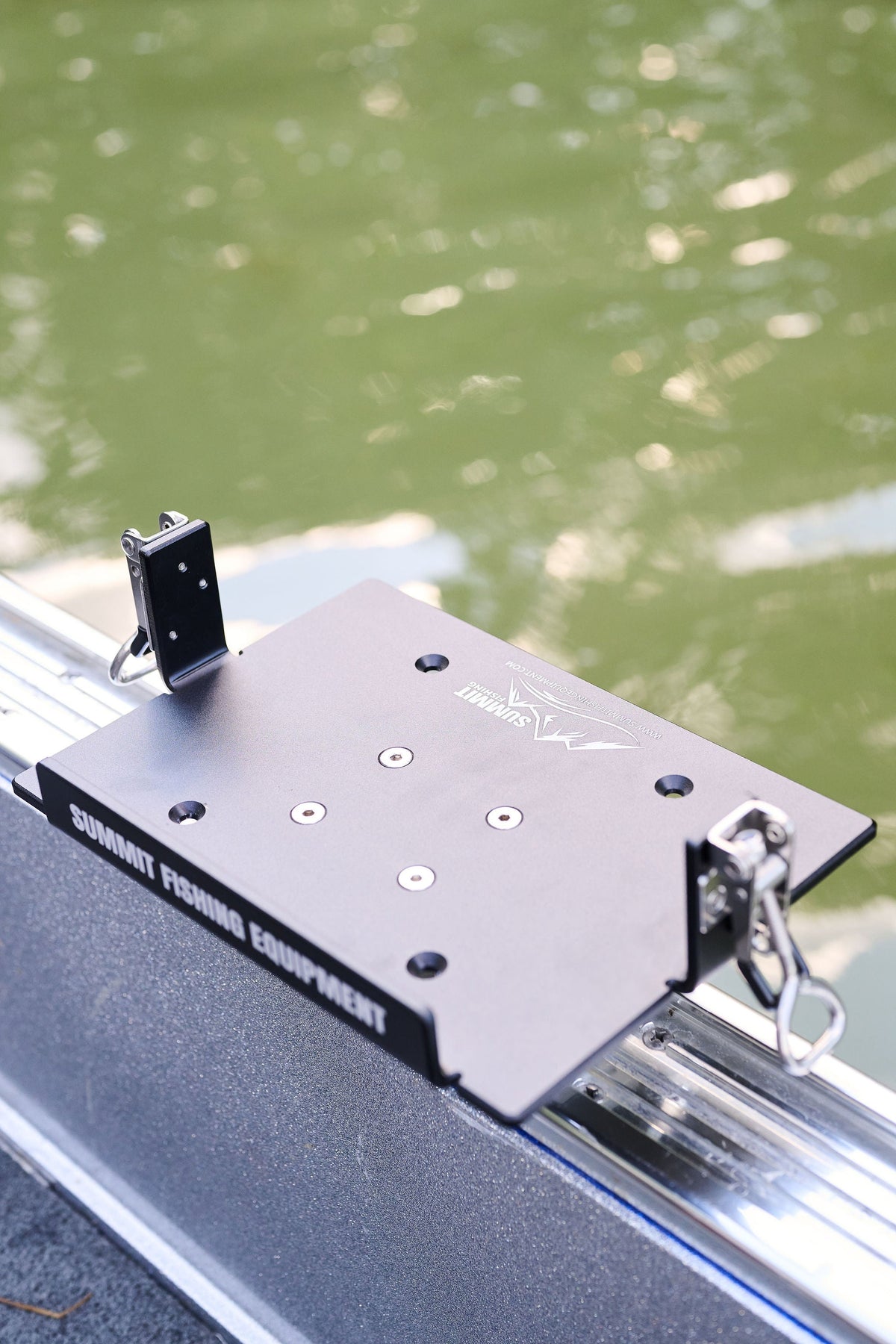

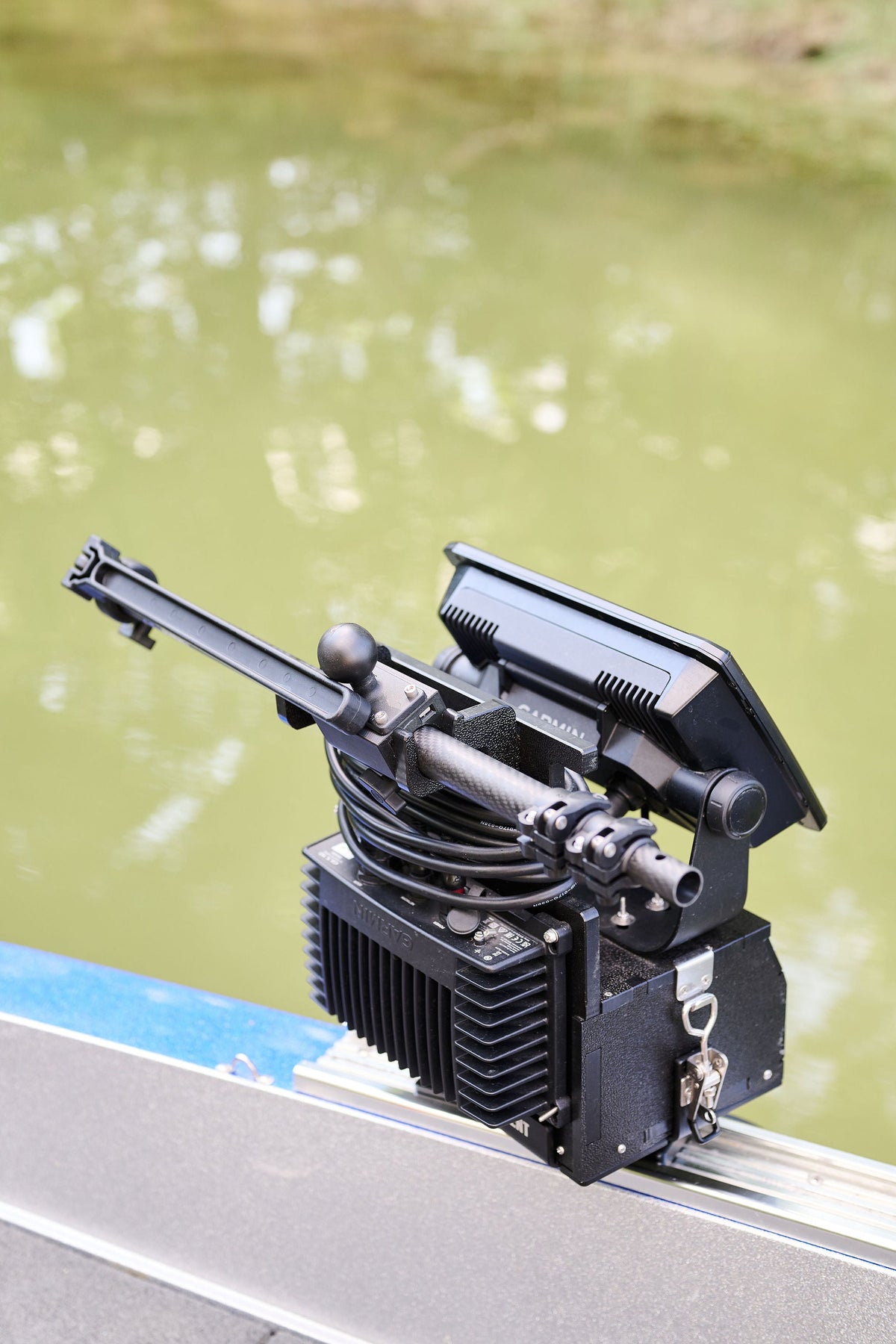

The Summit HD Shuttle Dock allows you to safely and securely mount your Summit shuttle to various surfaces. Made from 1/4" aluminum and featuring a full stainless latch and lock system, it includes two pre-drilled mounting patterns. HD shuttle inserts are included. We are proud to offer the Larmac 360 rotating track mount assembly, as well as pre-drilled holes for the Attwood seat base (Attwood SWIVL-EZE LakeSport 2-3/8" Seat Mount w/Friction Control 818440). Our custom upper latch hooks pull straight down on the top of the shuttle, while the lower 550lb-rated latches lock securely, engineered to withstand the toughest conditions.

Mounting Patterns:

• Larmac: 4 - 1/4" 82° countersunk holes, 1 3/4"x 2 1/4"
• Attwood: 4 - 5/16" 82° countersunk holes, 5"x5"

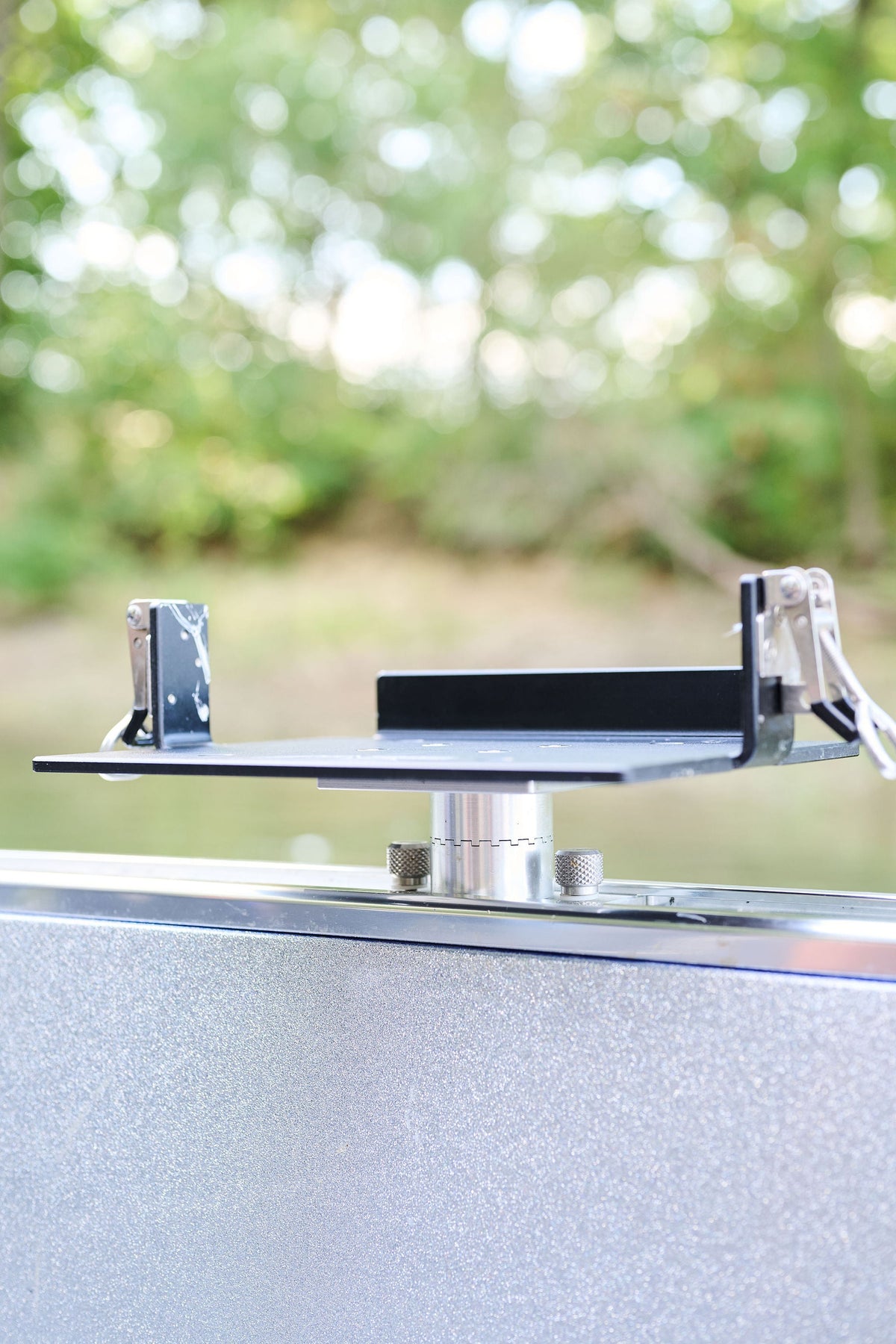

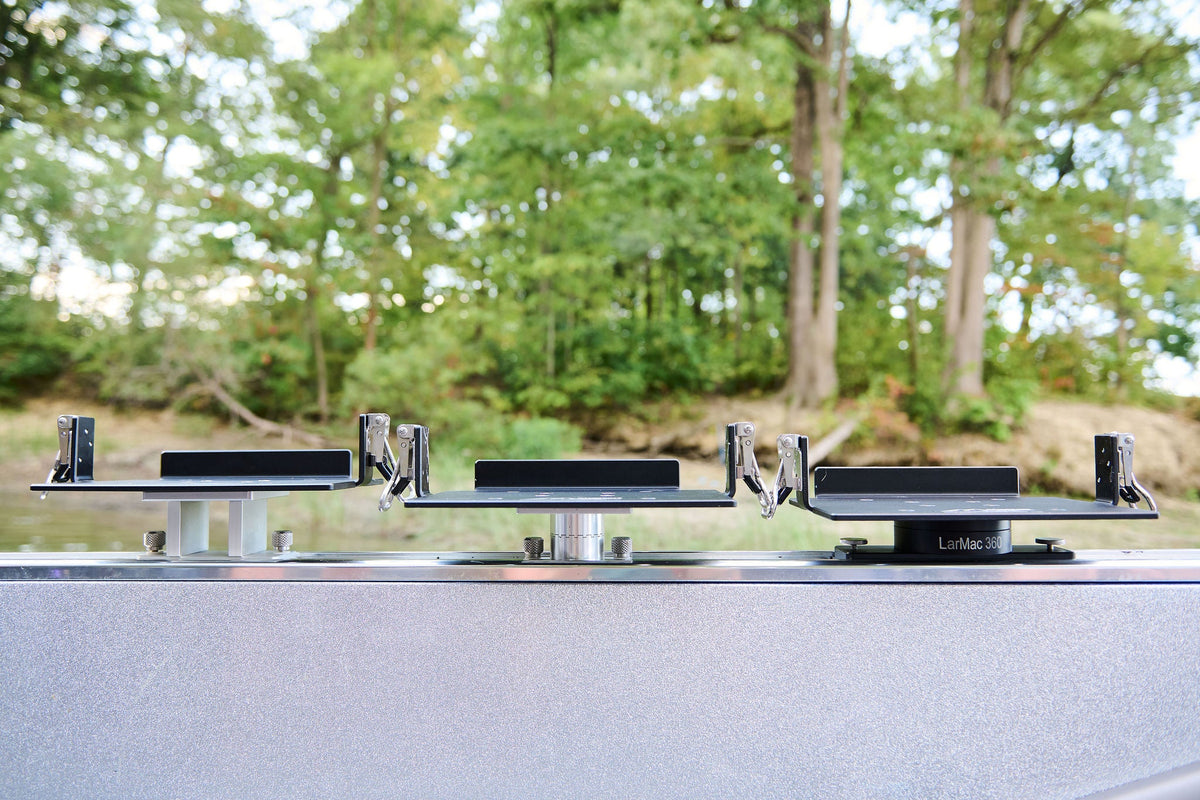

The Larmac 360 and Cisco Fishing Systems 360 allows for 360-degree rotation while mounting the Summit shuttle dock to a 3" track system (Traxtech, Berts, Cisco).

Cisco Stationary Track Mount Does NOT Rotate

Included with "Docking Plate System ONLY":

• Docking plate
• Side latches
• Upper latch hooks
• Shuttle installation hardware

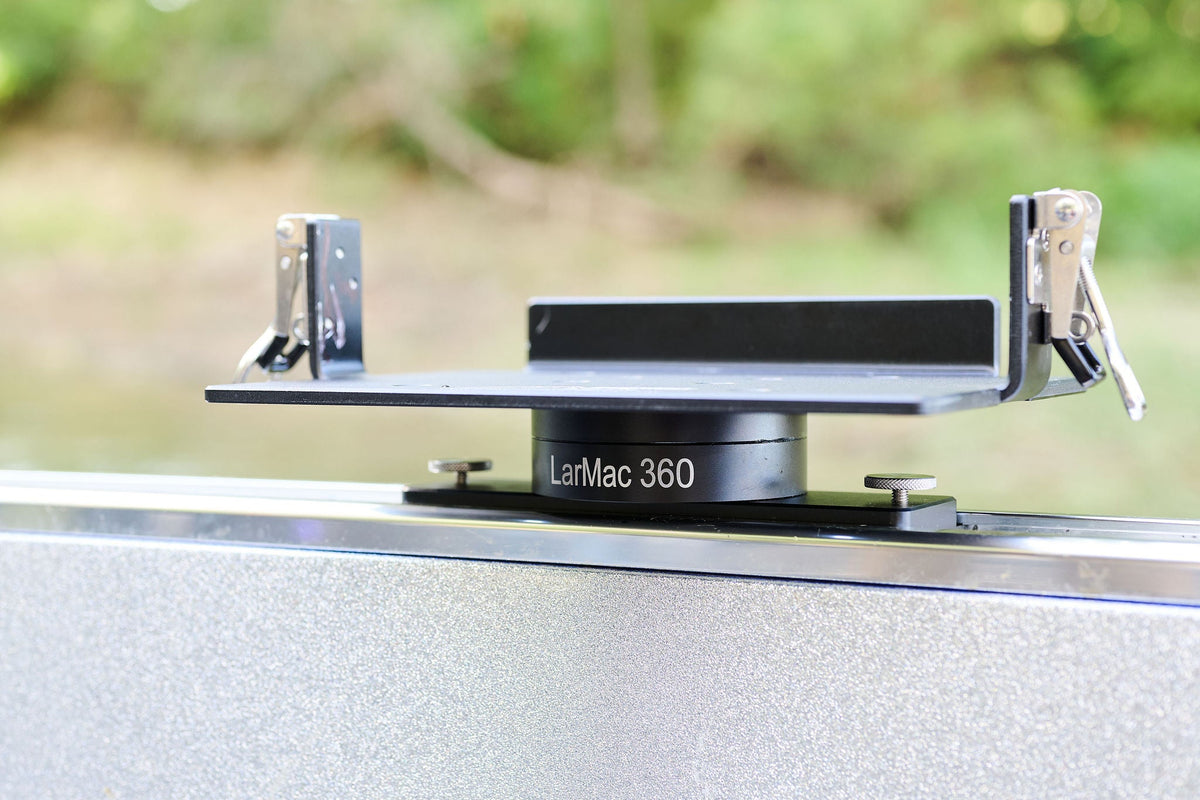

Included with "Docking Plate System WITH Larmac360":

• Docking plate
• Side latches
• Upper latch hooks
• Shuttle installation hardware
• Larmac360 mount and Larmac mounting hardware
• Base of the Mount is 8" Long
• 2" Tall

Included with "Docking Plate System WITH Cisco 360 Indexing Track Mount":

• Docking plate
• Side latches
• Upper latch hooks
• Shuttle installation hardware
• Cisco Fishing Systems 360 Indexing 3" Track Mount
• Base of the Mount is 4" Long
• 5" Inches Tall

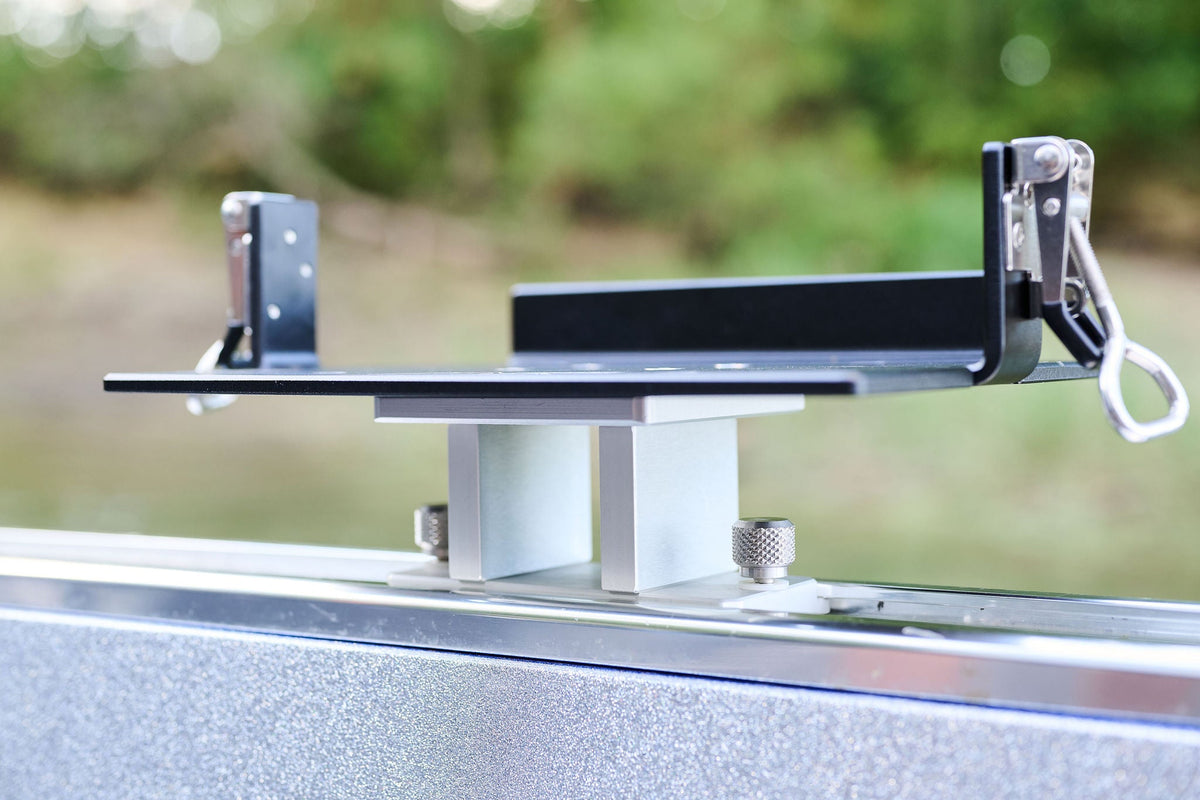

Included with "Docking Plate System WITH Cisco Stationary Track Mount":

CFS Stationary Track Mount Does NOT Rotate

• Docking plate
• Side latches
• Upper latch hooks
• Shuttle installation hardware
• Cisco Fishing Systems Stationary 3" Track Mount
• Base of the Mount is 5.25" Long
• 3" Tall

Note:

• Some assembly required: How to Hook Up Your Summit Docking System to Your Summit Shuttle
• Only items listed in the description are included
• HD Shuttle sold separately
• Mounting track not included
• Latch padlocks not included but recommended
• Docking Plate Dimensions are: LxW 10.5x7.5
