Coaxial Cable Video Amplifier, Coaxial Cable
- Regular Price
- $9.51
- Sale Price
- $9.51
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
Introduce:

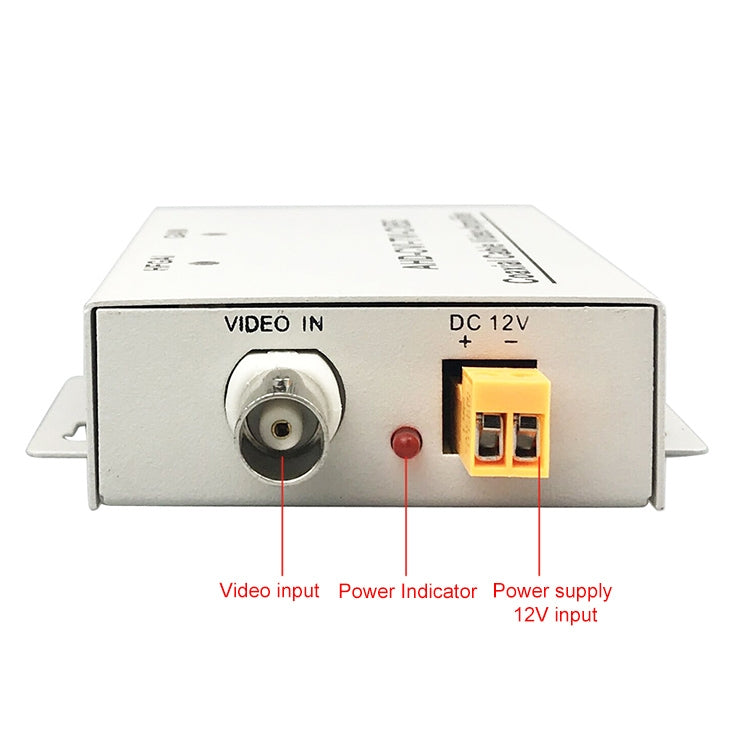

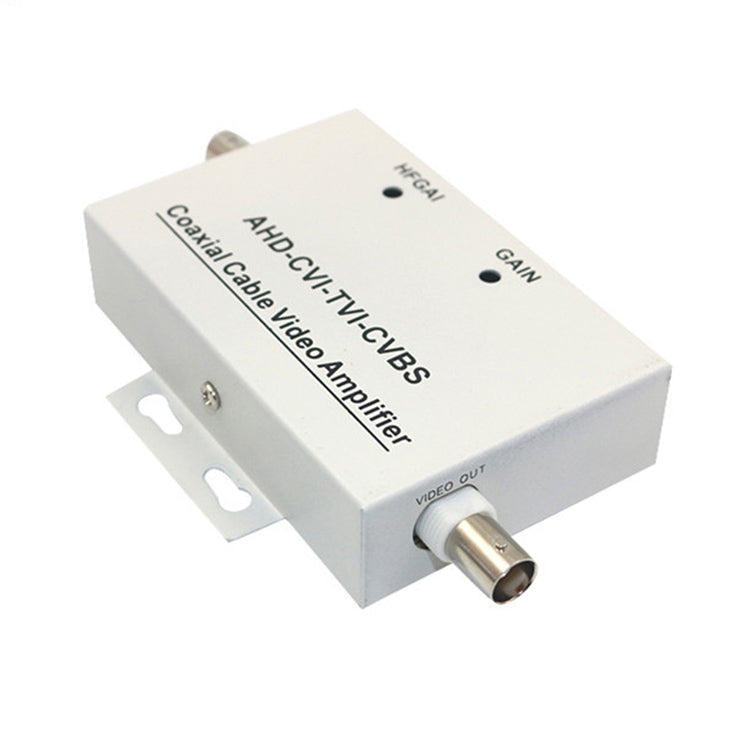

AD5301 is a video distribution amplifier, and can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distortior, and compatible with white / black and color video
Specification:
1) Input voltage: DC12V
2) Input / output load: 75ohm
3) Input connector: 1BNC
4) Output connector: 1BNC
5) Frequency response: adjustable
6) Bandwidth(-3db): 10Hz to 7.5MHz
7) Gain: adjustable and max up to 6dB
8) Max output video voltage: 2.5V
9) Temperature: -10 to 45°C
10) Humidity: max up to 90%
AD5301 is a video distribution amplifier, and can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distortior, and compatible with white / black and color video
Specification:
1) Input voltage: DC12V
2) Input / output load: 75ohm
3) Input connector: 1BNC
4) Output connector: 1BNC
5) Frequency response: adjustable
6) Bandwidth(-3db): 10Hz to 7.5MHz
7) Gain: adjustable and max up to 6dB
8) Max output video voltage: 2.5V
9) Temperature: -10 to 45°C
10) Humidity: max up to 90%
