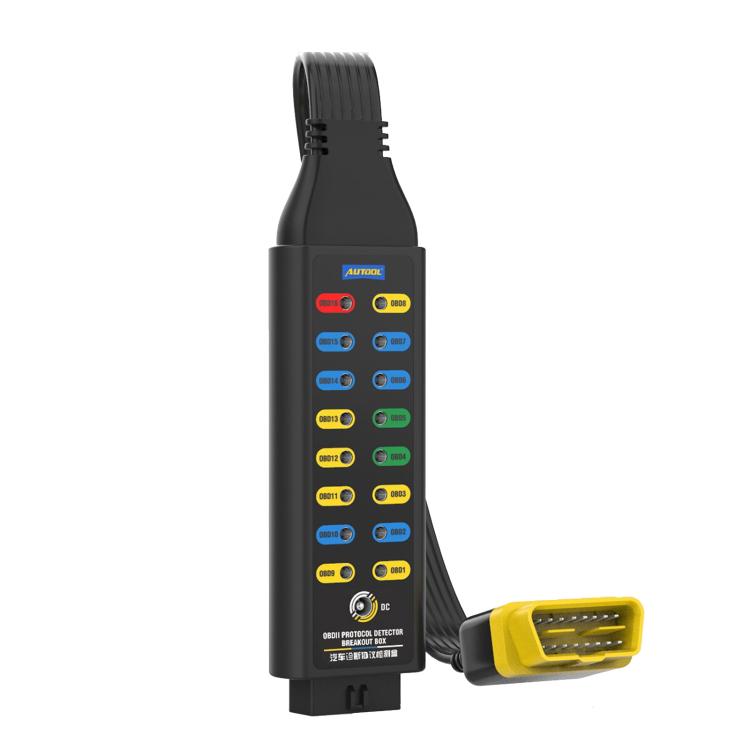

AUTOOL OBD2 Diagnostic Protocol Scanner Vehicle Power System Jumper Box, OBD2 Diagnostic Protocol Scanner
- Regular Price
- $31.82
- Sale Price
- $31.82
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full refund on unused items with tags, in undamaged original packaging. Return policy.

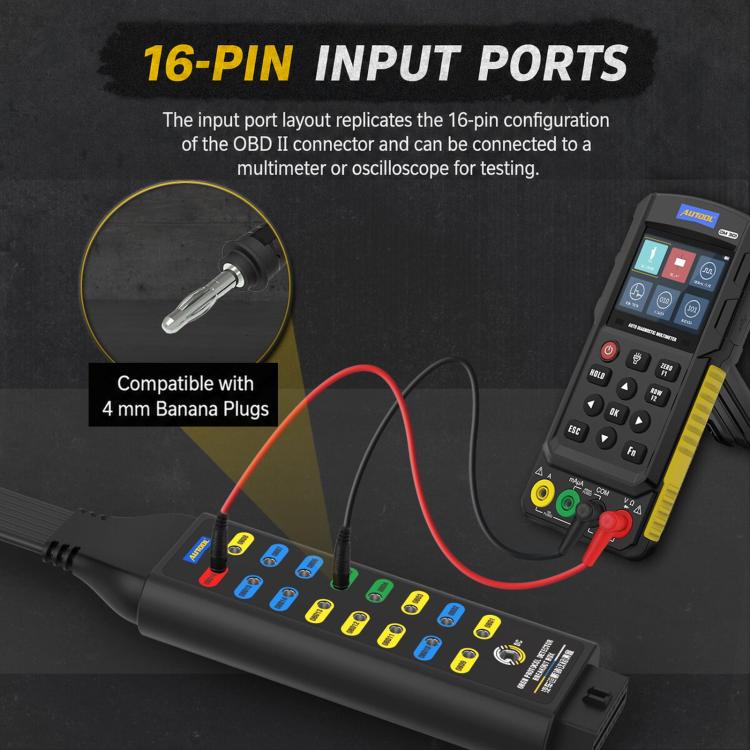

1. 16-pin input socket, the layout of the input socket mimics the 16-pin arrangement of the OBD2 interface, allowing for easy connection to a multimeter or oscilloscope for testing

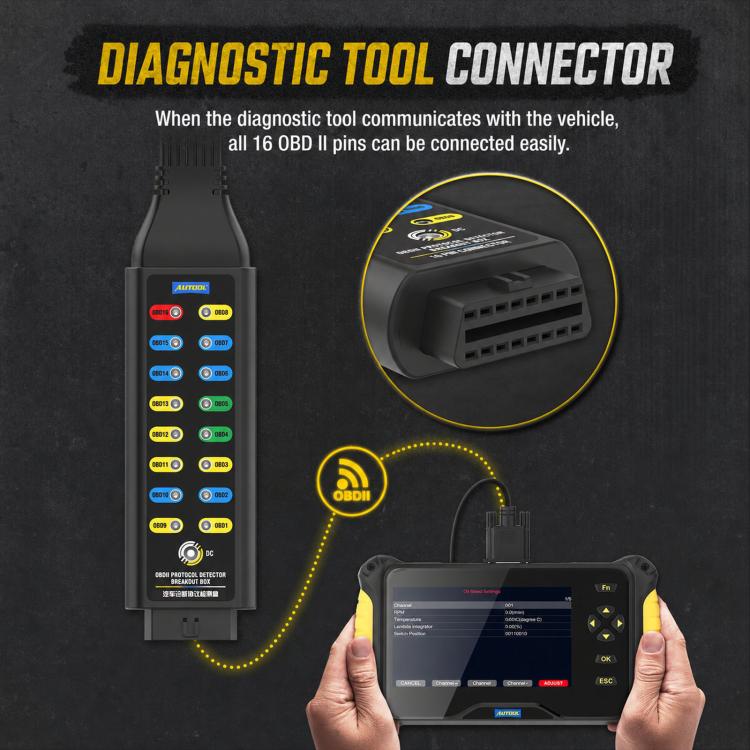

2. Diagnostic interface, when the diagnostic instrument communicates with the vehicle, it can easily connect to all 16 pins of the OBD2

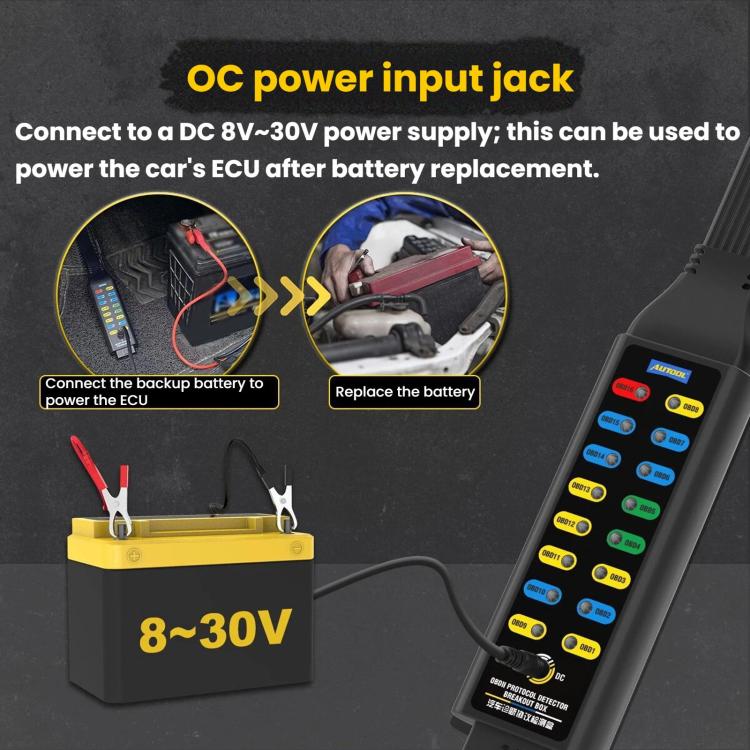

3. DC power input socket, connect a DC 8V-30V power supply, which can be used to power the vehicle ECU and then replace the battery

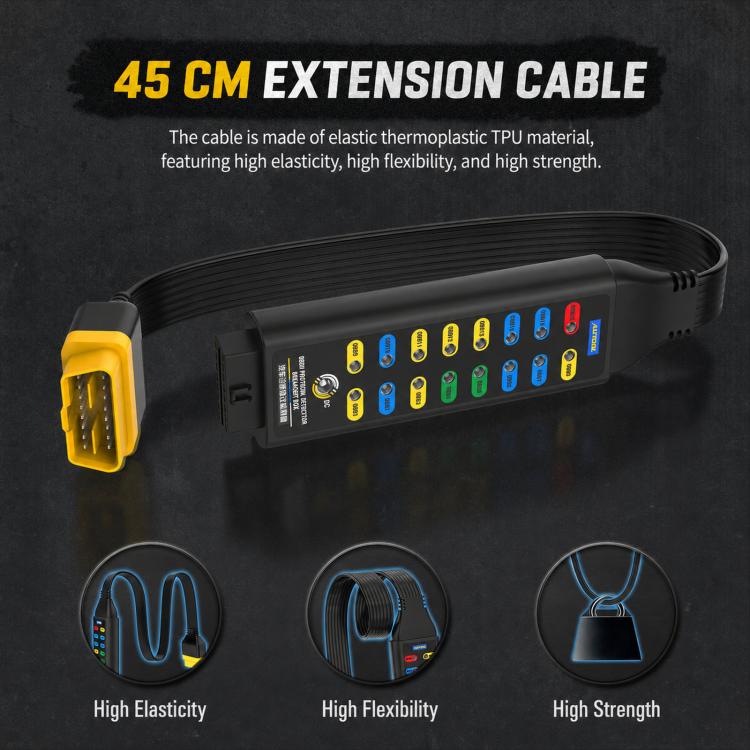

4. 45cm extension cable, made of elastic thermoplastic TPU material, featuring high elasticity, high flexibility, and high strength
5. Universal OBD2 male connector, compatible with all domestic fuel vehicles with OBD standard interfaces
Parameters

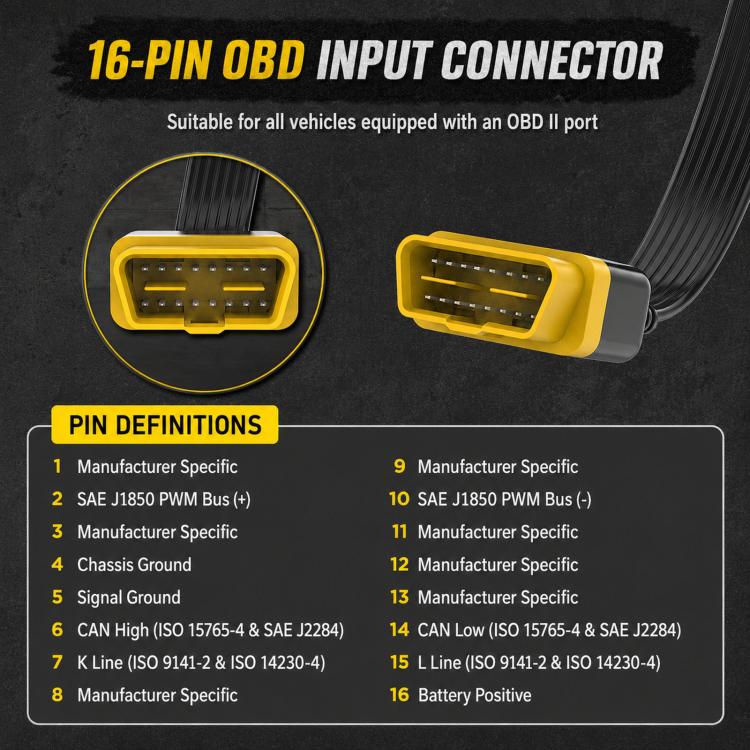

1. Diagnostic port: standard OBD2 16-pin interface
2. Working voltage: DC 8V - 30V
3. Rated load: 2.0A
4. Working temperature: -20℃ - 70℃
5. Wire material: elastomeric thermoplastic TPU

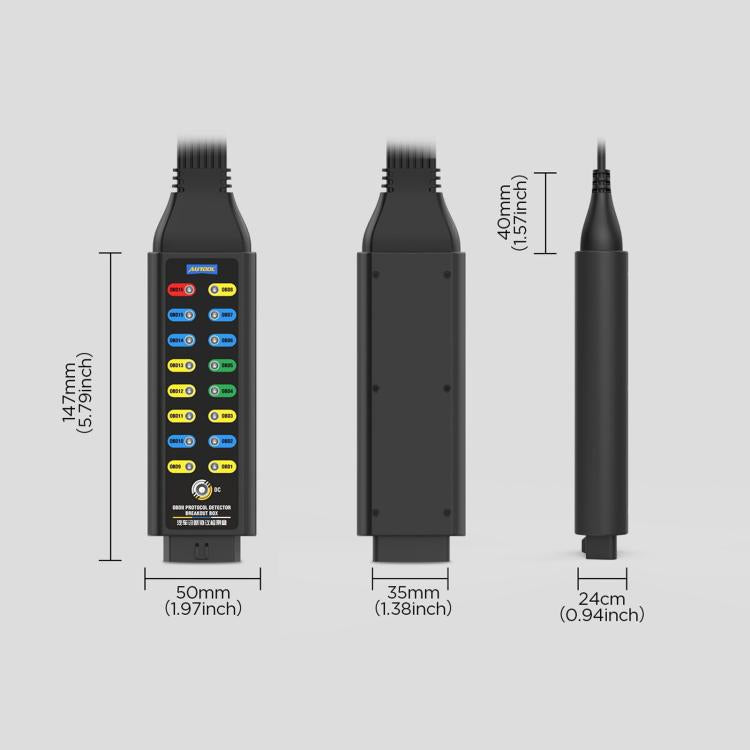

6. Total length of extension cable: 45cm
