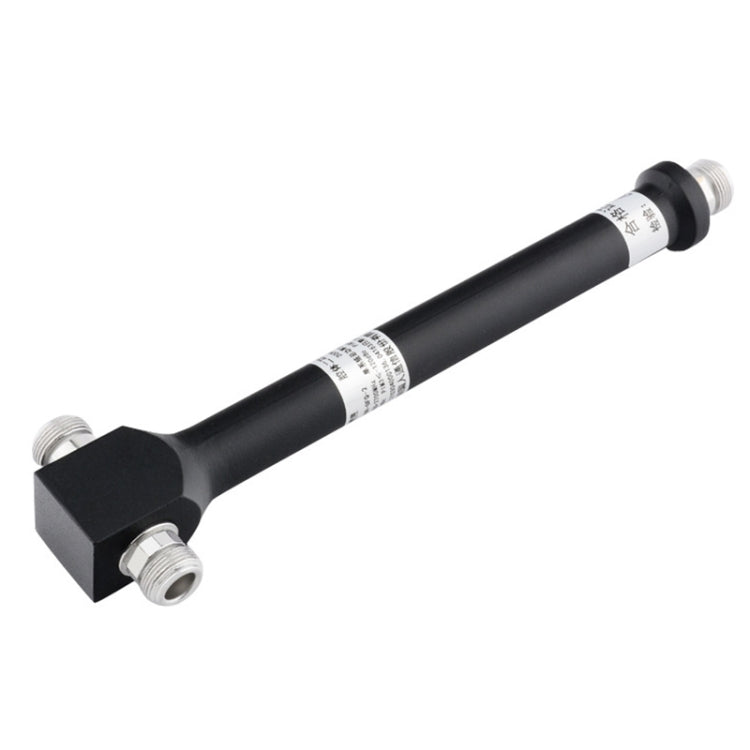

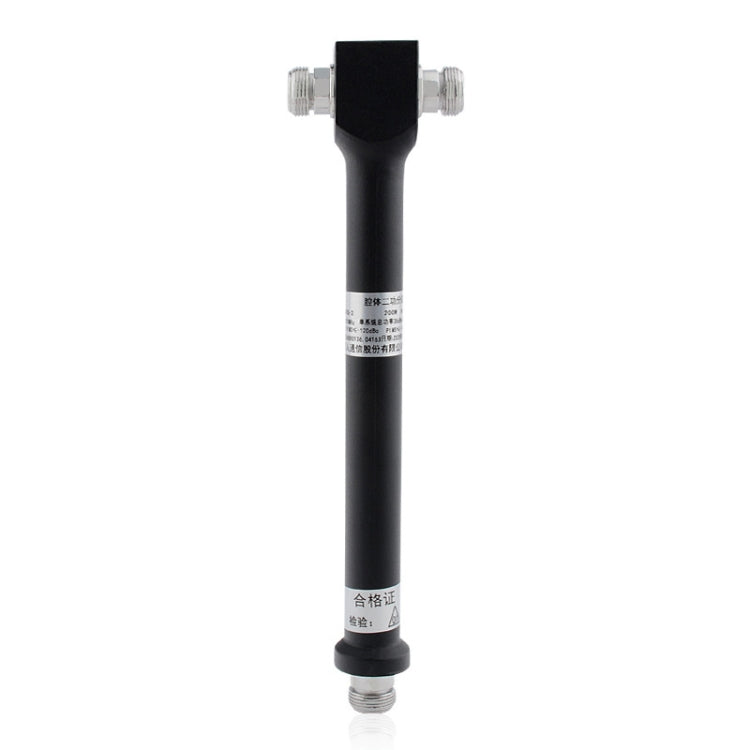

800-2500MHz 2 Way Cavity RF Power Splitter/Power Divider, ST-MR02BLC
- Regular Price
- $2.42
- Sale Price
- $2.42
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
1) Using micro strip structures, in-band flatness is good, high isolation, insertion loss is small, Standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
* Electrical Specifications:
1) Type: 2-way Cavity Power Divider
2) Frequency: 800 ~ 2500MHz
3) Insertion loss(distribution ratio)-db:<=3.1DB
4) Isolation (dB): <=27
5) Nominal Impedance: 50 Ohm
6) VSWR: 1:1.2
7) Max. Power(MAX)(W) :50

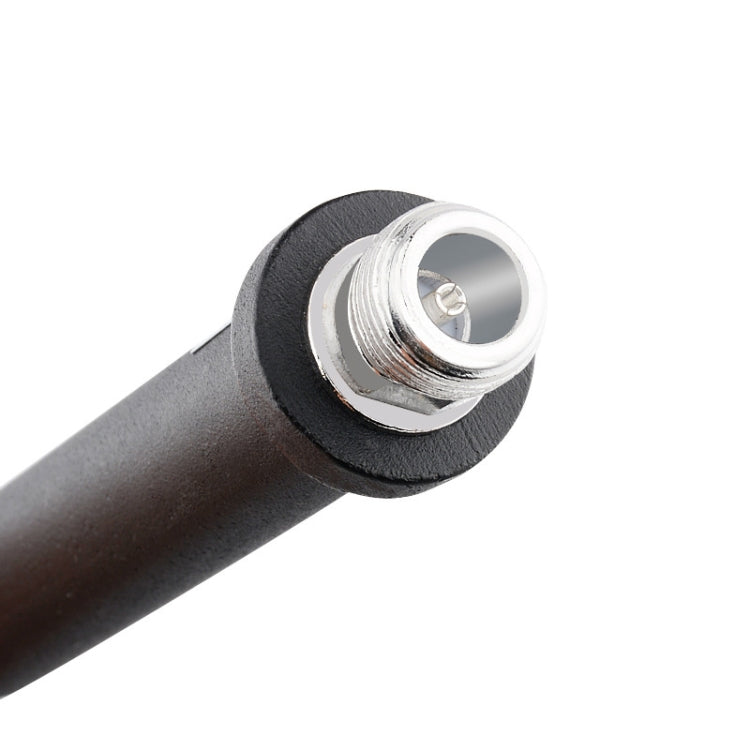

8) Connector: N female
* Mechanical Characteristics:
1) Environment temperature:-25~+55 Degree C
2) Relative humidity: 5~95%
3) Size: 210mm X 58mm x 24mm
4) Weight: 129g
* Electrical Specifications:
1) Type: 2-way Cavity Power Divider
2) Frequency: 800 ~ 2500MHz
3) Insertion loss(distribution ratio)-db:<=3.1DB
4) Isolation (dB): <=27
5) Nominal Impedance: 50 Ohm
6) VSWR: 1:1.2
7) Max. Power(MAX)(W) :50
8) Connector: N female
* Mechanical Characteristics:
1) Environment temperature:-25~+55 Degree C
2) Relative humidity: 5~95%
3) Size: 210mm X 58mm x 24mm
4) Weight: 129g
Specification:
