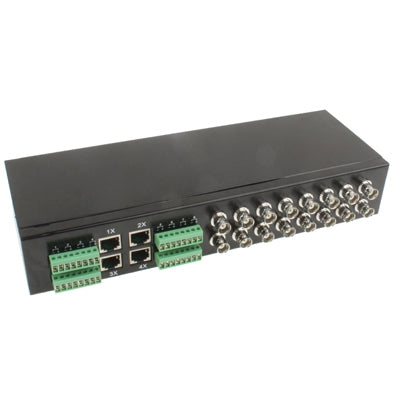

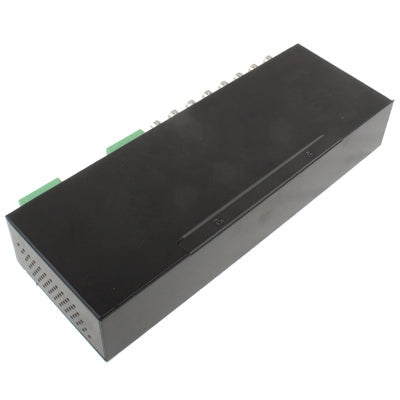

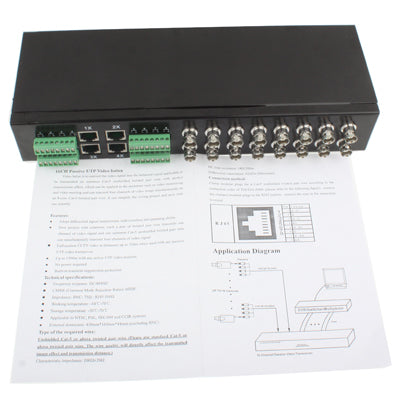

16CH Passive UTP Video Transceiver Rack Mount Style for CCTV
- Regular Price
- $31.99
- Sale Price
- $31.99
- Regular Price
Sold Out
- Unit Price
- per
Best Price Promise
Found an eligible lower retail price? We'll match it.
60-Day Returns
Full product refund on unused items. Return policy.
Product Details:
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
1) 16ch passive video receiver, metal case
2) Video transmission via UTP CAT5 cable.
3) 10-20% wire costs saved.
4) Full-motion CCTV Video at distances up to 330m.
5) Outstanding interference rejection and transient protection
6) Up to 1500m with any active UTP video receiver
7) No power required
Technical Specifications:
1) Frequency response: DC-8MHz
2) CMRR (Common Mode Rejection Ratio): 60dB
3) Impedance: BNC: 75Ω; RJ45: 100Ω
4) Working temperature: -10°C ~ 70°C
5) Storage temperature: -30°C ~ 70°C
6) Applicable to NTSC, PAL, SECAM and CCIR systems
7) Characteristic impedance: 100 Ω ± 20 Ω
8) DC loop resistance:18 Ω/100m
9) Differential capacitance:62pf/m (Maximum)
10) Size: 28.5x11.5x5cm
Specification:
